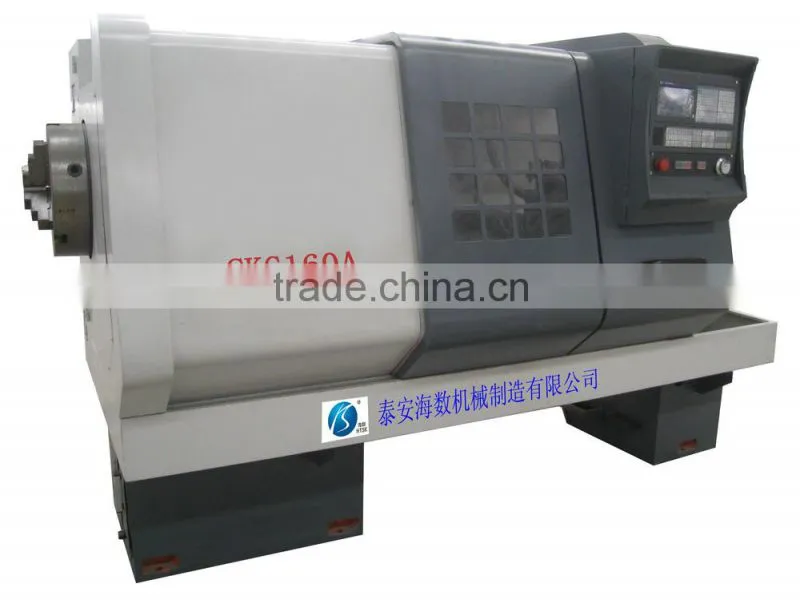

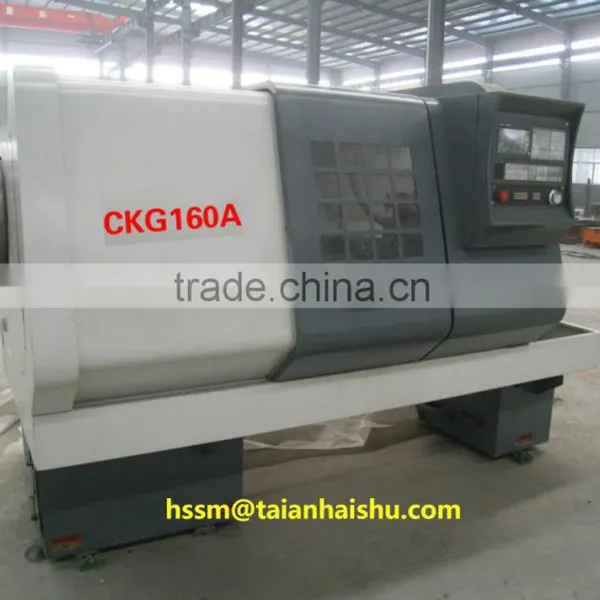

stainless steel tube polishing machine CKG160A CNC tube threading lathe
CNC pipe thread lathe specification
Item |
Unit |
specification |
CKG160A | ||
Max swing diameter |
mm |
625 |
Maximum turning length |
mm |
1000 |
Maximum processing outside diameter of pipe |
mm |
157 |
Spindle bore |
mm |
160 |
Number of spindle speeds |
Servo stepless speed change |
|
×/Z Servo motor torque |
N.m |
4/6 |

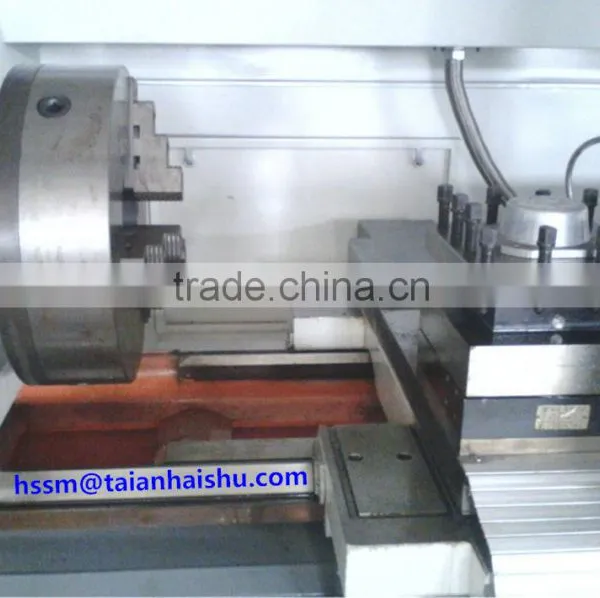

Chuck form |
Three-jaw chuck φ400mm |
|
Turret form |
Four-station ,Vertical |
|
×/Z Rapid traverse |
m/min |
4/4 |
Tailstock quill diameter |
mm |
75 |
Tailstock quill stroke |
mm |
150 |
Tailstock sleeve taper |
MT5 |
|
Spindle center to the height of the rail |
mm |
320 |
Main motor |
7.5KW(Servo motor),0-3000rpm |
|
Rail width |
mm |
490 |
Machine weight |
Kg |
3200 |
|
Machine outline size (L × W× H) |
mm |
2650×1550×1700 |

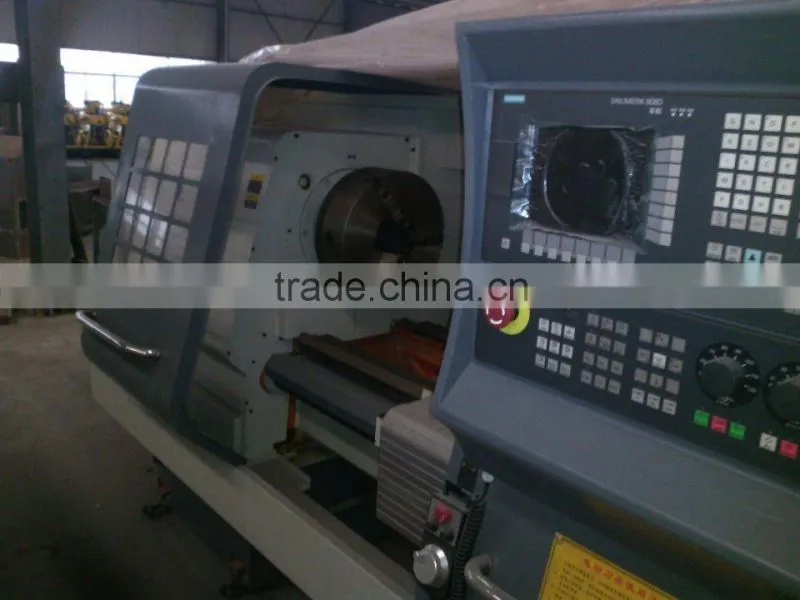

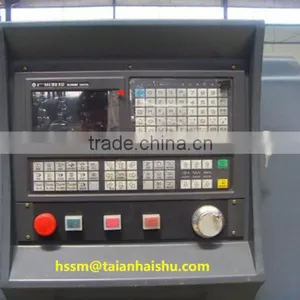

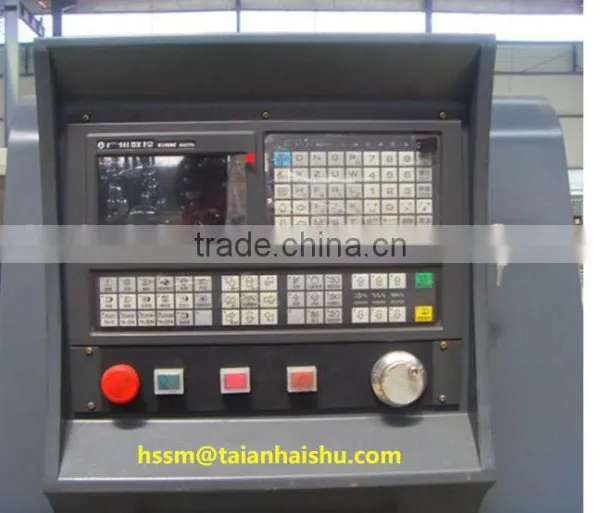

CNC system |
mm |
GSK980TA |
Standard configuration:
1,CNC system:Siemens808D,GSK980TA,KND1000Ci,
2,Manual chuck.
3,Manual tailstock.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine.
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in stainless steel tube polishing machine CKG160A CNC tube threading lathe, welcome to leave a message or send the inquiry to understand the details of machine.
