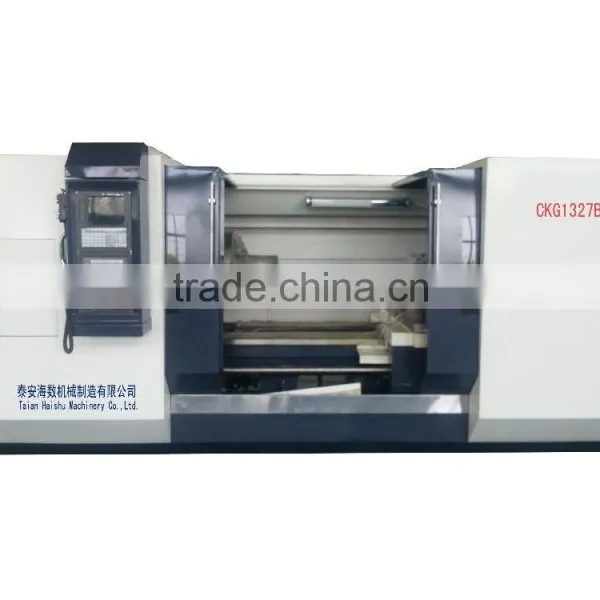

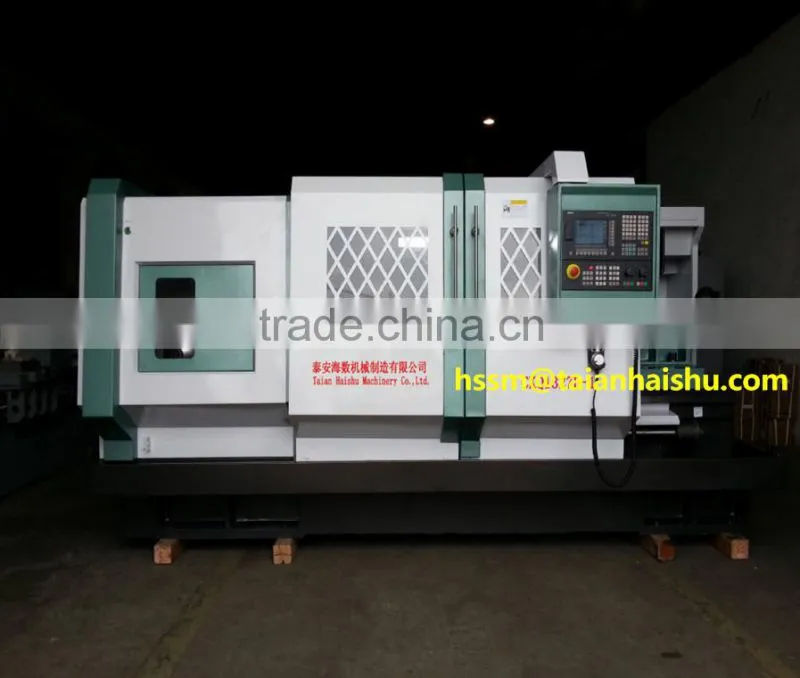

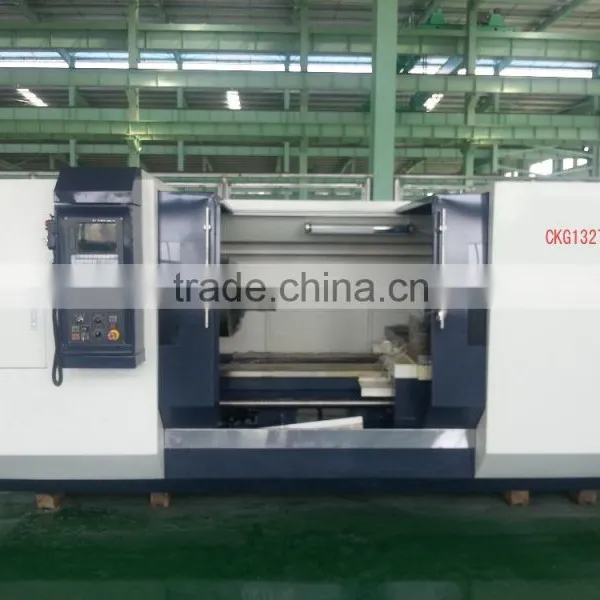

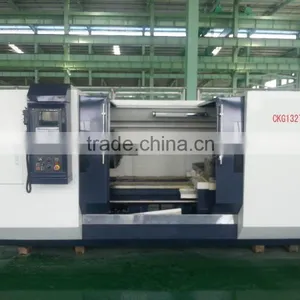

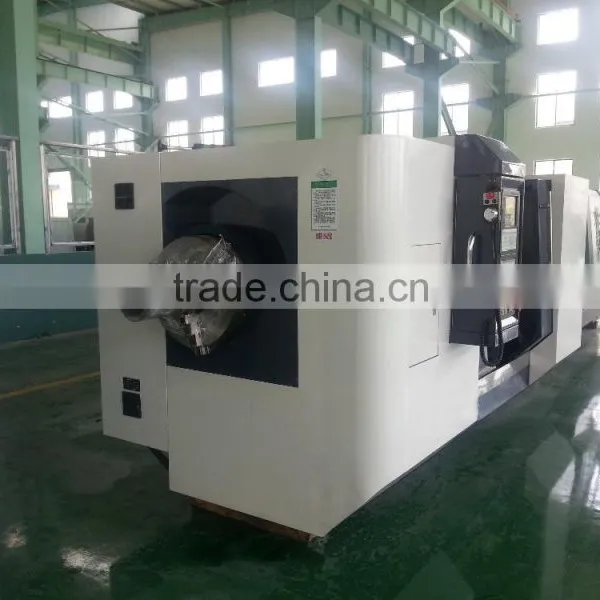

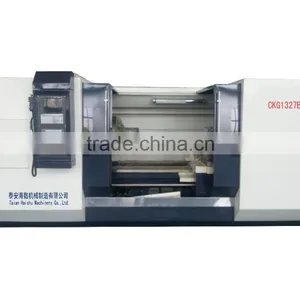

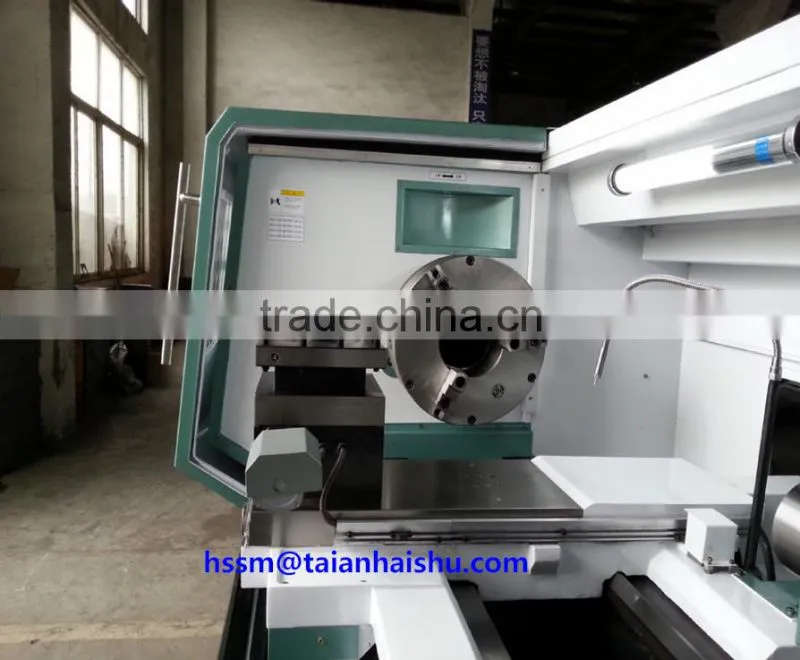

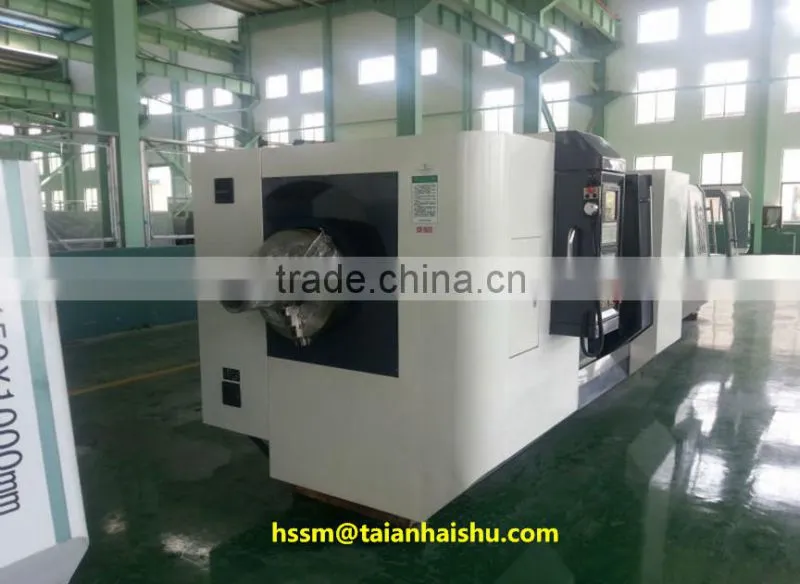

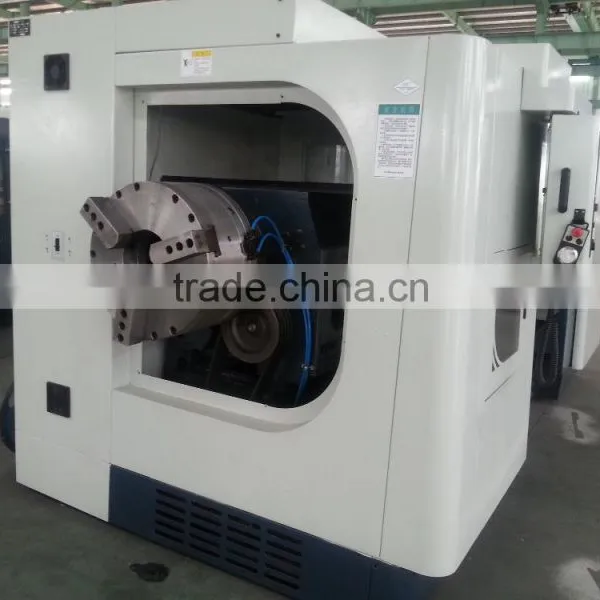

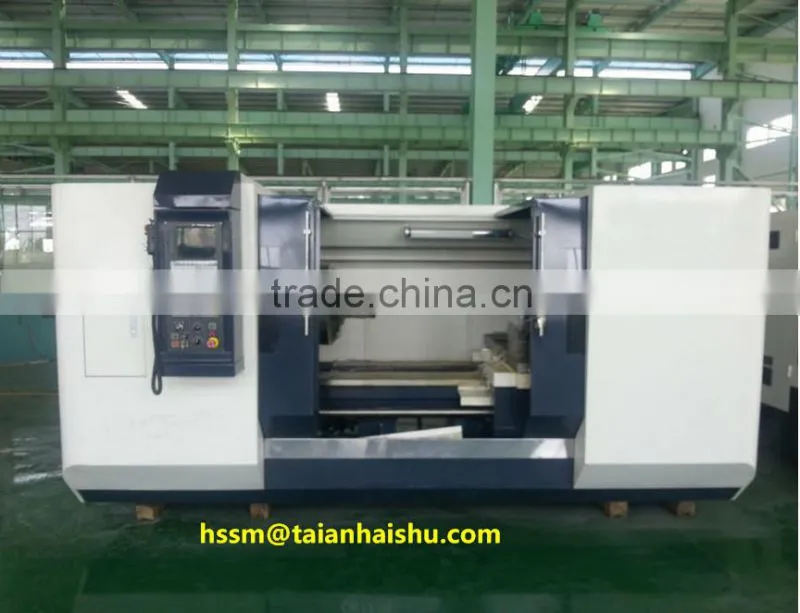

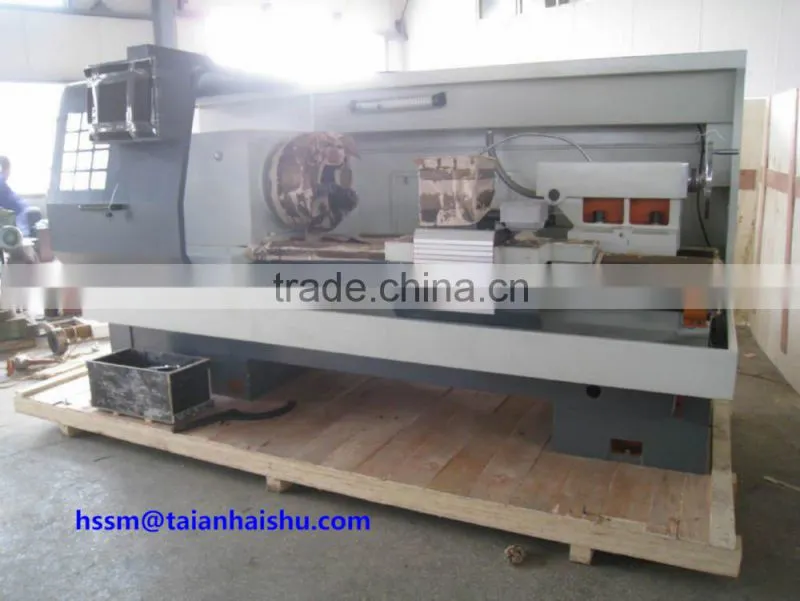

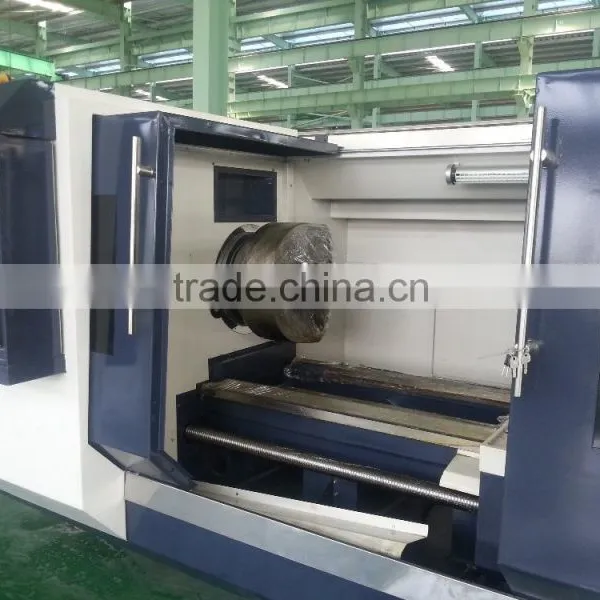

tube threading machine CKG1327B-1 CNC Oil Country Pipe threading lathe
machine technical parameter:
No |
Item |
Unit |
Specification |
CKG1327B-1 | |||
1 |
Max. swing over bed |
mm |
800 |
2 |
Max. swing over carriage |
mm |
480 |
3 |
Max. length of work piece |
mm |
1500/3000 |
4 |
Bed guideway span |
mm |
660 |
5 |
Main transmission form |
Three level mechanical transmission,conversion stepless speed |
|
6 |
Range of spindle speed |
rpm |
18~450 |
7 |
Spindle bore |
mm |
280 |
8 |
Main motor power |
KW |
15 |
9 |
Max. travel of turret |
mm |
X:480 Z:1520 |
10 |
Fast moving speed |
mm/min |
X:4000 Z:5000 |
11 |
Feed positioning accuracy |
mm |
0.032 |
12 |
Feed repetitive positioning accuracy |
mm |
0.011 |
13 |
Workpiece processing precision |
IT6 |
|
14 |
Workpiece surface roughness |
Ra 1.6 |
|
15 |
Tailstock sleeve diameter |
mm |
100 |
16 |
Tailstock sleeve stroke |
mm |
300 |
18 |
Tailstock sleeve taper |
MT6 |
|
19 |
Turret repetitive positioning accuracy |
mm |
0.01 |
20 |
Cutter bar section |
mm |
40×40 |
21 |
Servo motor |
N.m |
X:15 Z:23 |
22 |
Overall dimensions(L*W*H) |
mm |
3700*1800*1760 |
23 |
Net weight |
Kg |
5000 |
Standard configuration |
Select configuration |
|
1, CNC system: GSK980. 2, Electric turret: vertical four station electric turret. 3,3 jaw manual chuck 4, Automatic lubrication system, Cooling system,Linghten system 5,Standard tools 6,Unit packing list |
1, CNC system: Beijing KND, Japan FANUC, Germany SIEMENS. 2, Electric turret: horizontal 8 station electric turret. 3, Cradle. |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
If you are interested in tube threading machine CKG1327B-1 CNC Oil Country Pipe threading lathe, welcome to leave a message or send the inquiry to understand the details of machine.
