Large Oil and Gas Pipelines and Processing Pipe Thread Lathe CKG1322A
US$ 20,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Pipe Threading Lathe ThreadUS$ 20,000 - 30,000MOQ: 1 Set -
Processing Oil Pipeline Pipe Thread Lathe CKG1322AUS$ 20,000 - 40,000MOQ: 1 Set
-
Tube Threading CKG1335E Large Diameter Pipe Threading Machines/electric Pipe Threading MachineUS$ 38,000 - 72,000MOQ: 1 Set
-
Tube Threading Lathe CKG1327E Large Diameter Pipe Threading Machines/electric Pipe Threading MachineUS$ 38,000 - 72,000MOQ: 1 Set
-
Tube Threading Lathe CKG1319E CKG(E) Series Electric Pipe Threading MachineUS$ 31,000 - 32,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
630mm
Place of Origin
Shandong, China
Brand Name
HaiShu
Model Number
CKG1322A
Voltage
220V/380V
Power(W)
11KW
Dimension(L*W*H)
3600*1750*1900
Weight
5500kg

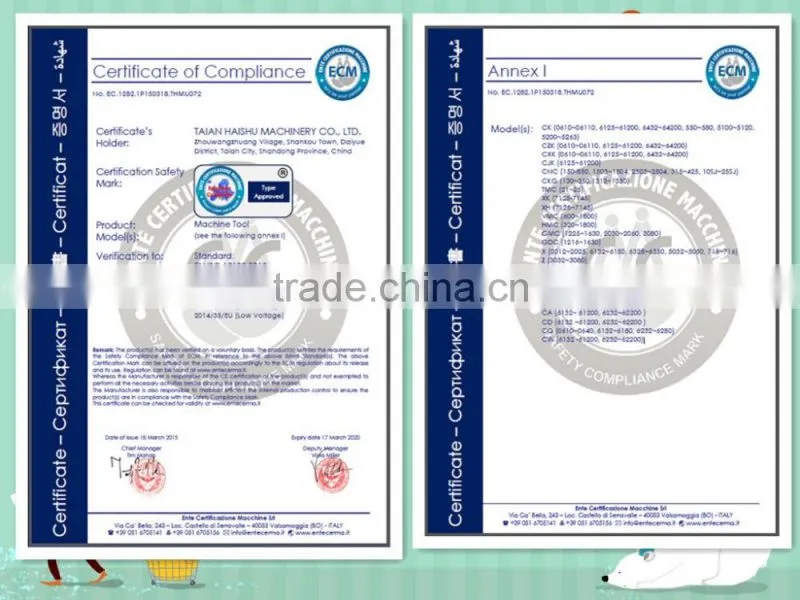

Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
CKG1322ACNC pipe thread lathe
Term |
Unit |
Specification |
Lathe Max swing diameter |
mm |
φ630 |
Maximum turning length |
mm |
1000 |
Maximum processing outside diameter of pipe |
mm |
φ219 |
Spindle bore |
mm |
φ225 |
Number of spindle speeds |
|
Servo Promise |
X/ZServo motor torque |
N.m |
10/15 |
Chuck form |
|
Three-jaw chuck |
Chuck diameter |
mm |
φ500 |
Turret form |
|
Four-station ,Vertical |
Tool section size |
mm |
32×32 |
X/ZRapid traverse |
m/min |
3/3 |
Tailstock quill diameter |
mm |
φ100 |
Tailstock quill stroke |
mm |
250 |
Tailstock sleeve taper |
|
MT5 |
Spindle center to the height of the rail |
mm |
315 |
Main motor |
|
Servo motor 11KW 3000r/min |
Machine weight |
Kg |
5500 |
Machine outline size (L × W× H) |
mm |
3600*1750*1900 |
CNC system |
|
KND100Ti/GSK980TA(Optional) |
