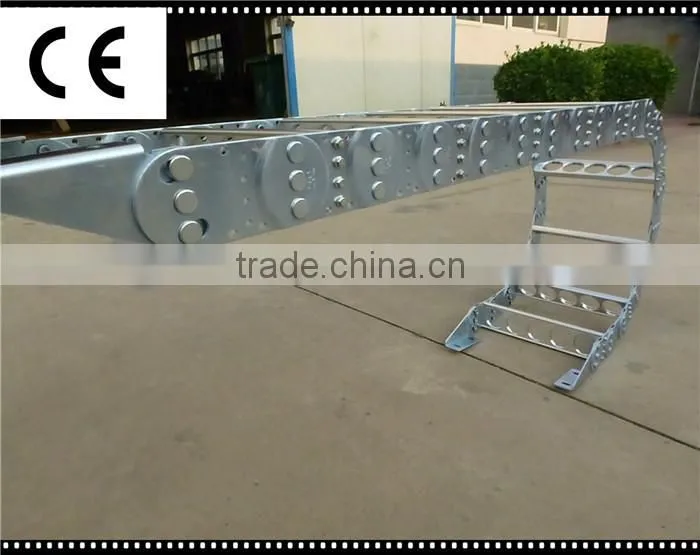

RUIAO brand : TL or TLG hose carrier track steel cable carrier chain
Principle for selecting steel cable carrier
- inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
- inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
- radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Order sample of steel cable carrier :
1.Inside H*W,
2.Bending raduis,
3. Length,
4.Frame type
|
Pitch |
Bending radius . |
Height of drag chain |
Max hole diameter |
Length |
Non-support range |
TL30 |
30 |
40 |
25 |
10 |
By user |
3 |
TL45 |
45 |
50 75 90 114 145 |
32 |
|
4 |
|
TL65 |
65 |
75 90 115 125 145 185 |
44 |
30 |
5 |
|
TL80 |
80 |
100 115 125 145 185 200 250 300 |
56 |
35 |
8 |
|
TL95 |
95 |
115 145 200 250 300 |
70 |
48 |
9 |
|
TL115 |
115 |
145 200 225 250 300 350 |
86 |
63 |
10 |
|
TL125 |
125 |
200 250 300 350 470 500 700 750 |
100 |
68 |
10 |
|
TL155 |
155 |
200 250 300 350 450 500 600 |
120 |
97 |
10 |
|
TL180 |
180 |
250 300 350 450 490 600 650 |
144 |
110 |
10 |
|
TL225 |
225 |
400 450 600 750 800 850 1000 |
200 |
146 |
12 |
|
TL250 |
250 |
400 450 500 600 750 800 1000 |
220 |
166 |
14 |

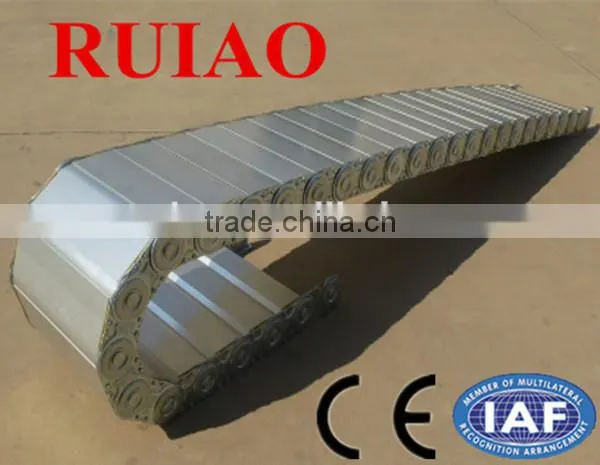

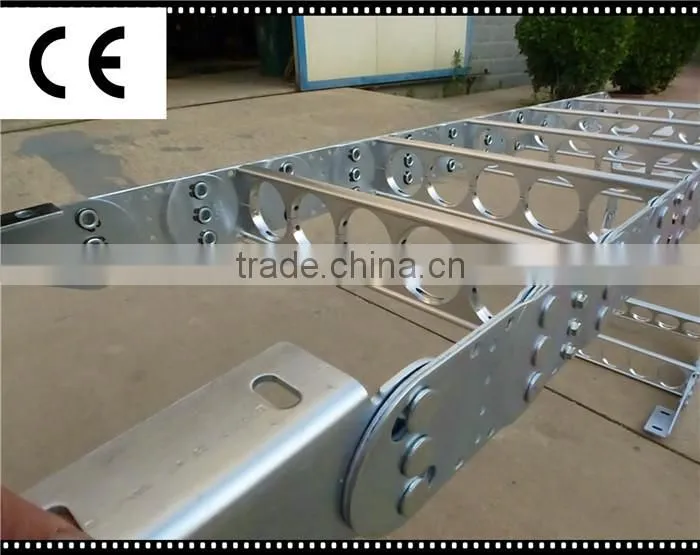

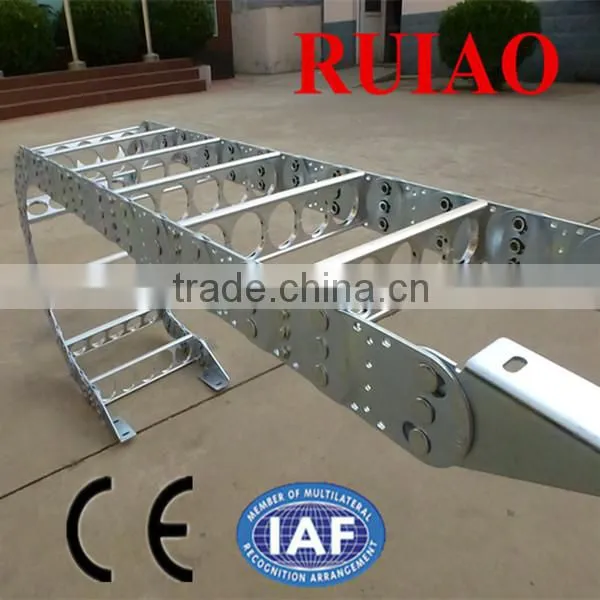

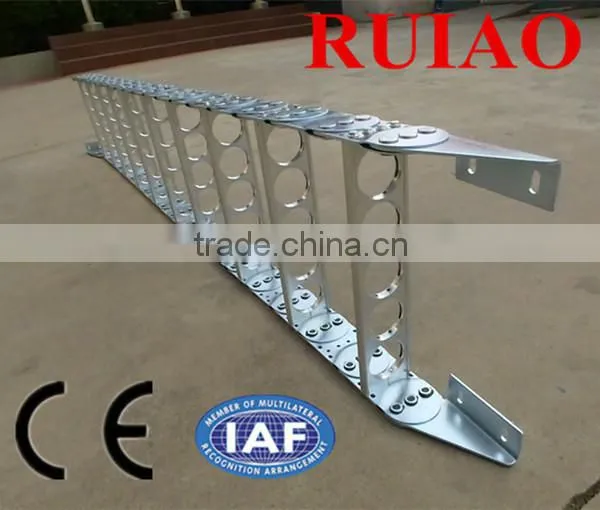

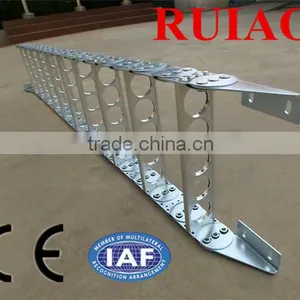

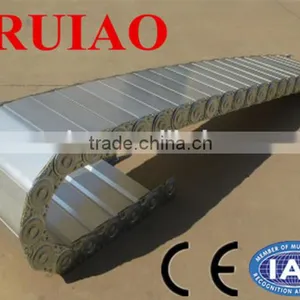

Steel flexible chain includes TL type and TLG type,the material is carbon steel side plate and aluminium alloy isolation plate (assembled by the two ).they are mainly used to protect the pipes and wire of heavy huge machinery and equipment.

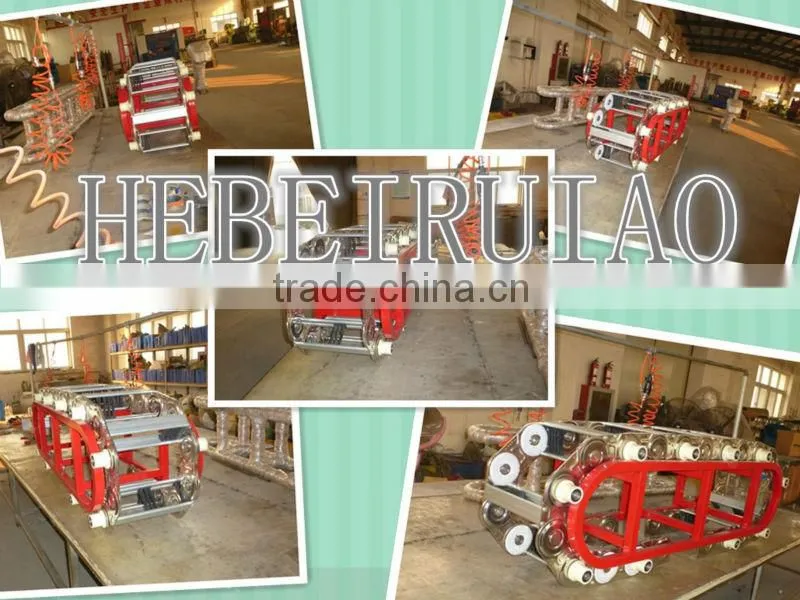

photoes showcase :

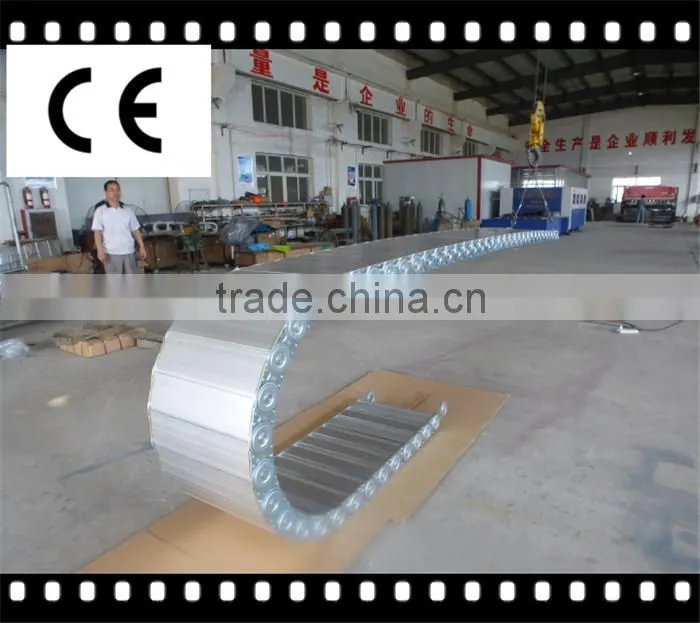

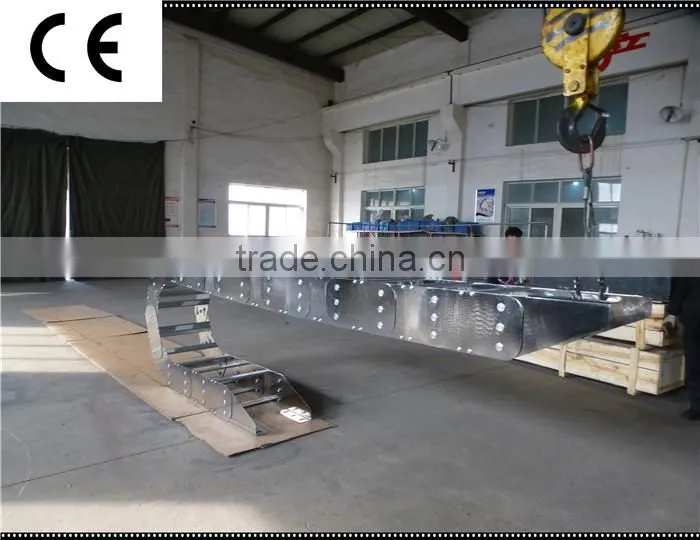

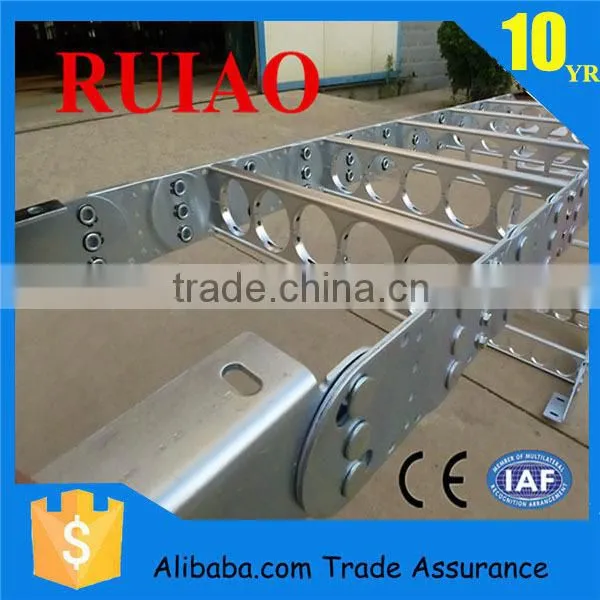

our large size steel cable drag chain has widely used for automation systoms abroad !

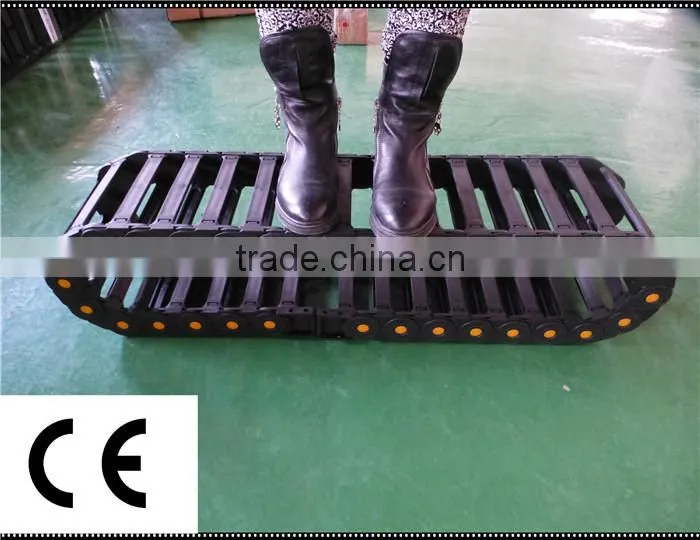

our hot sale plastic material cable drag chain , if you are interested in this type , pls click the following photo , then to the right related page :
located at this booming industrial estate,we have the advantage to massive manufacture ,welcome to visit our plant, RUIAO is just here waiting for you~
Careful packaging, ensure the cable drag chain well arrived in your hands~~
(1) carton box
(2) wooden case
dear , if you are interested in our products , pls feel free to contact me by inquiry . here i will reply you within one hour as soon as getting your inquiry information .
