Plastic Weight Bearing Cnc Cable Carrier Energy Chain

US$ 3.28 - 88.66 MOQ: 1 Meter

Key Specifications

Material:

reinforced nylon

Brand:

RUIAO

Model:

From 7*7 to 80*300

Hebei Ruiao Machine Tool Accessories Producing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Material reinforced nylon

Brand RUIAO

Model From 7*7 to 80*300

plastic weight bearing cnc cable carrier energy chain

Product Description

Principle for selecting cnc energy chain

inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin

Basic parameters of cnc cable wire track

Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance
Resistances:It is oil and salt resistant.
operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)

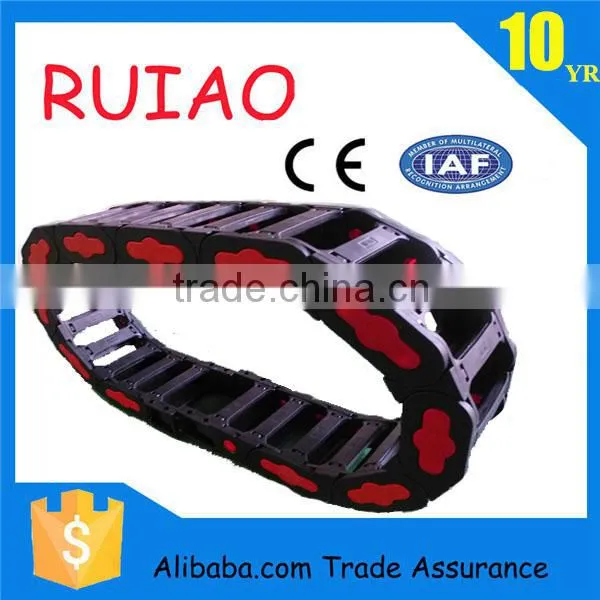

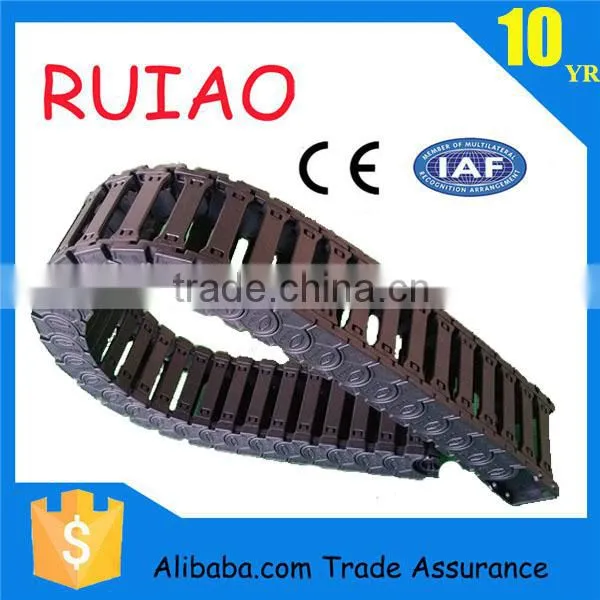

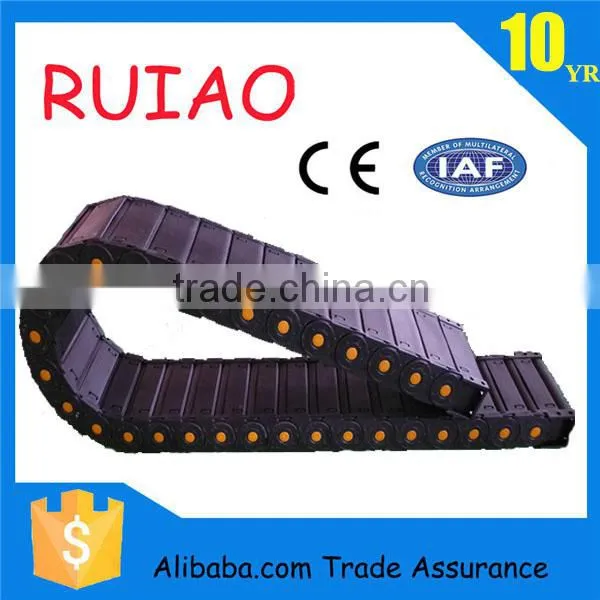

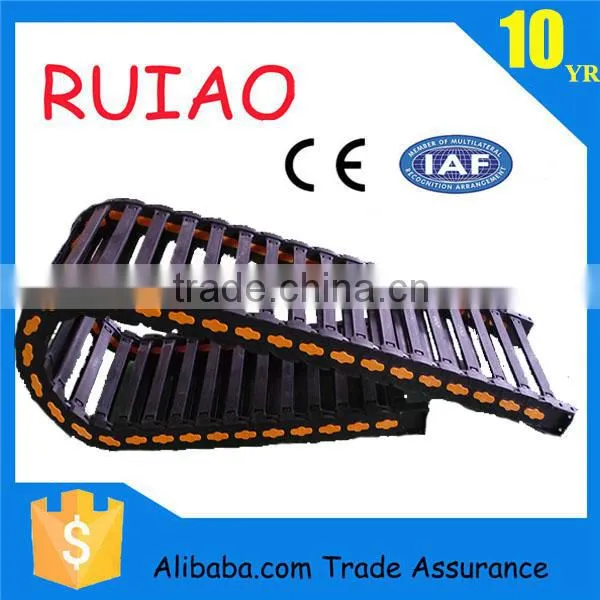

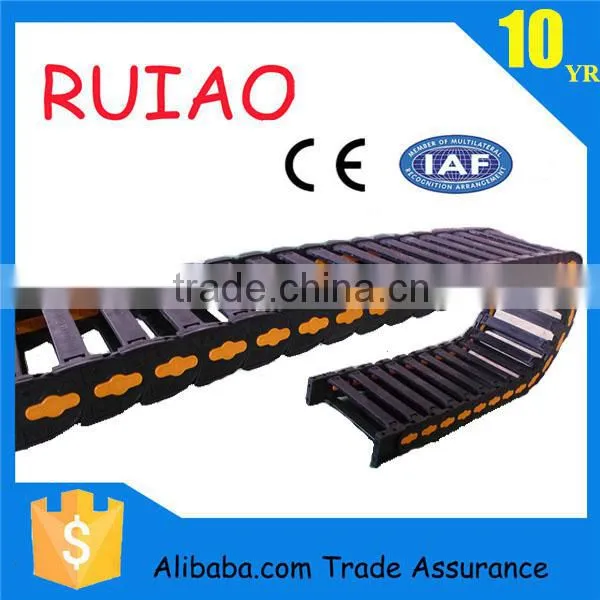

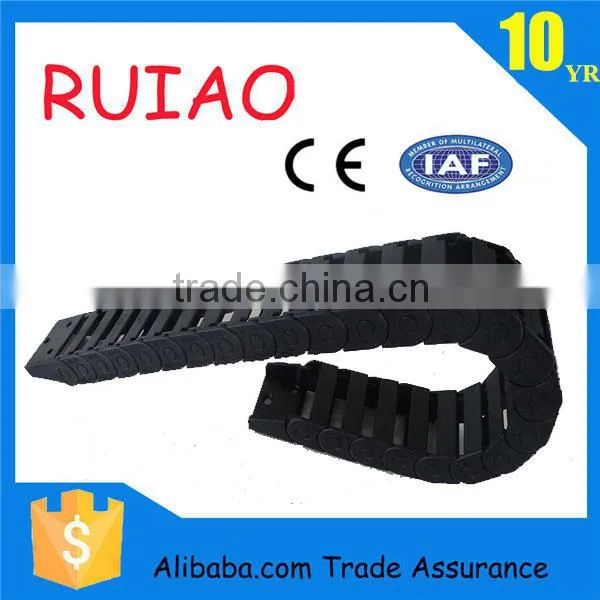

photoes showcase

dots can be changed to your favarable color!

our other type plastic cnc cable wire track , if you are interested in any of it , pls click on the picture to the related link

(1) TEZ series ,old mould , weight bearing and over length working , been used for years

(2) TLJ anti noise series plastic energy chain , silent working , more flexible , suitable for silent environment

(3) TLCseries plastic energy chain, new tooling and more beautiful for your machine

Packaging & Shipping

Careful packaging, ensure that the roller chains arrive immediately to your hands~~

(1) cartons for small quantity

(1) wooden case for large quantity
