YSCB Series Magnetic Plate Form Scraps Excluding Machine

Name: YSCB Series Magnetic Plate Form Scraps Excluding Machine
Brand: RUIAO
SKU: 128559823

US$ 100 - 1,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, chip conveyor

Material:

Stainless Steel

Hebei Ruiao Machine Tool Accessories Producing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, chip conveyor

Material Stainless Steel

Material Feature Oil Resistant

Structure Belt Conveyor

Load Capacity over load

Place of Origin Hebei, China

Brand Name RUIAO

Model Number Scraped type

Voltage 220/380

Power(W) 0.2kw

Dimension(L*W*H) up to the requests

Certification CE,ISO

After-sales Service Provided Engineers available to service machinery overseas

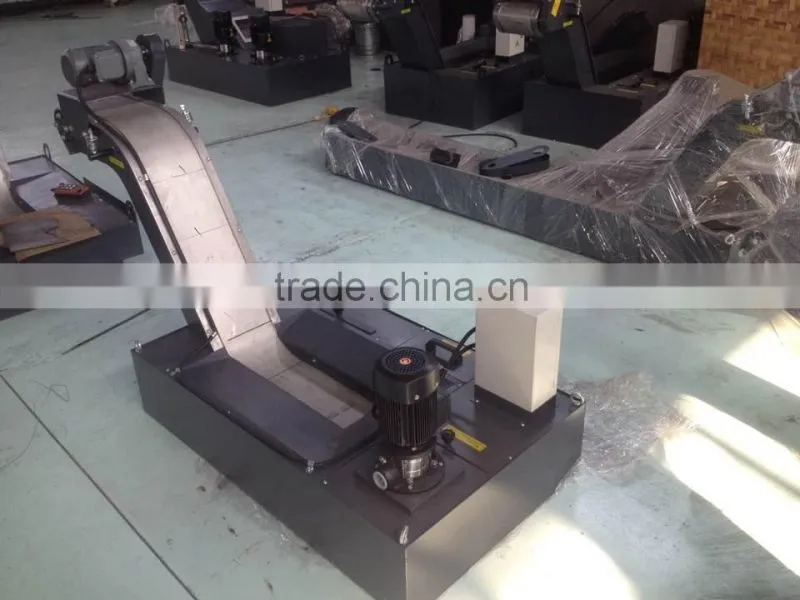

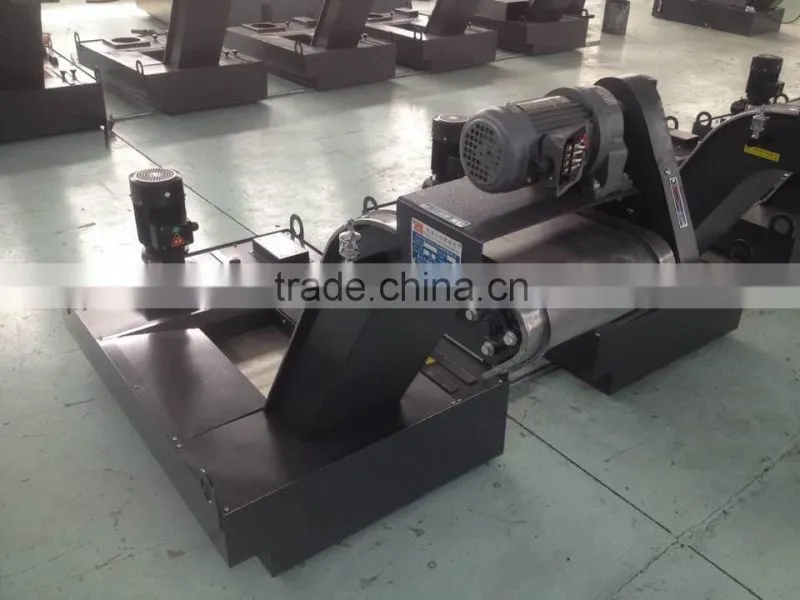

YSCB series magnetic plate form scraps excluding machine

Product Description

The best tool for scraps conveyor automatic:

compact with high efficiency; it's the most proper machine model for complying with CNC,NCmachine
plural binged belt width offers you the optimal application for wide range and the effectiveness.
mono-assembly of link plate with high strength ,precise coordination and stable or silent motion
a desion of small GAP convex points is available to prevent the chips from adhering due to the powerful ability on removing the chips
with a limited torque force,it can effectively reduce the damage to the minimum level that caused by improper operation.

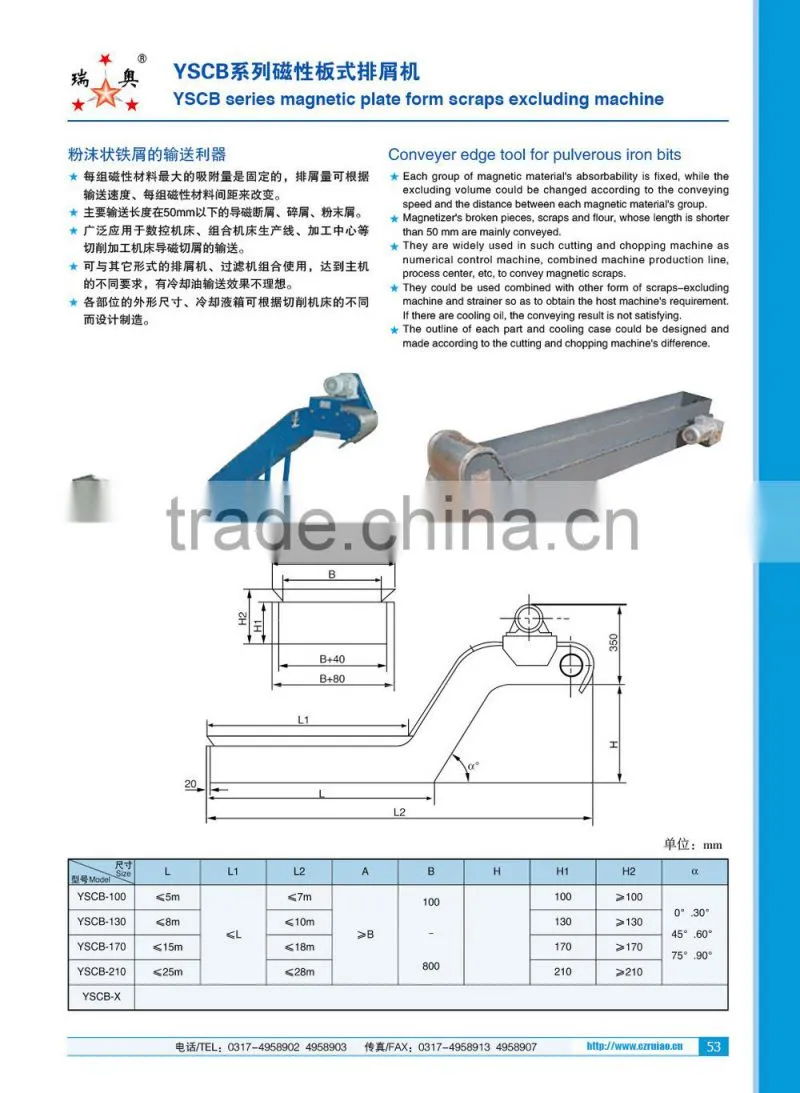

Specification&Options of scraps conveyor :

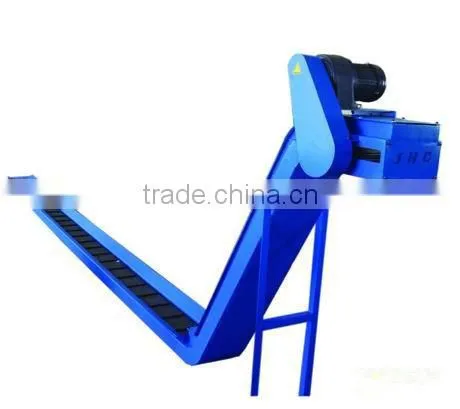

hinged belt type scraps conveyor
specification		option
reduce speed motor	1/4Hp(0.2kw)1/165 220/380v	1,CE specification device	1,simple CE device of exit
pitch of chain	R2050 P=31.75MM		2,fullcover CE device of exit
Hinged belt width	175,150-600(interval 50mm one type) 175,150-600(there is one kind of specification every 50mm)	2,manual control device	1, standard emergent stop
			2,CE spec standard emergent stop
chips holder	one-three pieces for every six pitch	3. various far terminal control boxes
conveyor speed	1.2-1.4/min(50/60HZ)	4.variious romote controller cable lines
safety device	HTL-350-2	5.torque limit device
angle of conveyor	60	6.prevent chips roll up device
