CNC1503SA
Max processing size : Φ300×1500 mm
Z-axis maximum moving distance: 1520 mm
X-axis maximum one-way moving distance: 200 mm
Main drive form: Independent spindles, frequency stepless
Spindle speed range: 0-3500 r/min
Feeding speed: 3000 mm/min
Chuck diameter: Φ160mm
Main motor power:4.0 kw
Power supply: 380V/50HZ
Dimensions (L * W *H): 2700×800×1200 mm
Net weight:800 kg
Characteristics
1, Horizontal lathe bed structure.
2, Spindle frequency conversion stepless speed regulation.
3, X/Z axis adopts stepper drive.
4, Lathe bed guide rail for high precision wire gauge.
5, Precision ball screw, automatic pressure lubrication.
6, Double location tool post, coarse and fine machining one-time complete.
7, Control system adopts the mature CNC controller, 12 inches color screen, the international standard NC language G code, support for multiple software, support technical function extension.
8.Five-axis multi-function, complete car, milling, engraving, groove, and other functions.
Use

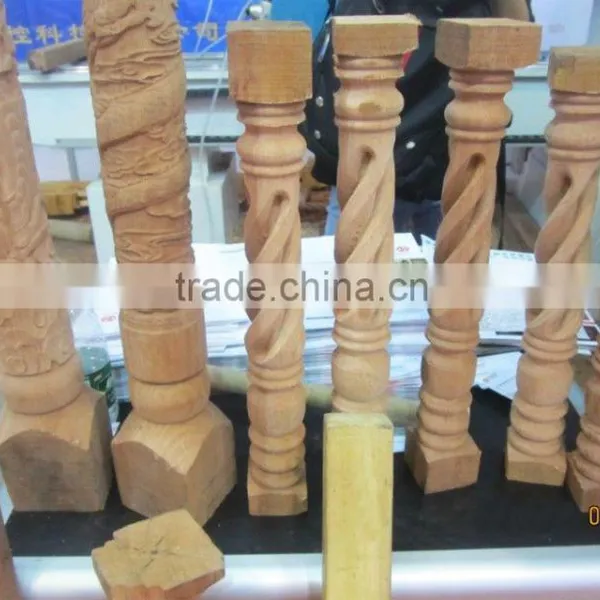

Processing: stair columns, bend round, vase, table and chair legs, european-style furniture Roman column, wooden hangers, washbasin, etc. The wood products or wood semi-finished products of rotors of cylindrical, conical, arc and spherical complex shapes.
Configuration
Standard configuration:
1, 12 inches color screen, built-in CNC computer.
2, Imported linear guide, precision ball screw.
3, Carved slot multiple spindle and the control part.
4, Universal rotary joints.
5, Rotary center follow rest (5~6 cm wood square).
6, Pneumatic feeding, automatic centering.
7, Pneumatic pressure plunger.
8, V-shaped front steel lathe tool.
9, Distribution control and easy to use software, the basic design software.
10.Accessories
Select the configuration
1, Four jaw chuck(φ160 mm ).
2, Special vacuum cleaner.
3, 220 V constant power variable frequency spindle control;
Note: Yourself with air, can choose other configuration according to customer's requirement.
