Full Precision Single Roller Coater/ UV Roller Coater Machine with 600/1300/2000mm, Roller Coater Equipment/Glass/Funiture/Wood/Ceramic
Features:
- For all kinds of flat products (such as wood, plastic, metal, solar glass, etc.) of the surface coating, coating machine by this station after the film plane smooth, delicate, no color difference.

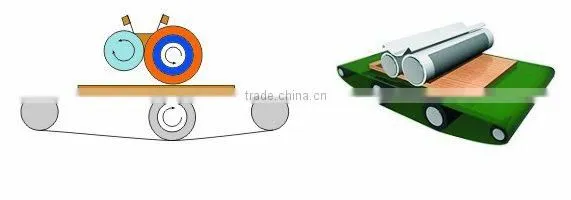

- The application roller, doctor roller and conveyor belt are controlled by individual inverter to ensure the precision.
- Adopting with thickness setting device to adjust the pressure of roller based on different products and thickness. If the working pieces is thicker than previous set ,the machine will automatically stop.
- For all kinds of paint such as UV, PU, NC and water-based paint which the paint can recycle and no-wast .
- Optional: PLC board for fully automatically operation.
| Model | JXRAI-1300 |
| Working Width(mm) | 1300 |
| Working Thickiness(mm) | 2~80 |
| Feeding Speed(m/min) | 5~20 |
| Coating Roll Size(mm) | 1450*Φ240 |
| Dortor Roll Size(mm) | 1450*Φ150 |
| Shortest Working Length(mm) | 300 |
| Machine Weigh(kg) | 800 |
| Convey Power(kw) | 1.5 |
| Rubber Roller Power(kw) | 1.5 |
| Total Power(kw) | 7 |
| Machine Size(mm) | 1000*2360*1580 |
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.), We arrange the local shipment,which’s easy for you to control the transportation cost.
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Established in 2003, Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprise in the field of painting equipment.
Our Team:
1. What is the UV coating machine MDF warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
2. Why choose JXY?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
3.How to contact me?
More details please contact with Jasmine
Skype ID:jasminelovesiki
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Tel:86-755-27539937
Headquarter:19F, Zhongya R&D Building; Songgang Town; Baoan District; Shenzhen
Factory: 10 Block, Jinjiali Industry Zone, Bitou; Songgang Town; Baoan District; Shenzhen
