Specifications
Rubber sheathed cords H05RN-F flexible rubber cable1. Rubber sheathed
2. VDE approved
3. Rating: 300/500V
4. Color: Black
Rubber sheathed cords H05RN-F flexible rubber cable
1. Rubber sheathed
2. VDE approved
3. Rating: 300/500V
4. Color: Black
| No.of conductor |
Conductor
|
Insulation thickness (mm) |
Sheath thickness (mm) |
Overal diameter (mm) |
Max Conductor resistance at 20°C (Ω/km)
|
||
| Normal Area (mm²) |
Construction (No. /mm) |
Bare |
Tinned |
||||
| 1 | 0.75 | 24/0.20 | 0.8 | 0.8 | 4.6±0.2 | 26.0 | 26.7 |
| 1.0 | 32/0.20 | 0.8 | 0.8 | 4.8±0.2 | 19.5 | 20.0 | |
| 1.5 | 30/0.25 | 0.8 | 0.8 | 5.1±0.2 | 13.3 | 13.7 | |
| 2 | 0.75 | 24/0.20 | 0.6 | 0.8 | 6.4±0.2 | 26.0 | 26.7 |
| 1.0 | 32/0.20 | 0.6 | 0.9 | 6.9±0.2 | 19.5 | 20.0 | |
| 3 | 0.75 | 24/0.20 | 0.6 | 0.9 | 7.0±0.2 | 26.0 | 26.7 |
| 1.0 | 32/0.20 | 0.6 | 0.9 | 7.4±0.2 | 19.5 | 20.0 | |

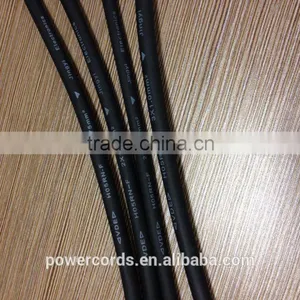

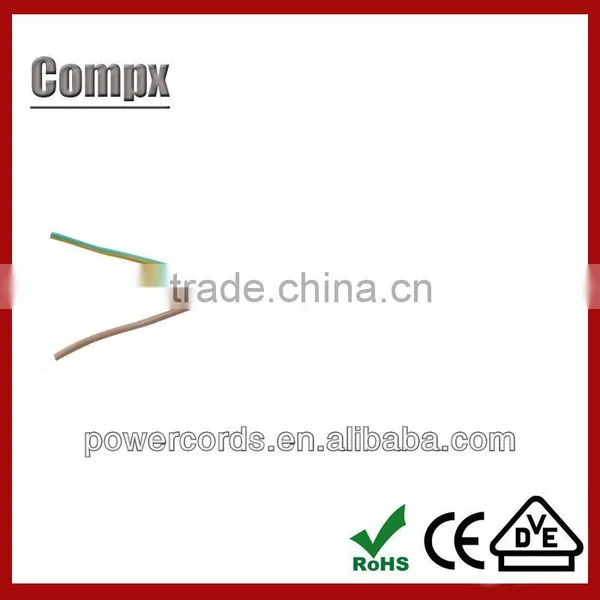

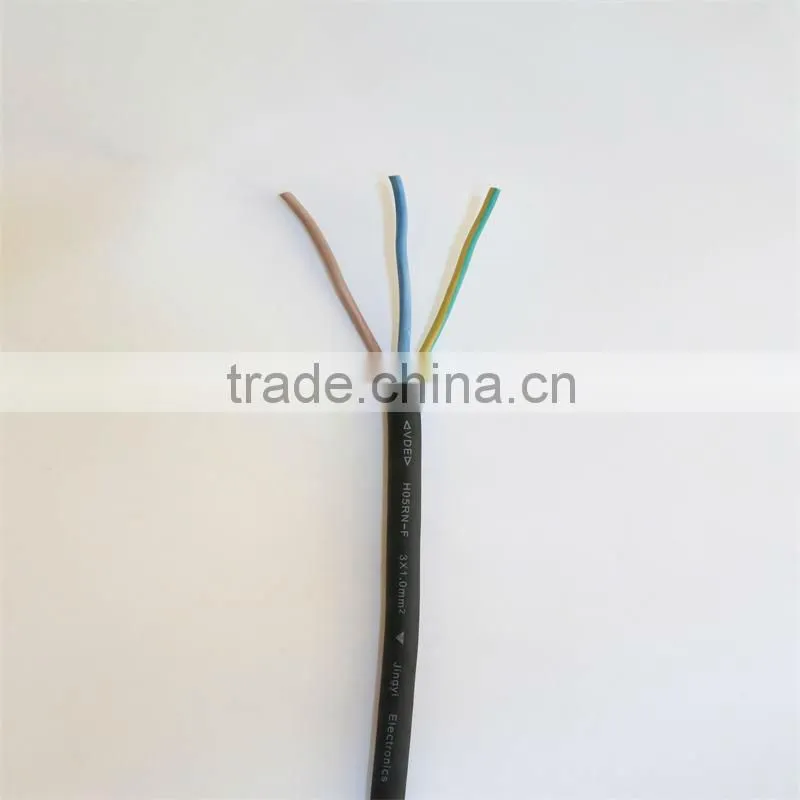

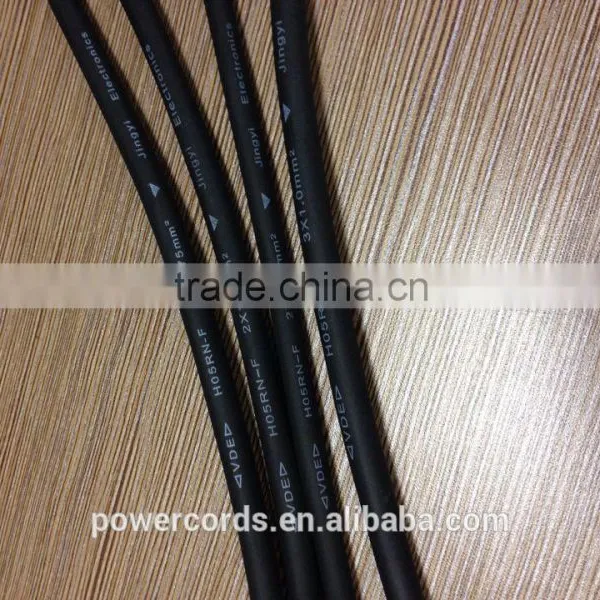

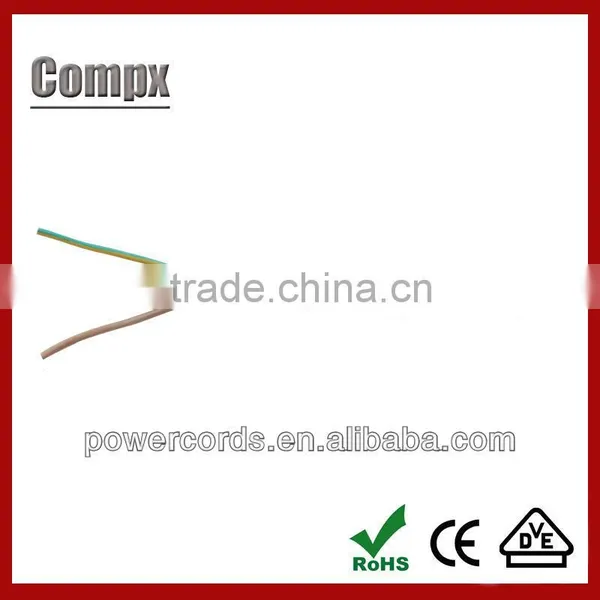

Product Picture:
Factory Picture:
Certificated Approval:
CCC, UL/CUL,CEE,VDE,GS,NF,BS,CSA,PSE,SAA,SABS,SEV,NBR,EK,KEMA and so on.
QC Team :
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
