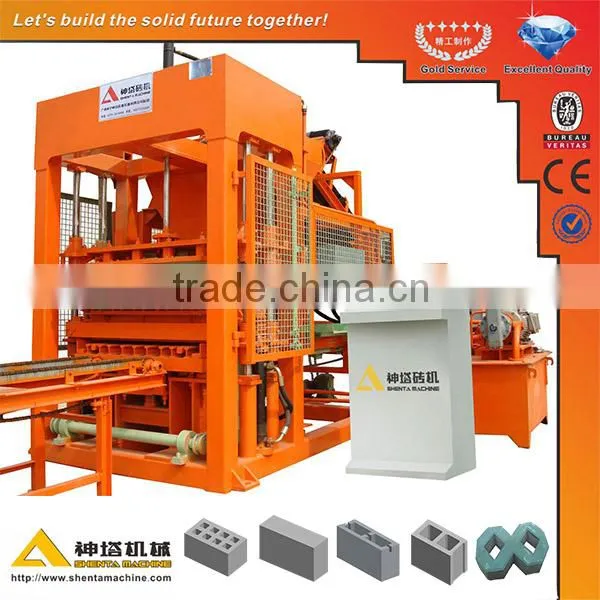

QT10-15 Hydraulic pressure concrete block moulding machine
1.Characteristic of Hydraulic pressure concrete block moulding machine
1.Control: Adopt intelligent programmable logic controller (PLC) and high performance touch screen. Realize the man-machine conversation and fully automatic intelligent operation.
2.High efficient vibration system: Adopt intelligent control technique in the frequency conversion vibration system, distribute materials
in low frequency and form the bricks in high frequency. Moreover, with the synchronous vertical vibration technology, the brick forming
speed becomes faster and the bricks are more compacted.
3.Transmission system: Adopt fully hydraulic transmission, four pillars oriented and synchronous mechanism. Machine operation is stable,
precise and less malfunctions.
4.Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.
5.Machinery Manufacturing: Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical
working processes bring high precision, durable and a long service life.
Main Specification of QT10-15 Hydraulic pressure concrete block moulding machine
| Operation Cycle | 15~25s | Pallet Size |
1100*900*30mm |
Brick Height |
60~200mm |
Main Power Capacity |
50 Kw |
Vibration Frequency |
430-5130 rpm |
Vibartion Force (kn) |
86 |
Net Weight |
10 t |
Vibration Power (kw) |
25 |
Power Source |
3Phase, 380V/50Hz (Special voltage &frequency is available according to your local power source.) |
Main Machine Dimension |
5200*2700*3100mm |
Theoretic Productivity of Hydraulic pressure concrete block moulding machine
| Brick Type | Dimension | Blocks/Cycle | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick |
390*190*190mm |
10 | 2400 | 19200 | |
| Porous Brick | 240*115*90mm |
21 | 5040 | 40320 | |
| Paver Brick | 200*100*60mm |
36 | 8640 | 61920 | |
| Solid Brick | 240*115*53mm |
45 | 10800 | 86400 | |
Note: Special brick model is available according to customer demand.
2. Production Line of QT10-15 Hydraulic pressure concrete block moulding machine
Equipment List:
| 1 | Forklift | 9 | Wheel Loader |
| 2 | Stacker | 10 | Batching Machine |
| 3 | Pigment Mixer | 11 | Mixer |
| 4 | Belt Conveyer for Pigment | 12 | Hydraulic Power Unit |
| 5 | Block Making Machine | 13 | PLC Controller |
| 6 | Belt Conveyer for Base Material | 14 | Color Feeding System |
| 7 | Screw Conveyer | 15 | Green Block Conveyer |
| 8 | Cement Silo |
3.Raw Material for QT10-15 Hydraulic pressure concrete block moulding machine
Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick
and paver brick.
1. Sand: 30~40%; 3. Fly Ash or Additive: 0~10%
2. Cement: 10%~20%; 4. Crushed Stone (<5cm): 30~40%;
4.Brick Sample of QT10-15 Hydraulic pressure concrete block moulding machine
Our machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick,road traffic stone etc .
Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden box.
5.Factory Ability:
1.Factory Area: 40,000 square meter;
2.Facility: CNC Lathe: 06 sets; Boring Lathe: 02 sets; Shaper: 02 sets; Milling Machine: 04 sets;
Press Brake: 02 units, CNC Flame Cutter: 01 set; Crane:10 sets; Shot Blast Machine: 01 set.
Quality Control:
We adopt the high quality steel materials, and every process will have the strict inspection and test to ensure the machine has perfect performance.
Exhibitions:
We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and
parts exhibition; International concrete technology and equipment exhibition in India;The ASEAN-China
Exposition in Nanning, etc.
My dear friends, if you have any questions about the Hydraulic pressure concrete block moulding machine , please feel free to contact Alice:)
