Specifications
PSA Foodstuff Nitrogen Generator1) N2 Purity:95-99.9%
2) N2 Flow: 3-30Nm3/h
3) N2 Pressure: 0.05 - 1.0Mpa

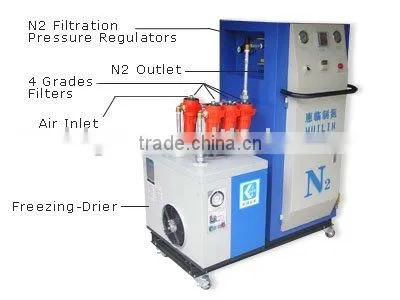

HL-WG-Food/Foodsuff Nitrogen Gas Generator
Nitrogen Generator for Foodstuff
HUILIN Foodstuff Nitrogen Generator adopt PSA(Pressure Swing Adsorption) technology with compressed air as material, picking-up N2 of purity 95%~99.9% from the air to use for foodstuff fresh-keeping packing.
At the same time,this series products widely using in other fields and industries which have the same requirement of N2 purity and capacity.
l Characteristics
1,N2 purity is accurate and reliable due to the result displayed online on numeric meter.
2,Furnish four-grade filters and drier to remove water,oil and impurity of compressed air to ensure N2 generator running smoothly and steady guarantee life achieve more than 10 years.
3,Furnish N2 outlet filter ensure nitrogen gas clear and purity which is sufficient suitable for foodstuff packing.
4,Reasonable N2 purity,can be adjusted from 95% to 99.5%.
5,Compact in frame, light in weight, steady in performance and facilitated in operation.
l Specifications
|
Model Type
|
N2 Flow(Nm3/hr) |
Weight (kg) |
External Dimension L×H×W(mm) |
In/Out Nozzle Size |
N2 Dew Point ( °C) |
||||
95% |
97% |
99% |
99.5% |
99.9% |
|||||
WG-Food-3 |
7.5 |
5 |
3.5 |
3 |
2.25 |
136 |
1100×660×1355 |
G¼ or 8 |
≤-40°C |
WG-Food-5 |
13 |
9 |
6 |
5 |
3 .75 |
155 |
|||
l Usable Condition:
Inlet Temperature: ≤80°C
Ambient TemperatureL: ≤40°C
Installation Condition: Well ventilation without dust and oil -pollution
Installation Location: Flat indoorsplace,don't need groundsill,distance from wall ≥80cm
l Nitrogen generator generally function include power and compressed air consumption needed as following form:
Item Name |
Specifications |
Notes |
||
Power |
V / Hz / |
220V/50Hz/1 |
Air Compressor is not included. |
|
|
Power |
0.25Kw |
||
Compressed Air Source |
Flow |
WG-Food-3 |
0.126m3/min |
—— |
WG-Food-5 |
0.21m3/min |
—— |
||
Cmprssd Air Pressure |
≥0.7Mpa |
—— |
||
