Oxygen Generator
Principles
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2 is bigger than the quadrupole of O2, the adsorption capacity by molecular sieve to N2 is stronger than O2.When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.

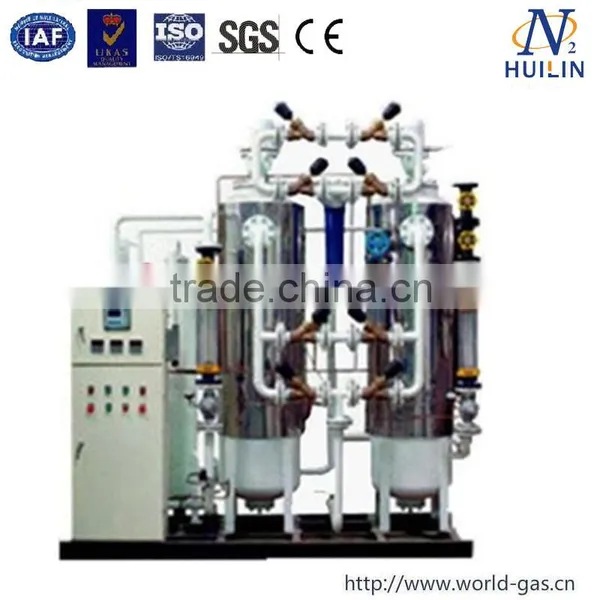

The main part of O2 generator is two towers filled with molecular sieve ,when the compressed air get into adsorption tower, the N2 is absorbed by molecular sieve,O2 is produced from the export terminal .When one tower produces O2,another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve.Two towers alternate adsorption and regeneration to output O2 continuously.
Technical Features
1).Full Automation
All systems are designed for un-attended operation and automatic Oxygen demand adjustment.
2).Lower Space Requirement
The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.
3).Fast Start-up
Start-up time is only 5 minutes to get desired Oxygen purity.So these units can be switched ON&OFF as per Oxygen demand changes.
4).High Reliabiity
Very reliable for continuous and steady operation with constant Oxygen purity.Plant availability time is better than 99% always.
5).Molecular Sieves life
Expected Molecular sieves life is around 15-years i.e. whole life time of Oxygen plant.So no replacement costs.
6).Adjustable
By altering flow,you can deliver nitrogen with precisely the right purity.
Specifications&Selection

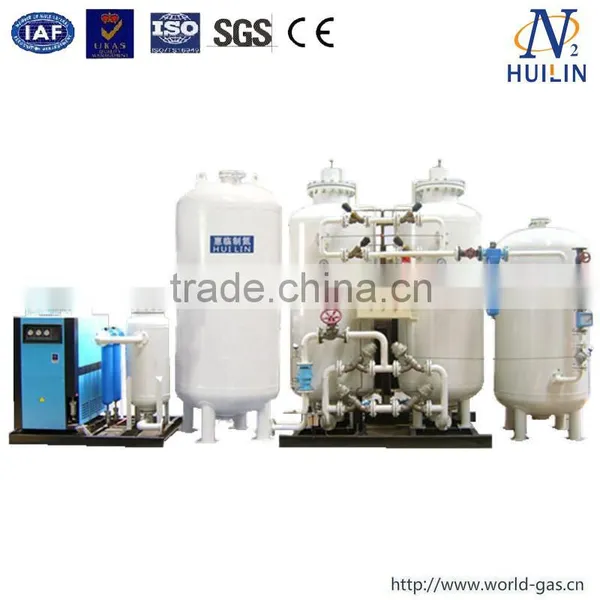

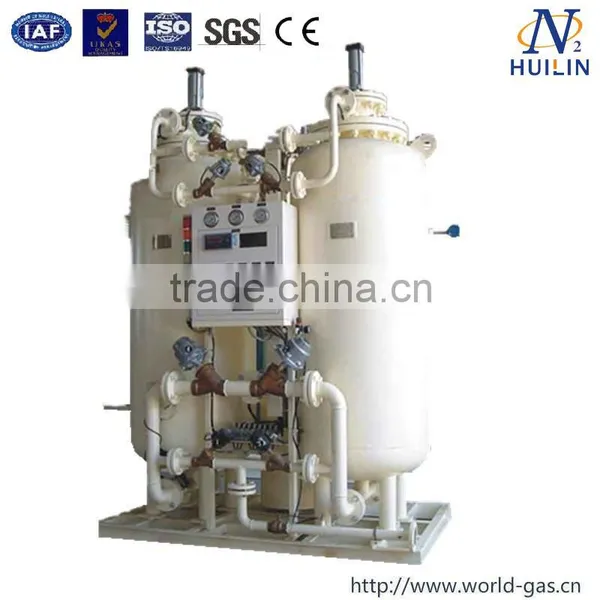

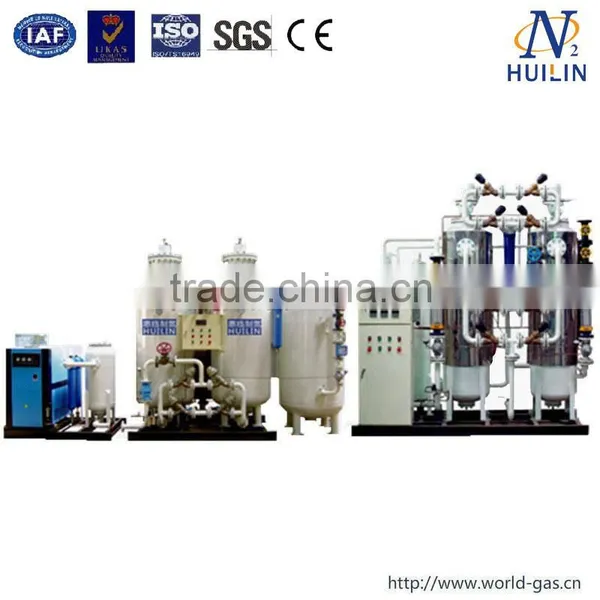

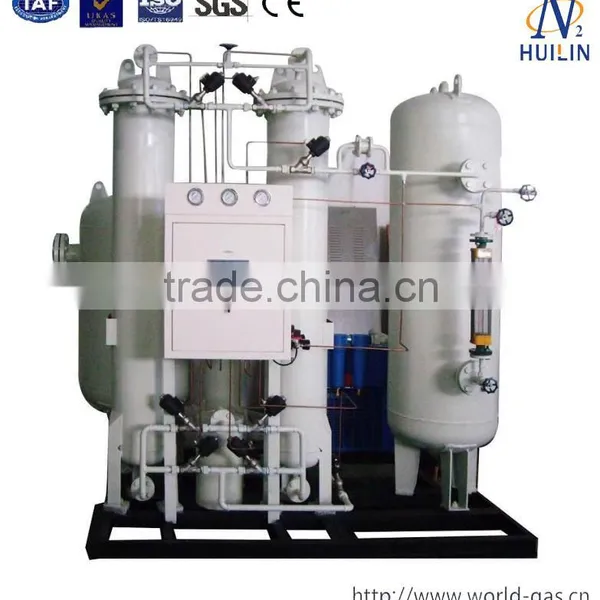

PSA Oxygen Generator
Capacity: 3~3000Nm3/h
Purity: 90~98%
Outlet pressure: 0.1-0.8Mpa
| Model |
Flow (Nm3/hr) |
Air consumption (Nm3/min) |
Inlet (mm) |
Outlet (mm) |
| HL-WG-STDO-3 | 3 | 0.95 | 20 | 15 |
| HL-WG-STDO-6 | 6 | 1.9 | 25 | 15 |
| HL-WG-STDO-10 | 10 | 2.8 | 32 | 15 |
| HL-WG-STDO-20 | 20 | 5.6 | 40 | 20 |
| HL-WG-STDO-30 | 30 | 8.4 | 50 | 20 |
| HL-WG-STDO-50 | 50 | 14 | 65 | 25 |
| HL-WG-STDO-80 | 80 | 22 | 65 | 32 |
| HL-WG-STDO-100 | 100 | 28 | 80 | 32 |
| HL-WG-STDO-150 | 150 | 42 | 100 | 40 |
| HL-WG-STDO-200 | 200 | 56 | 125 | 40 |
1. Ferrous metallurgy: For electric furnace steel making ,blast furnace iron making,cupola oxygen blasting and heating and cutting, etc
2. Non-ferrous metal refinery: It can improve productivity and reduce energy cost, also protect our environment.
3. Water process: For oxygen aeration active mud process, reaeration of surface water. fish farming,industrial oxidation process, humid oxygenation.
4. Others: Chemical industry production, solid garbage burning, concrete production, glass manufacturing...etc.
5. Customized equipment with pressure high upto 100bar, 120 bar, 150 bar, 200bar and 250 bar are available for cylinder filling.
6. Medcial-grade O2 gas can be obtained by equipping extra purifying device for removing bacteria, dust and odor.
Why choose us ?
1.Convenient to install
2.More economic than other oxygen supplying methods
3.The macaronis design realizes the automatic running
4.Peak value / the security system of the trouble
5.The high-quality components and parts are the reliable assurance of steady operation
6.Oxygen content shows in succession, equipping the transfinite automatic alarm system:
7.The high-quality zeolite molecular sieve:
8.The advanced loading technology guarantees the service life of equipments
9.The automatic alarm system for sinking of the carbon molecule sieve:
10.The unqualified oxygen automatic emptying system
11.Differential pressure indication, concentrating blow down system:
12.The unique inter-circle switching techniques’ of system
