Home > Electrical & Electronics > Sensor > Pressure Sensor > Durable Small Capacity 3kg Load Cell Sensor/AMAD-A

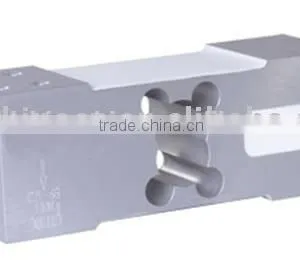

Durable Small Capacity 3kg Load Cell Sensor/AMAD-A
US$ 3 - 10
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
AMAD-A
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
With High Precision China Mini Single Point Aluminum Load Cell AM601US$ 3.5 - 5MOQ: 50 Pieces -
With High Precision Aluminum Load Cell /Electronic Scale Sensor/AM605EUS$ 10 - 600MOQ: 200 Sets
-
With High Precision Small Capacity 3kg Load Cell Sensor/AMAD-AUS$ 3 - 10MOQ: 200 Pieces
-
With High Precision Mini Single Point Aluminum Load Cell AM601US$ 3.5 - 5MOQ: 50 Pieces
-
With High Precision Wholesale Mini Single Point Aluminum Load Cell AM601US$ 3.5 - 5MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
GOLDSHINE
Model Number
AMAD-A
Usage
Pressure Sensor
Theory
Inductance Sensor
Output
Digital Sensor

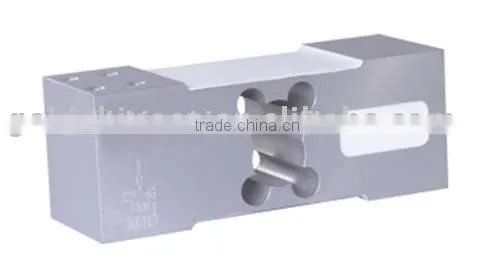

AMAD-A-Aluminum Load Cell
| Capacity: | 50/100/150/200/250/300/500/600 |
| Outline size | 64×60×174 |
| Rated output: | 2.0mv/V±5% |
| Zero balance: | ±0.0200mv/V |
| Non-linearity: | 0.015%R.O. |
| Hysteresis, Non-Repeatability: | 0.015%R.O. |
| Creep(5 minutes): | 0.02%R.O. |
| Temperature Compensated For Output: | 0.02%R.O./10 |
| Temperature Compensated For Zero: | 0.03%R.O./10 |
| Input resistance: | 405±10Ω |
| Output resistance: | 350±5Ω |
| Insulation Resistance: | ≥5000MΩ |
| Temperature Compensated: | -10to+40 |
| Operating Temperature Range: | -20to+60 |
| Recommended Excitation: | 10VDC |
| Maximum Excitation: | 15VDC |
| Safe overload: | 150%.R.C |
| Cable and length: | 2m(φ5mm) |
