Help CenterMiniature Aluminum Load Cell
Related Products

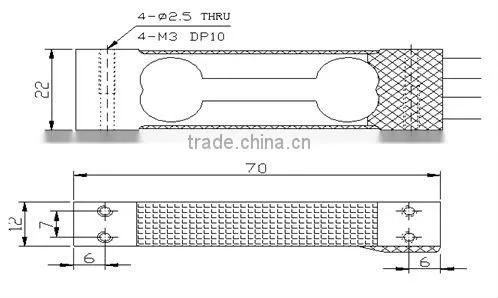

Dimensions:
Product Characteristics:

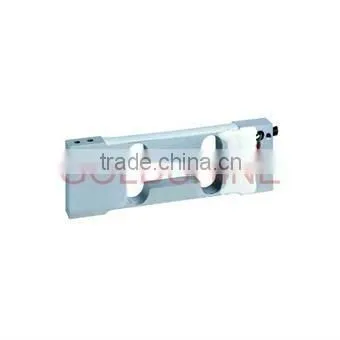

Miniature load cell AM605E Colorless anodized; Hermetically sealed with glue to IP65. The Aluminum Load Cell is a low profile single point load cell designed for direct mounting of low cost weighing platforms. Its small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for floor scale ,electronic floor scale, low profile floor scale ,digital floor scale, floor weighing scale, floor balance scale, frameless floor, frame type floor scale, explosion-proof floor scale, moveable floor scale, bench scale, cattle scales, pit scale, track scale, digital platform balances, digital weight balance,digital scale balance,digital precision balance,digital counting balance,digital electronic balance,digital body balance, platform balances, platform scale, baby scale.
Technical Parameter:
Capacity: |
0.3Kg~3kg |
Outline Size: |
22×12×70 |
Rated Output: |
1.0mv/V±10% |
Zero Balance: |
±5%R.O. |
Non-Linearity: |
±0.02%R.O. |
Hysteresis, Non-Repeatability: |
±0.015%R.O. |
Creep(30 Minute): |
±0.03%R.O. |
Temperature Compensated For Output: |
±0.03%R.O./10°C |
Temperature Compensated For Zero: |
±0.03%R.O./10°C |
Input Resistance: |
405±10Ω |
Output Resistance: |
350±3Ω |
Insulation Resistance: |
≥5000MΩ |
Temperature Compensated: |
-10to+40°C |
Operating Temperature Range: |
-20to+60°C |
Recommend Excitation Voltage: |
5~12VDC |
Maximum Excitation Voltage: |
18VDC |
Safe Overload: |
150%.R.C |
Cable: |
19cm(φ0.8mm) |
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
