Home > Electrical & Electronics > Sensor > Pressure Sensor > Smallest Aluminum Load Cell

Smallest Aluminum Load Cell

Name: Smallest Aluminum Load Cell
Brand: GOLDSHINE
SKU: 128761323

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

AM90H

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number AM90H

Usage Pressure Sensor

Theory Inductance Sensor

Output Analog Sensor

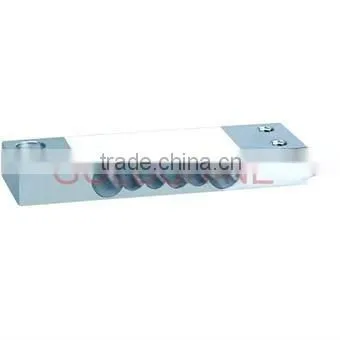

Aluminum alloy load cell/ Min sensor AM90H

Product Characteristics:

AM90H Aluminum-alloy;Colorless anodized; Hermetically sealed with glue to IP65. Applications for electronic counting scales, platform scales etc

Technical Parameter:

Capacity:	200g~1kg

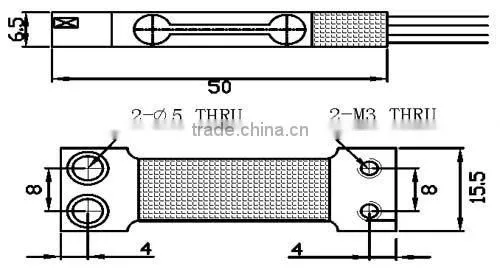

Outline Size:	6.5×15.5×50
Rated Output:	1.0±20%mv/v
Zero Balance:	±0.1mv/V
Non-Linearity:	±0.05%R.O.
Hysteresis, Non-Repeatability:	±0.05%R.O.
Creep(30 Minute):	±0.05%R.O.
Temperature Compensated For Output:	±0.05%R.O.
Temperature Compensated For Zero:	±2%R.O.
Input Resistance:	1130±20Ω
Output Resistance:	1000±10Ω
Insulation Resistance:	≥2000MΩ
Temperature Compensated:	-10to+40
Operating Temperature Range:	-20to+60
Excitation, Recommended:	≤6VDC
Excitation, Maximum:	18VDC
Safe Overload:	150%.R.C
Cable, And Length:	9cm(Φ0.65)

Note: The length of the cable cab be adjusted according to customers requirement, but we suggest to use this standard length to ensure the output precision.
