Home > Electrical & Electronics > Sensor > Pressure Sensor > Wireless Tension Crane Scale Load Cell

Wireless Tension Crane Scale Load Cell

Name: Wireless Tension Crane Scale Load Cell
Brand: GOLDSHINE
SKU: 128762503

Wireless Tension Crane Scale Load Cell thumbnail-1

Wireless Tension Crane Scale Load Cell thumbnail-2

Wireless Tension Crane Scale Load Cell thumbnail-3

Wireless Tension Crane Scale Load Cell thumbnail-4

Wireless Tension Crane Scale Load Cell thumbnail-5

Wireless Tension Crane Scale Load Cell photo-1

Wireless Tension Crane Scale Load Cell photo-2

Wireless Tension Crane Scale Load Cell photo-3

Wireless Tension Crane Scale Load Cell photo-4

Wireless Tension Crane Scale Load Cell photo-5

US$ 200 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS220W

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS220W

Usage Pressure Sensor

Theory Resistance Sensor

Output Digital Sensor

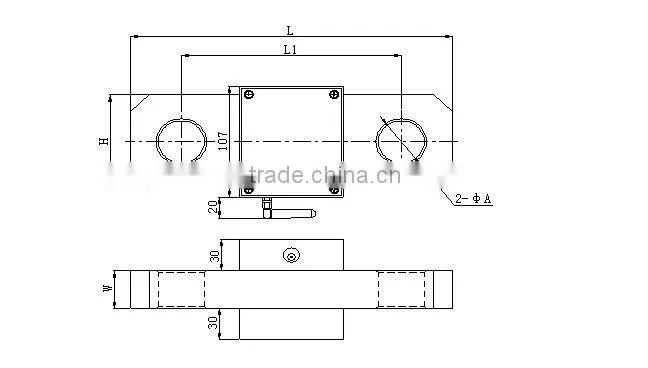

Unit: mm

Cap./t	H	W	L	L1	A
1~5t	76	34	230	160	38
7.5~10t	90	47	280	180	40
20~30t	125	55	370	230	53
40~60t	150	85	430	254	73
80~150t	220	115	580	340	98

Product Characteristics:

GS220W series is special wireless load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. High precision, strong overload protection capacity and anti-deflective loading. The load cell with special hook and ring, easy installation.

Circuit Diagram:

Technical Parameter:

Rated Load:	1/2/3/5/7.5/10/20/30/40/50/60/80/150t
Wireless Frequency:	240GHz
Wireless Distance:	Min:80m(default)[200m(optional)]
A/D Conversion Rate:	≥50 times/seconds
Battery Life:	≥50 hours
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-30~+70°C
Maximum Safe Over Load:	120%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel, Stainless Steel
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
