Help CenterPressure Transducer and Sensor FYB26
Related Products
Specifications
1.It can be used to match record instruments or computer2.Airproofed structure and high stability
3.Material: stainless steel
Features:
High accuracy and high reliability.
Airproofed structure and high stability.
Small volume, light weight and very convenient to use.
It's suitable for precision measuring all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement hat changes very slowly, It also can be used to match record instruments or computer.
Specifications:
Capacity: |
MPa |
1/1.5/2/3/3.5/4.5/5.5/6/8/10/12/15/20/25/30/35 |
Output: |
V |
5±0.02 |
Non-Linearity: |
%FS |
0.1, 0.2, 0.3 |
Non-Repeatability: |
%FS |
0.1, 0.2, 0.3 |
Hysteresis: |
%FS |
0.1, 0.2, 0.3 |
Temperature Effect On Zero: |
%FS/10°C |
0.1, 0.2, 0.3 |
Temperature Effect On Span: |
%FS/10°C |
0.1, 0.2, 0.3 |
Voltage : |
V |
±9(VDC) |
Temperature Compensated: |
°C |
-20-+50 |
Temperature Operating: |
°C |
-20-+65 |
Safe Overload: |
%FS |
120 |
Ultimate Overload : |
%FS |
150 |
Note

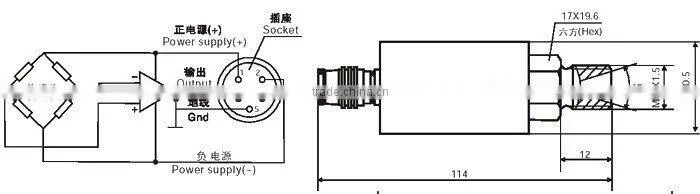

When installing please use the flat end airproofed connector with the screw thread of M14×1.5,inside wimble is 37°(If the customers need the connector with other screw thread, please give the special order to the company).
The medium material that meets: Stainless steel.
The pressure transducers are connected with indicator through sockets.
