Product Characteristics:

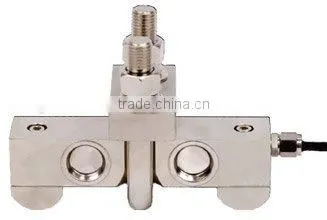

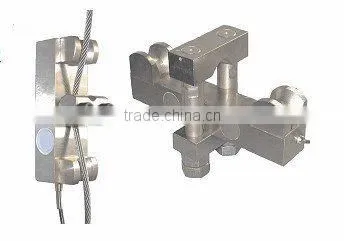

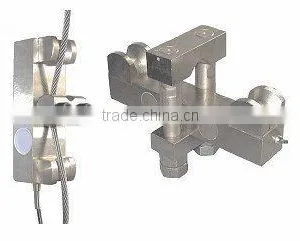

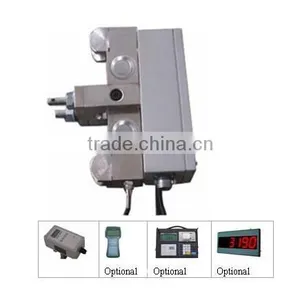

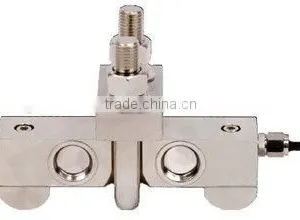

Double ended beams GS104 sensor is mainly used in measuring tensile force and used as original products of overload protection device for hoisting equipment ,such as electronic block etc. This products is generally installed on the fixed ends of wire rope. Double ended shear beam load cell. Precision load cell that can be used in legal-for-trade applications .Strain gauges measure shear force .Used in Weighbridge truck scales. construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales
Technical Parameter:

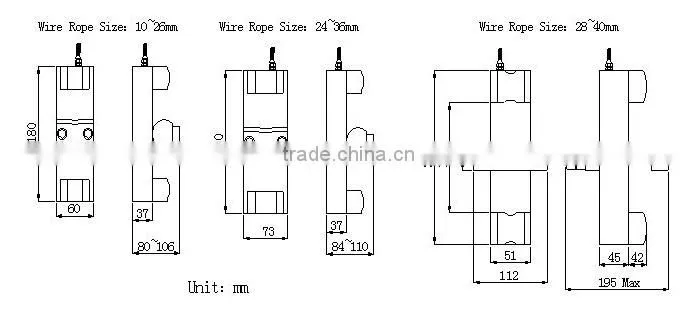

Wire Rope Size: |
10~40mm |
Sensitivity: |
(1.0±0.1%) mV/V |
Combined Error: |
±0.1% F.S |
Creep Error(30min): |
±0.02% F.S |
Zero Balance: |
±1% F.S |
Temp. Effect On Zero: |
±0.02% F.S/10°C |
Temp. Effect On Span: |
±0.02% F.S/10°C |
Input Resistance: |
385±5Ω |
Output Resistance: |
352±2Ω |
Insulation Resistance: |
≥5000MΩ |
Operating Temperature Range: |
-30~+70°C |
Maximum Safe Over Load: |
150%F.S |
Ultimate Over Load: |
300%F.S |
Recommend Excitation Voltage: |
10~12V DC |
Maximum Excitation Voltage: |
15V DC |
Sealing Class: |
IP67 |
Element Material: |
Alloy Steel, Stainless Steel |
Cable: |
Length=1m |
Citation: |
GB/T7551-2008/ OIML R60 |
Mode Of Connection: |
Red(Input+),Black(Input-),Green(Output+),White(Output-) |
