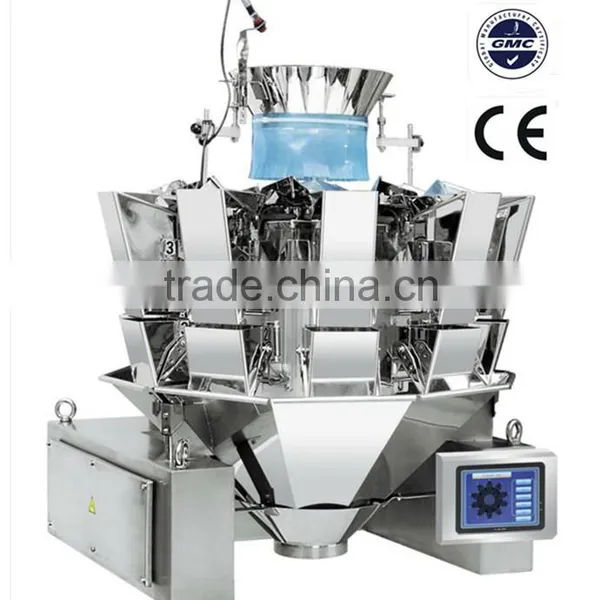

CE approved high speed and accuracy 10 Heads Computerized Combination Weigher
Model: HT-W10T
This kind of model is suitable for quantitative weighing granule, slice, roll or irregular shape products.
Application Range:
For example: snack food, frozen food, grains, metal, plastic.
Such as candy, seed, chips, pistachio nuts, nutlet, preserved fruit, jelly, forzen foods, biscuit, raisin, almond, chocolate, nuts, corn, pet food, puffy food, small metal and plastic parts etc.
Technical Parameters:
| Weighing Range | 8-1000g |
| Average error/bag | 0.2-0.5g |
| Accuracy | ±0.1-1.5g |
| Max. weighing Speed | 60bags/min |
| Hopper volume | 1300ml |
Mode of driving |
Load cell |
| Hopper format | Double-row non-memory bucket |
| Driving system | Step motor |
| Preset function | 50 types |
| Control panel | 10 inch touch screen |
| Material | 304 stainless steel |
| Combination volume | 3000ml |
| Power supply | 220V |
| Power | 1500W |
| Frequency | 50-60Hz |
| Rated current | 9A |
| Net weight | 300Kg |
| Gloss weight | 360Kg |
| Dimension | 950(L) X 950(W) X 1000(W)mm |
Main Functions:
(1). With stable 10-bucket structure, to choose the best combination instantaneously from abundant weight combinations by computer.
(2). With instantaneous reaching of correct calculating by high-precision weighing load cell.
(3). The opening and clossing speed of the bucket door can be finely adjusted according to the features of the measured material to prevent crashing and damaging.
(4). All the parts touching the material are made by stainless steel, neatness and health.
(5). Powerful data automatic statistics feature can record the quota of each bags, percent of pass, single bag error for each batch of production.
(6). The bigger weighing range is up to 1000g per dump.
(7). Select device: dimple bucket, collection bucket, printing device, error separation device.
(8). Rejecting function: all over weight or down weight products will be rejected by the weigher automatically, so that will be easy to reweigh and save the packing film.
(9). Strong compatibility: assembling directly on te top of the packaging machine in order to make compact structure.
(10). Multilanguage to choose: JAP, GER, SPA, DAN, DUT, FIN, FRE, POL, IT, TUR etc.
(11). Preset function: max. 50 types, easy to keep your products and weight data for the future use.
(12). To save plenty raw material and labor cost, fast return on investment.
Structure:
Foshan High-tech Machinery Equipment Co., Ltd is the leader of high accuracy measuring machines manufacture, with strong economic strength and good products reputation, high quality study and service team.
The computerized multihead weigher is the main products of our company, it is high accuracy, fast speed, highly automatic, widely used in th eration packing of candy, sunflower seeds, pop corn ,granulate and frozen foods.
Besides the 10 heads multihead weigher, we also have teh new products: 4 heads weigher, 8 heads weither and 14 heads multihead weigher.
To meet the food packing industrial development, we study and produce the advance standard food packing equipments, such as computerized multihead weigher, material conveyor, vibration feeder, take away conveyor, platform, check weigher, metal detector and so on.
We will service all customers with high quality products, best after-sales, and reasonable prices.If any of the items listed in the catalogue meets your interest, pleasedo not hesitate to ask us for quotations and offers, which will receive our careful attention, and we assure you of our close cooperation at all times.
