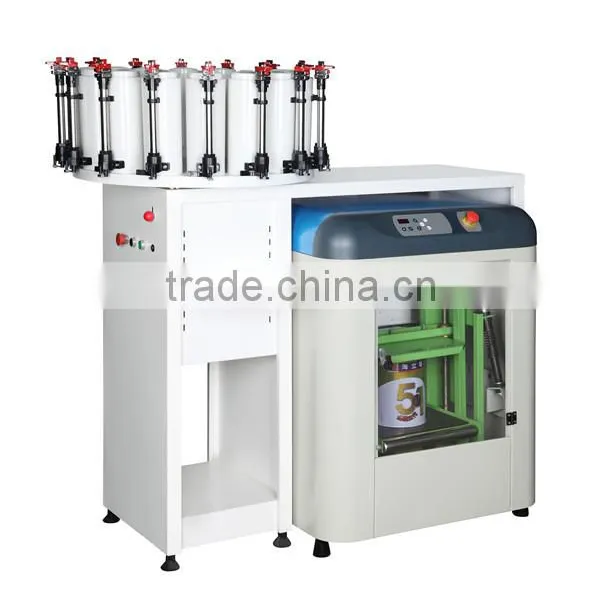

Manual Paint Dispenser and Automatic Paint Shaker Combined
Model: HT-50B
Brief Introduction:
This model machine combined with 1 set Manual Paint Dispesner & 1 set Automatic Paint Shaker & 1 self to house paint dispenser and shaker.
HT-50B not only has good appearance but lso has high accuracy and less trouble with very low price.
HT-50 serves is populazied in Chinesepaint factory and shop.
- Manual Paint Dispenser HT-20B1
HT-20B1 is a high-precision and economical dispenser which is suitable to paint retailer.
Double pump, double gauge and inching switch ensure the stability and repeatability.
Automatic blending of mixing leaf ensures equal distribution of colorant and has no deposition.
To meet the different requirement , the machine could equip with platform that is moved up and down.
My company produces the adjusting color machine accuracy as 1/192Y, namely the Black Surveyor's Rod one black space is equal to the Red Surveyor's Rod for samll red spaces.
That means 1 Black Space= (1/48) & 1 Red Space=(1/192)Y
Press red & black button, lift the double gauge, adjust the wanted colorant quantity and dispense.
The pump body can be disassembled easily and quickly, for easy maintance and cleaning.
Pouring respectively the different colors into each bucket, then covering th ebucket.
Mixing about seven minutes, then proceed to adjust the color operation after shutting down roughly five minutes.
After that, you can adjust the color accordance with what kind of color you wanted.

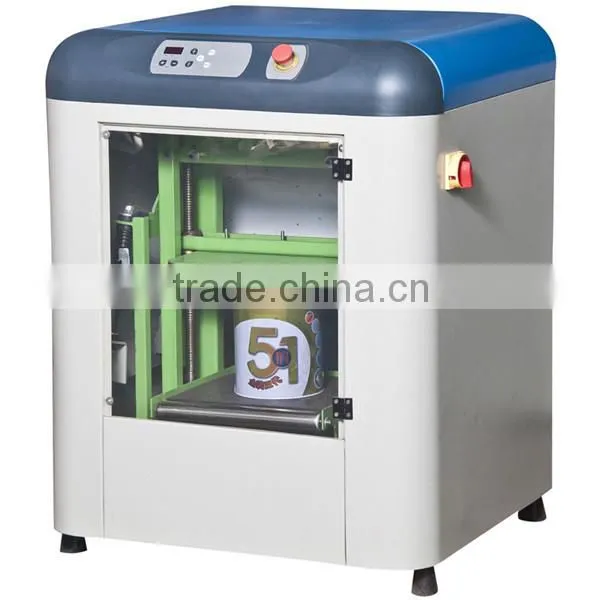

- Automatic Paint Shaker HT-30C2
Material:
The whole body is steel plate with waterproofing work, it is durable,stable,no noise, no rust.
Its operation interface is advanced and simple and its shape combines square and round to form a protective device.
Technical Parameters:
| Applicable Range | 0.5L-20L (paint in drum) |
| Height in the Drum | 90mm to 380mm |
| Pressure | 3500W |
| Power | 750W |
| Speed | 1400r/min |
| Sharking Frequency | 680t/min |
| Power Supply | 220V, 50Hz, 10A |
| Net Weight | 225Kg |
| Gross Weight | 240Kg |
| Machine Size | 1040(H) x 820(W) x 710(D)mm |
| Packing Size | 1170(H) x 900(W) x 830(D)mm |
Features:
1. Fully automatic vibrational shaker
2. High contrast LCD display
3. Safety switch on the access door
4. Automatic clamp and bring diffrent pressure to bear on the can according to the can size
5. High speed and thoroughly mixing--with up and down, front and back continuous muli-shake movement
Fully automatic, the operator only need to put the can inside the machine and press the key, and then the machine will work automatically.
For this kind of combination dispenser machine, which offer more satisfactory choices to the customers.
As for the Automatic Paint Shaker(HT-30C2), you also can choose the other machine to instead of it, for example the Manual Clamping Paint Shaker( HT-40A ), or the Automatic Rotating Mixer(HT-30A). According to your requirements, you can choose the suitable combination.
If you need more information from me, please kindly let me know.
