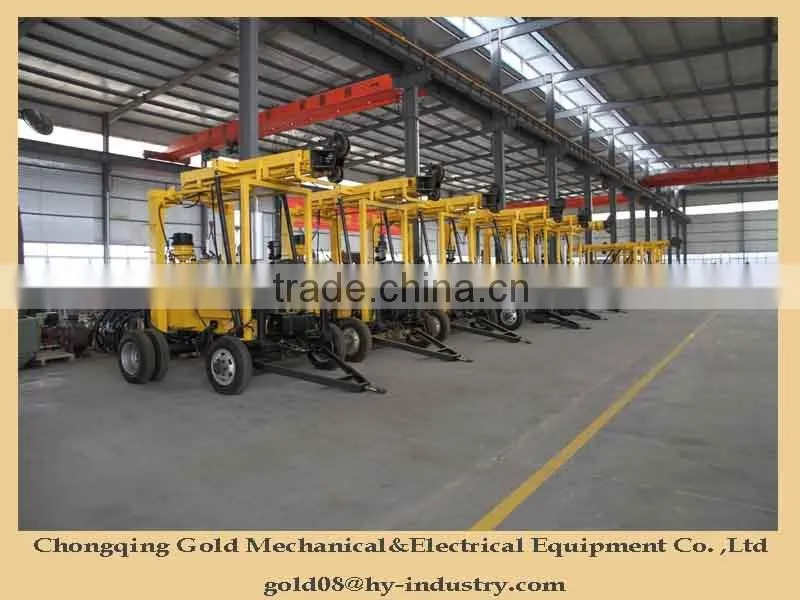

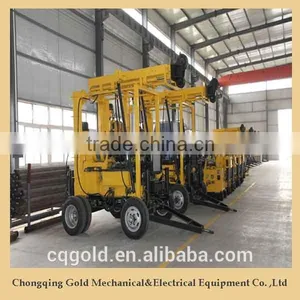

Mining Drilling Rig and Borehole Machine and Core Drilling Rig

Name: Mining Drilling Rig and Borehole Machine and Core Drilling Rig
Brand: Gold
SKU: 128867239

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Core Drilling Rig

Power Type:

Diesel

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Core Drilling Rig

Power Type Diesel

Place of Origin Chongqing, China

Brand Name Gold

Model Number GDX-3

Usage Ore

Voltage 380V

Power(W) 37KW

Dimension(L*W*H) 4.5*2*2.6

Weight 4500kg

Certification ISO9001

Warranty 1 year

Geological Mining Drilling Rig and Borehole Machine and Core Drilling Rig

---------------------------------------------------------------------------------Main Features

1. The machine is equipped with wheels and easy to move.

2. Hydraulic oil pressure feed device , improve drilling efficiency.

3. Hydraulic chuck, can complete no-- stopping rotating.

4. Pressure gauge display the condition of bottom drilling hole.

5. Drilling mast controlled by hydraulic cylinder.Improve the efficiency.

-------------------------------------------------------------------------------- Specifications

Drilling depth	m			100			250		300	600
Drilling DI	mm			300			200		150	75
Open hole DI	mm			300
End hole DI	mm			75
Drilling rod	mm			Φ60
Drilling angle				90°-65°
Rotary Spindle
Spindle forward speed					r/min			30-1050
Spindle reverse speed					r/min			29-137
Spindle stroke					mm			560
Spindle inner diameter					mm			96
Spindle lifting capacity					KN			60
Main Winch ( drive hydraulic system)
Single line lifting speed						m/min		0-45
Hug floodgate belt width						mm		90
Tightrope diameter						mm		14
Hoist single line lifting capacity						KN		40
Roller diameter						mm		200
Roller cubic measure						m		30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement			L/min					250
Work pressure			Mpa					7
Water inlet caliber			mm					75
Water to exit caliber			mm					50
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure								63mL/r 20Mpa
Behind displacement,pressure								25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp						4100# 50HP
Electric motor		KW						Y180L-4 22KW
