Wireline Coring Water Boring Machine, Drills To
Drill Water Well

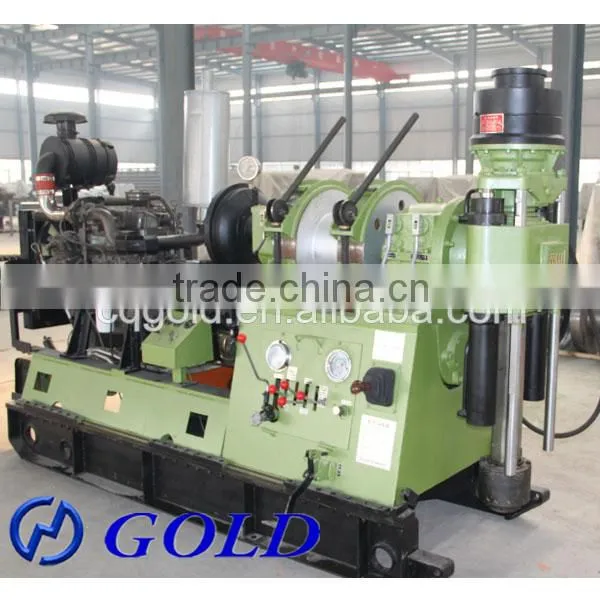

XY-44A Drills To Drill Water Well is a spindle rotary drill rig suitable for both diamond core drill and wire line core drilling as well as SPT. It is used for civil engineering projects, small diameter piling work, mineral exploration, geothermal utilization, water well drilling etc.
- Rig has 8 gear shift and proper speed, 2 reverse speed for handling drilling accident.
- Can be used for both small diameter diamond core drilling and large diameter alloy bit core drilling as well as other engineering project drilling.
- Rig can travel 460mm on frame, enhance the convenience in drilling operation.
- Long spindle travel, reduces the occurring of stalling and bit burnt and improves drilling efficiency.
- Rig is firmly built, gravity center is at lower level, very stable and less vibration in high speed drilling.
- Auto Vehicle gear box and clutch, higher power transmission efficiency, easy assembly.
- Easy assembly and disassembly.
- This rig has hydro retarder (hydraulic brake), drilling is more stable and safe.
| Unity machine parameter | |
| Drilling depth | 600-1400m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Drill rig moving stroke | 450mm |
| Spindle | |
| Spindle speed ( Diesel Engine) | Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min |
| Reverse 65 201r/min | |
| Spindle speed ( Electric Motor) | Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min |
| Reverse 54 167r/min | |
| Spindle stroke | 600mm |
| Spindle max. pressure force | 90KN |
| Spindle inner diameter | 96mm |
| Lifting capacity | 120KN |
| Main Hoist | |
| Max.Single line lifting capacity | 45KN |
| Max.Single line lifting speed | 0-45m/s |
| Wirerope caliber | 17.5-18.5mm |
| Hoist capacity of wireline | 90-110m |
| Roller Diameter | 140mm |
| Wirerope Diameter | 6mm |
| Wirerope length | 450m |
| Mud pump | |
| Type | BW-250 |
| Displacement | 250 L/min |
| Work pressure | 80kg/cm² |
| Water inlet pipe diameter | 75 mm |
| Water outlet pipe diameter | 50 mm |
| Power | |
| Diesel engine | YC4E135-1 100KW |
| Electric motor | Y225S-4 37KW |
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Water Boring Machine exporting and shock absorbing for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd. is the professional manufacturer in Geophysical instruments. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. We won high reputation from our customers mainly from Southeast Asia, Africa, Middle East, also including customers from Canada and some western countries like Germany, France. We do not just do trade business like doing Wireline Coring, but doing the business for providing better Customer Experience! Sincerely welcome your inquiries!
