Specifications
thick wall dual wall heat shrink tube1)excellent insulating and water-proof
2)high shrink ratio(3:1 4:1)
3)ROHS cpmpliant
thick wall dual wall heat shrink tube
Description:
The outer wall is made of Polyolefin and with inner wall of hot melt adhesive. Suitable for electrical applications where good longitudinal water tighness is needed.High shrink ratio( 3:1 or 4:1),having properties of excellent insulating, environmental sealing, and resistant to impact and abrasion. It is designed for applications to seal and protect electrical splices, cable terminations and Joints kits where electrical insulation and water proof are required.
Applications :
1.Protects and seals electronic components, wire splices, back end connectors and cable breakouts.
2. High expansion ratio for repairing damaged wire and cable jacketing without removing connectors. Protection from fluids, moisture and corrosion in outdoor, automotive and marine applications.
3. Rugged protection against abrasion, vibration and flexing.
Product Properties:
1. Shrink Ratio available :2:1/ 3:1/ 4:1
2. Totally shrink temperature:110°C
3. Operating temperature: -55°C~125°C
4. Flame retardant, RoHs compliant,
Specifications of adhesive-lined heat shrink tube:
SRS-3X
Specification |
Before shrinkage(mm) |
After shrinkage(mm) |
Packaging |
|
Inner Diameter-D |
Inner diameter-d |
Wall Thickness-t |
m/roll |
|
φ3.2 |
3.5±0.3 |
1.00 |
0.30±0.05 |
200 |
φ4.8 |
5.2±0.3 |
1.60 |
0.35±0.05 |
100 |
φ6.4 |
6.8±0.4 |
2.20 |
0.35±0.05 |
100 |
φ7.9 |
8.4±0.4 |
2.70 |
0.40±0.05 |
100 |
φ9.5 |
9.9±0.4 |
3.20 |
0.40±0.05 |
1.22 |
φ12.7 |
13.2±0.5 |
4.20 |
0.40±0.05 |
1.22 |
φ15.0 |
15.6±0.5 |
5.20 |
0.40±0.05 |
1.22 |
φ19.1 |
19.6±0.5 |
6.30 |
0.50±0.05 |
1.22 |
φ25.4 |
25.4±0.8 |
8.50 |
0.50±0.05 |
1.22 |
φ30.0 |
≥30 |
10.20 |
0.55±0.05 |
1.22 |
φ39.0 |
≥40 |
13.50 |
0.55±0.05 |
1.22 |
φ50.0 |
≥50 |
17.00 |
0.55±0.05 |
1.22 |
φ64.0 |
≥64 |
21.00 |
0.55±0.05 |
1.22 |
Notes: Other specifications can be offered as requested. | ||||

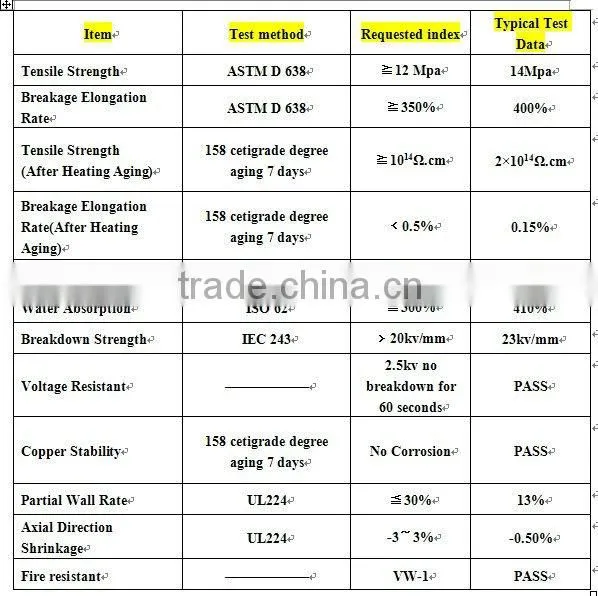

Technical Data sheet

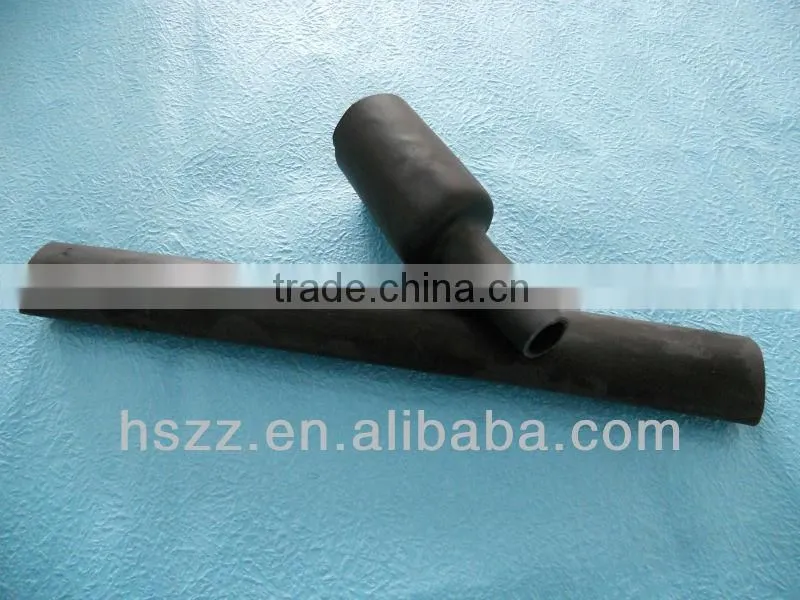

Pictures of adhesive lined heat shrink tube:
