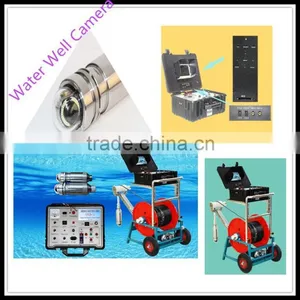

Gold Brand Borehole Inspection Camera and Water Well Inspection Camera

Gold Brand Borehole Inspection Camera and Water Well Inspection Camera thumbnail-1
Gold Brand Borehole Inspection Camera and Water Well Inspection Camera photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
GOLD
Model Number:
GYGD
Contact Supplier Request Quote Chat Now
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name GOLD
Model Number GYGD
Type Digital Camera
Style Box Camera
Sensor CCD
Technology Other, Downhole Monitor Camera
Special Features Waterproof / Weatherproof

Well Camera Water Well Camera

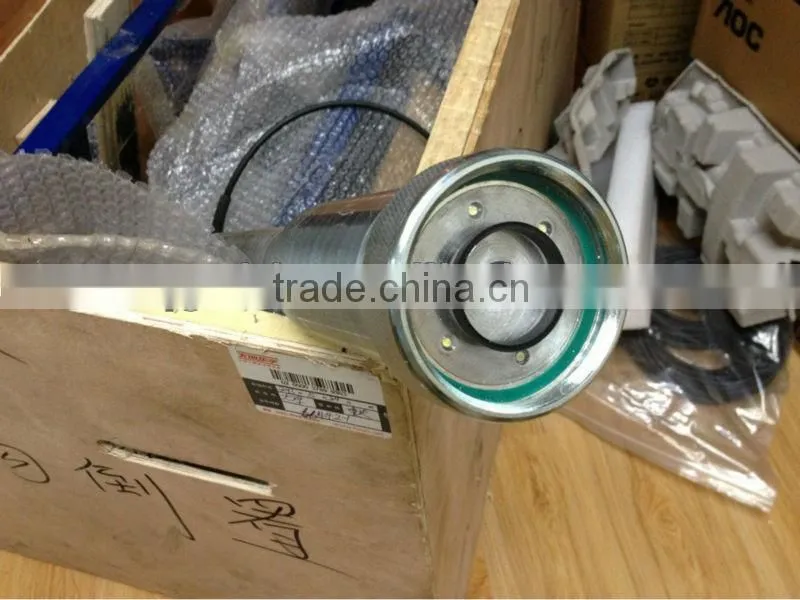

Camera
1. Camera size: 23mmx120mm
2. Sensor size: 1/4 inch
3. View angle: 120°
4. LEDs adjustable
5. Camera work current: 100mA
6. Camera power supply: DC12V
7. Camera light: 12PCS white LEDs
8. Waterproof: IP68
9. Camera glass material: Sapphire glass
10. Camera shell material: Stainless steel

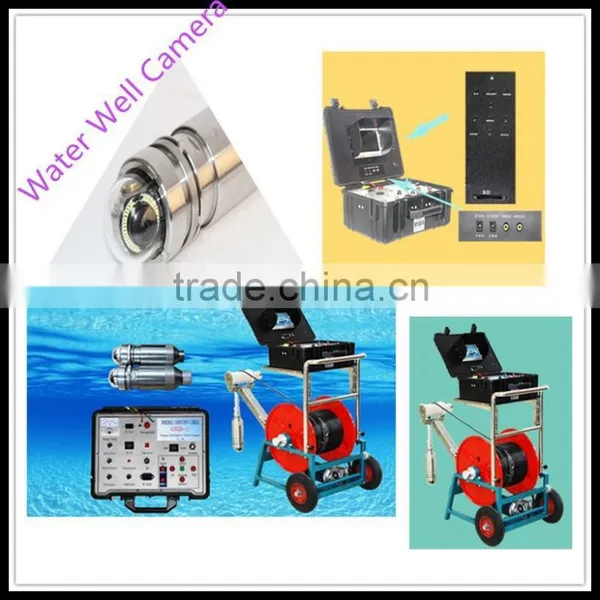

Gold Brand Borehole Inspection Camera and Water Well Inspection Camera

Cable wheel
1. Cable size: Ø 320mmX110(h)
2. Wire material: Fiberglass rod
3. Fiberglass length: 20m(standard)
4. Fiberglass diameter: Ø 4.8mm
5. Fiberglass color: Yellow

Skid
Skid size
1) SKIDS1: Ø 40mm
2) SKIDS2: Ø 80mm

DVR
1. DVR power supply: 12V
2. DVR work cuttent: 200mA
3. Storage medium: SD card(max 32G)
4. Digital clock and digital calendar
5. Total pixels: 720X576
6. 12V 4000mAh li-lion battery(18650), using time: 7hours
7. Input: AC90-260V; Output: DC 12V/1000mA
8. Output cable length: 1.5m
9. DC plug diameter: 2.1mm

Minitor
1. Monitor size: 7inch TFT color monitor
2. Monitor Total Pixels: 1440X234
3. Monitor power supply: DC 12V
4. OSD language: English
5. Up. Down, left, right adjustable
6. 16: 9&4: 3model
7. Sunshade include

Keyboard
1. Size: 323X130X11mm
2. Language: English
3. Keyboard interface: PS2 OR USB
4. Text edit line: PAL 28 letter 15 line; NTSC 26 letter 12 line
5. Max edit page: 4pages
