Help CenterElectrical Heat Shrink Insulation Bus Bar Tube Material
Related Products
-
Polyolefin Heat Shrink Tube for BusbarNegotiableMOQ: 500 Meters -
Bus Bar Insulation Heat Shrink TubeNegotiableMOQ: 500 Meters
-
Low Voltage Busbar Heat Shrink TubeNegotiableMOQ: 500 Meters
-
11kv Heat Shrinkable Busbar Insulation SleevesNegotiableMOQ: 500 Meters
-
11kv Heat Shrink Busbar Insulating Material TubeNegotiableMOQ: 500 Meters
Specifications
electrical heat shrink insulation tube materialHigh flame retardant
Excellent heat resistance
Superior insulation
Flexible
Detailed description of products:
- Commodity: electrical heat shrink insulation tube material
- Features:
High flame retardant: oxygen index greater than 30
Excellent heat resistance: long-term and stable operation under 125 centigrade degree
Low temperature resistance: not brittle crack under -55 centigrade degree
Superior insulation: narrow the distance between interphase and to ground, meet the busbar's insulation requirment
Good flexibility: adapt to complex busbar shape and easy to install
Easy phase separation: have different colors
High security: prevent the short circuit caused by small animals and casualty accident caused by personal contact
- Specification:

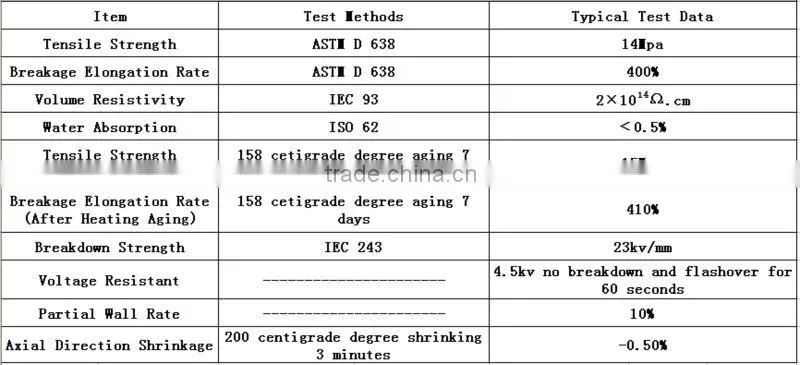

- Performance Index:
- Pictures:
Packaging and shipping:
Packaging: 200m/roll, 100m/roll, 50m/roll, 1.22m/roll etc. (Can be packed or cutted as request)
Shipping:By express(Samples), by air, by sea(Large volume)
Our Services:
1.Payment Terms:T/T transfer, Paypal, Western Union.
2.Delivery time: 10-15 days upon quantity.
3. Samples could be offered free withn 1-5 meters, but the express charge is on the customer’s side.
Company Information:
We are manufactuer of heat shrink tubes for more than 15 years. Our products are widely exported to Asia, North America and Europe etc. We promise to supply you our products in great quality and competitive price.
FAQS:
Things needs to be confirmed before quotation:
1. What type of the heat shrink tube do you need?
1.) Single wall flame retardant heat shrink tube 2.)Adhesive lined double wall heat shrink tube 3.)1KV/11KV/36KV Busbar protection heat shrink tube 4.) Medium wall heat shrink tubes (You can visit our product catergories in our website on alibaba.)
2. What size (inner diameter of the tube)?
Look at the Specification chart.
3. What Color?
Color available: black,white,red,yellow,green,blue, more colors are available upon request
4.Shrink ratio?
2:1, 3:1, 4:1
More heat shrink products supplied:
