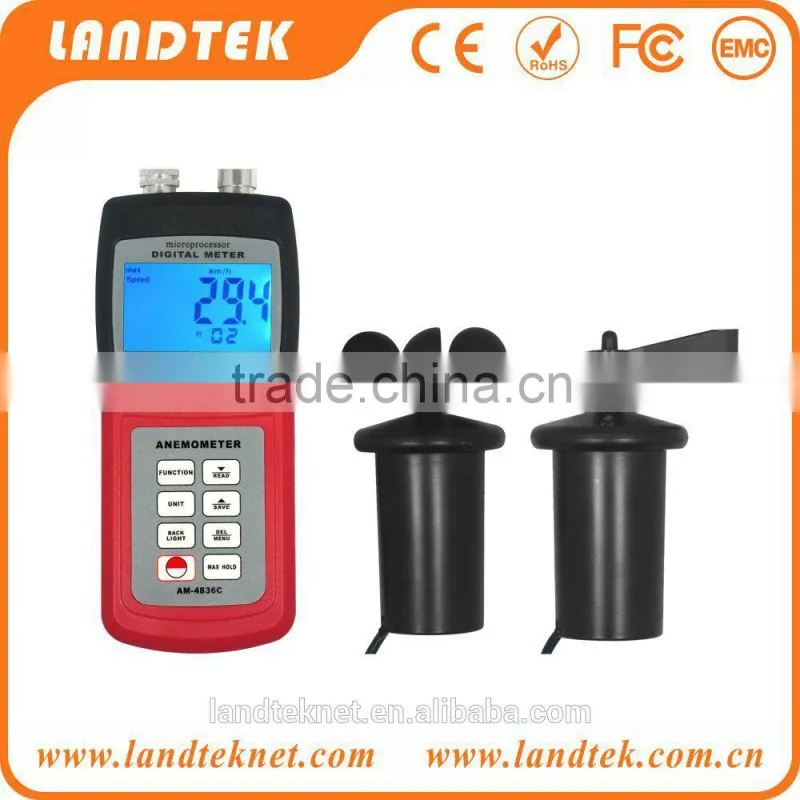

ANEMOMETER AM4836C
Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.
* Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
* Multifunctional. the measurement unit can be selected according to different requirements.
* Maximum value data hold function.
* DATA HOLD function for storing 24 groups of datas.
* Low-friction ball-bearing design allows free vane movement.
* Separate type design, convenient to measure.
* Automatic Power off, 0-9 minutes set by users.
* Use “USB data output” and “RS-232 data output” to connect with PC.
General Specifications:
| Display | 0.5" (13 mm) 4-digit LCD |
| Measurement Units | Air Velocity: m / s, km / h, ft / min, knots |
| Air Flow: CMM ( m³ / min ), CFM ( ft³ / min ) | |
| Beaufort Scale: Force | |
| Wave Height: m | |
| Direction: ° from The North Direction | |
| Temperature: °C , °F | |
| Data Hold | Maximum Value |
| Data Memorized | 24 Groups |
| Sampling Rate | Reading Per Second Approx |
| Sensors | Air Velocity / Flow Sensor: 3-cup Probe |
| Direction Probe: Low Friction Probe | |
| Temperature Sensor: Precision Thermistor | |
| Automatic Power Off | 0 ~ 9 Minutes Set by Users |
| Operating Conditions | Temperature: -10 ~ 60 °C (14 ~ 140 °F ) Humidity: < 80 %RH |
| Power Supply | 4 x 1.5v AAA size ( UM-4 ) battery |
| Dimensions | Main Unit: 156 x 67 x 28 mm ( 6.1 x 2.6 x 1.1 inch ) |
| Velocity Sensor: 65 x 65 x 115 mm | |
| Direction Sensor: 86 x 69 x 115 mm | |
| Weight | 375 g / 0.83 lb(Including Batteries) |
Test Range Specifications:
| Range | Resolution | Accuracy | ||
| Air Velocity | m / s ( meters / sec ) | 0.4 ~ 45.0 | 0.1 m / s | ± ( 2% n + 0.1 m / s ) |
| km / h ( kilo-meters / hour ) | 1.4 ~ 162.0 | 0.1 km / h | ± ( 2% n + 0.1 km / h ) | |
| ft / min ( feet / minute ) | 80 ~ 8860 | 0.1 ft / min | ± ( 2% n + 1 ft / min ) | |
| knots ( nautical MPH ) | 0.8 ~ 88.0 | 0.1 knots | ± ( 2% n + 0.1 nots ) | |
| Air Flow | CMM ( cubic meters / min ) | 0 ~ 9999 | 0.001 ~ 1 | ± ( 2% n + 0.1 m³ / min ) |
| CFM ( cubic ft / min ) | 0 ~ 9999 | 0.001 ~ 1 | ± ( 2% n + 0.1 ft³ / min ) | |
| Beaufort Scale | 0 ~ 12 | 0.1 | ± 0.5 | |
| Direction | 0 ~ 360 ° | 22.5 ° | ± 22.5 ° | |
| Wave Height ( Meter ) | 0 ~ 14 | 0.1 | ± 0.1 | |
| Air Temperature | 14 ~ 140 °F | 0.1 °F | 0.9 °F | |
| -10 ~ 60 °C | 0.1 °C | 0.5 °C | ||
Standard Accessories:
1. Main Unit
2. Carrying Case (B02)
3. Operation Manual
4. Sensor
Optional Accessories:
1. USB, RS-232 Data Cable With Software
2. Bluetooth Data Out put With Software
1 unit is 1kg. carton size: 26*26*13cm
10pcs is 11.5kg. carton size: 45*28*60cm
ship by DHL, FEDEX , UPS, AIR, SEA
One year after service, supply service forever
