Applications:
Used to measure rotative velocity, surface speed, frequency of motor. Applicable to the product departments of motor, fan, paper-product, chemical fiber, washing-machine, automobile, airplane, steamer etc.

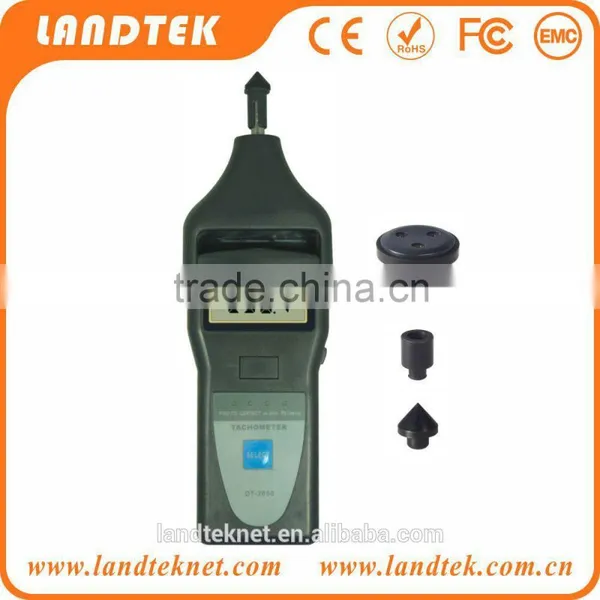

* Multifunctional, one instrument combines PHOTO TACH.(RPM) & CONTACT TACH. (RPM , m / min, ft / min ).
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
| Measuring Range | Laser | 2.5 ~ 99,999 r / min |
| Contact | 0.5 ~ 19,999 r / min | |
| Surface Speed | 0.05 ~ 1999.9 m / min 0.2 ~ 6560 ft / min | |
| Resolution | Rotative Velocity |
0.1 r / min (0.5 ~ 999.9 r / min)
1 r / min (Over 1000 r / min )
|
| Surface Speed |
0.01 m / min (0.05 ~ 99.9 m / min)
1 m / min (Over 100 m / min )
Or 0.1 ft / min (0.1 ~ 999.9 ft / min)
1 ft / min (Over 1000 ft / min )
|
|
| Accuracy | ± (0.05% n + 1 d) | |
| Sampling Time | 1.0 s (Over 60 r / min ) | |
| Test Range Select | Automation | |
| Memory | Max / Min / Last Value | |
| Time Base | Quartz Crystal | |
| Laser Tach Detecting Distance | 50 ~ 150 mm / 2 ~ 6 inch (Typical), Max. 300 mm / 12 inch | |
| Power Consumption | 90 mA (Testing) | |
| Operating Temperature | 0 ~ 50 °C | |
| Power Supply | 4 x 1.5 V AA size (UM-3) battery | |
| Dimensions | 215 x 74 x 32 mm | |
| Weight | 200 g (Including Batteries) | |
Standard Accessories :
1. Main Unit
2. Carrying Case(B01)
3. Operation manual
4. Reflective tape 350mm
5. Cone Adapter(AS35A)
6. Funnel Adapter(AS35B)
7. Surface speed test Wheel(AS35C)
