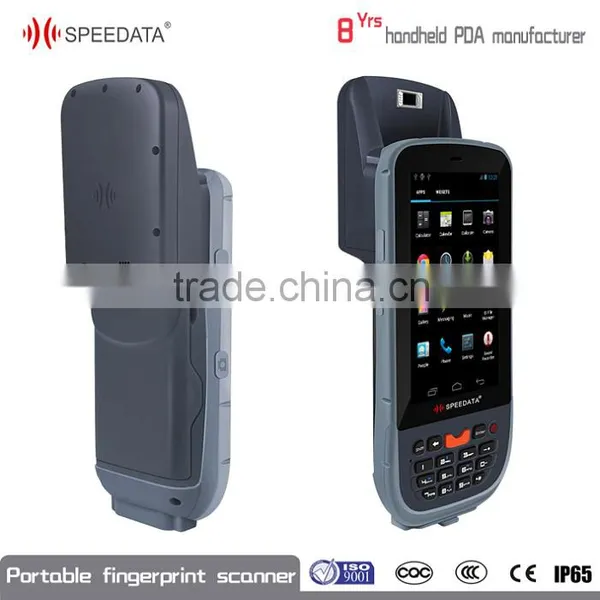

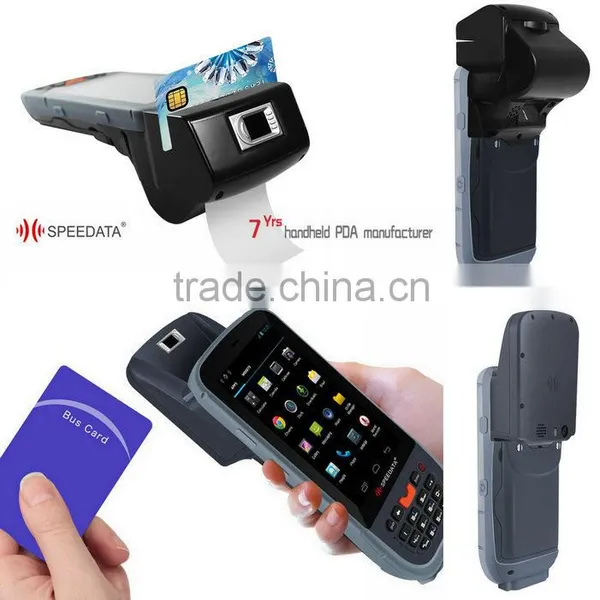

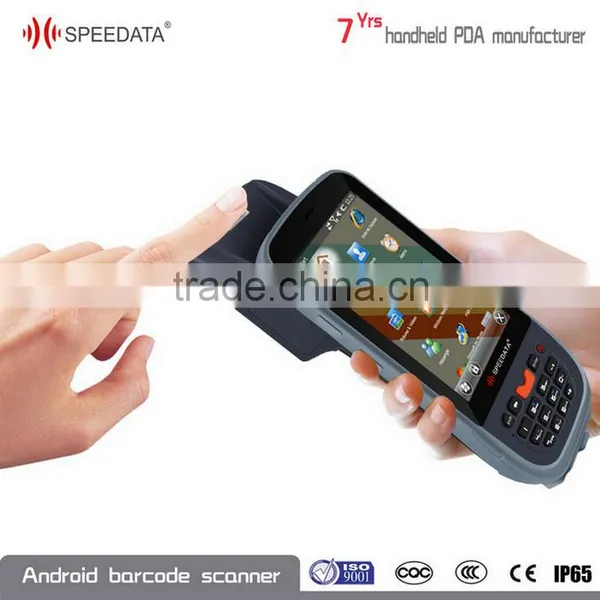

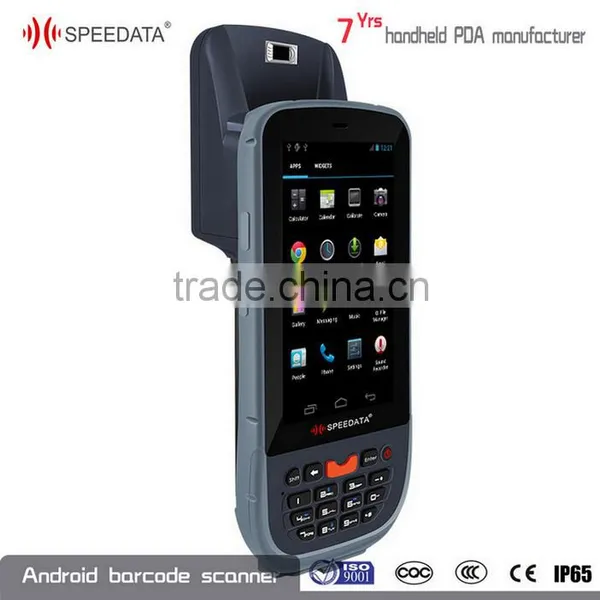

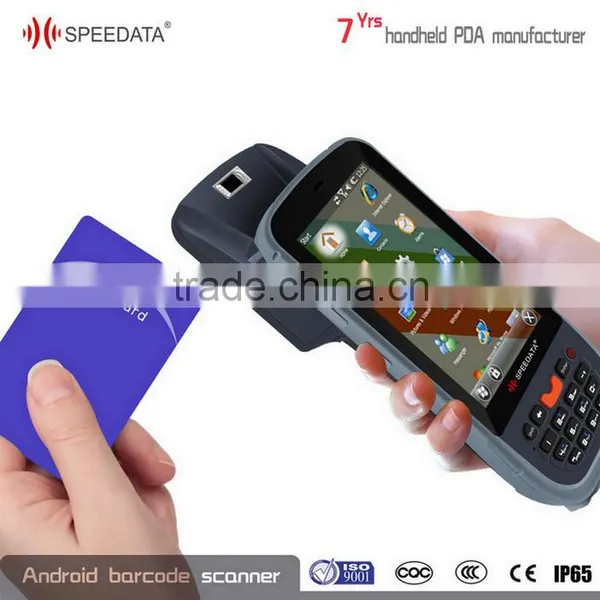

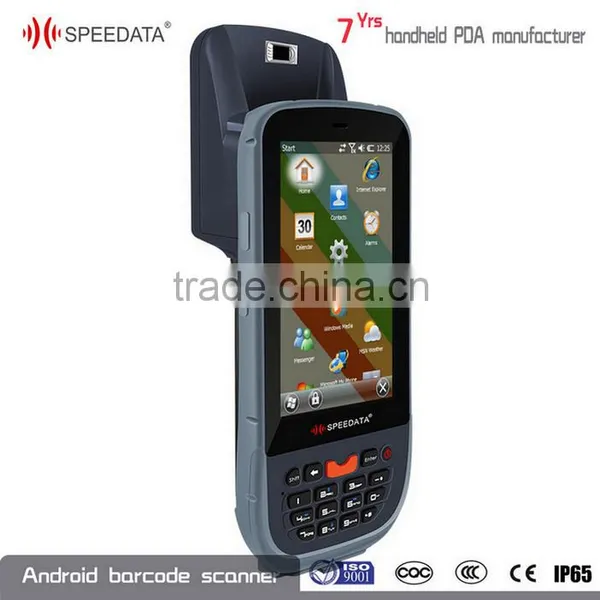

Bluetooth Wifi Sim Card Uhf Rfid Reader Modules with Cheap Price in Android Rfid Reader Scanner, Long Range Distance 2M
Advantages of KT45 android uhf rfid reader scanner:
- KT45 has an open platform and flexible function configuration,
- It has the most popular and current operating system Android4.4.2 with multiple customized modulars of 1D/2D barcode, RFID, GPS, WLAN, far infrared, fingerprint, print function module ,etc.
Specifications of KT45 android uhf rfid reader scanner:
- 4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment
- 800MP camera with high definition ,it's easy to collect all kinds of image information
- Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc
- Android 4.4.2 Operation System, More Stable and Reliable,provide complete SDK and technical support to make further app development easily
- Special structure and external cushion protection design, solid and wearproof body shape
- Matched with the machine seat charger, to ensure the charging interface durable,it's more quicker and easier
- IP65 Industrial Class, 1.5M drop protection
- Multiple Functions optional: card reader, printer, fingerprint, infrared reader, temperature, etc
| Development Environment | |
| Operating System | Android 4.4.2 |
| SDK | Software Development Kit |
| Language | Java |
| Fundamental Characteristics | |
| CPU | ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3) Quad-core 1.3Ghz |
| Memory | 1GB DDR3 RAM + 8GB Frash ROM |
| Storage | Micro SD/TF card max.32GB expansion |
| Display | 4.5-inch IPS 480 * 854 Multi-point touch capacitive screen |
| Communications | |
| WWLAN | GSM band 850/900/1800/1900MHz, |
| Class 12 GPRS, | |
| EDGE UMTS 850/900/1900/2100MHz HSPA | |
| WiFi | 2.4Ghz 802.11 b/g/n |
| Bluetooth | V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE) |
| GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
| DGPS (please check options) | |
| Physical Characteristics | |
| Dimensions | 175 * 76 * 28mm |
| Weight | More 400g (includes main battery) |
| Expansion Slots | 1*PSAM, 2*SIM |
| Battery | rechargeable li-ion battery 4500mAh 3.7V |
| Or rechargeable li-ion battery 2250mAh 7.4V (if with printer) | |
| 500hours standby time, Up to 6hours calling time, 4hours charging time | |
| Camera | 8MP Camera |
| Video | Support still image and video capture |
| Audio | 3.5mm 4way plug |
| Keypad | Front 17keys, Side 4keys |
| Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
| USB Host (Optional), RS-232 interface (Optional) | |
| User Environment | |
| Operating Temp. | -10 to 50℃ |
| Humidity | 10%RH - 90%RH (Non-condensing) |
| Protection class | IP65 |
| Drop resistance level | 1.5M |
| Barcode scanners (optional ) | |
| 1D Linear Scanner (Optional) | |
| 1D scanner | Symbol SE955 (Optional 1) |
| Newland EM1300 (Optional 2) | |
| Honeywell N4313 (Optional 3) | |
| 2D Imager Scanner (Optional) | |
| 1D/2D scanner | Symbol SE4500 (Optional 1) |
| Newland EM3000 (Optional 2) | |
| RFID readers | |
| LF RFID reader | 134.2khz, ISO 11784/11785, FDX-B/HDX (Optional 1) |
| 125khz (Optional 2) | |
| HF RFID reader | 13.56MHz, ISO 14443A/B, ISO 15693 |
| NFC reader | Include 13.56MHz, ISO 1443A/B |
| UHF RFID reader | 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset |
| 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader | |
| Biometric fingerprint (optional ) | |
| Fingerprint | UPEK TCSI (meet the FBI’s FIPS-201) (Optional 1) |
| Fingerprint | UPEK TCS2SS (Optional 2) |
| Other Modules (optional ) | |
| DGPS | Ublox LEA-6T (with RTK) |
| PSAM | ISO7816 (SIM) |
| MSR | Compatible with one, two, three track(without PCI, EMV security certification) |
| IC card reader | ISO7816 ID-1 |
| Printer | Integrete 2inch Direct thermal line printing |
| Far Infrared Meter Reading | IEC62056-21 (IEC1107) communication protocol |
| 433Mhz | Require customers to provide 433Mhz wireless modules or specifications |
| Zigbee | Require customers to provide 433Mhz wireless modules or specifications |
|
|
|
|
Beijing Speedata Technology Co., Ltd (stock code: 832442 ), founded in 2008, is a provider of IoT (Internet of Things) solutions and OEM/ODM manufacturer of wireless hardware terminal and software solution, focusing on such wireless network enabling technologies as 1D/2D Barcode scanner, RFID , 433M, MSR, ZigBee, PSAM, and IC card reader...
We are headquartered in Beijing, with sales/R&D offices in Shanghai, Shenzhen, Dalian, and Tianjin city of China, and two manufacturing facilities, one in Beijing and one in Tianjin.
At the same time, we successfully cooperated with Foxconn by OEM/ODM in Shenzhen.
1. R & D technology support
- Our R & D team have around 28 software & hardware hightech engineers, 27% of the whole employees, who have professional background in Electrical Engineering.
- Atthe same time, our director Mr shao and genernal manager Mr Wu have extensive experiences in hardware development and product management.
- since its reasonable structure and professional ability , our products become more stable and compatible.
As expected, we have built up a strong spirit of collaboration teamwork and gained a good reputation from our customers.
2. Strong customized capabilities
- Speedata serves wide industries and fields, such as the electric power, mapping, egovernment, logistics, traceability management, fixed asset management.etc. we have accumulated rich and extensive experiences in those industries.
- we pay more attention to design personalized software and hardware products as well as whole solutions development.
- The products will develop in the direction of the platformization and modularization and put technology into the public platform to simplify for its secondary development.
At the same time, we supply core board customization, sensors and modular development to combine with platform quickly to meet customers demand.
1.As a hardware PDA producer, We also offer OEM/ODM design and manufacturing service for hardware required for Data collector terminal PDA, including
- Brand & Logo
- Different colors
- Multiple modules integration
- Wide industrial and business solutions
- Competitive and diverse price ranges
1. Price ranges |
Factory direct with competitive and wholesale price with different demands |
2. Modules Options |
Over 18 kinds of module functions are optional to meet your demands |
3. 3 Operation System |
3 Operation System for inference: Win Mobile/CE and Android |
4. Colors Options |
4 kinds of colors to choose: yellow, green, grey and blue. |
5. Customizations |
Support OEM/ODM services with LOGO or Mainboard for our customers by Foxconn |
6. Wide Solutions |
it supplies wide and various industrial solutions to make effective enterprises. |
More customized services are provided to make your enterprises more effective and efficient.
2.As for software integration , We not only support 18 kinds of multiple modules but also supply 3 compatible operating systems. Those Including
- The most popular Android 4.4 and Windows CE or Mobile
- 1D/2D barcode scanner
- LF/HF/UHF RFID as well as NFC RFID Function.
- Biometric fingerprint reader
- Thermal printer
- DGPS/ PSAM/ 433M/ IC Card/ MSR/ IR Meter Reading
More Modulars and functions are developed as below:
| 1.1D/2D barcode scanner | 5.Thermal Printer | 9. 433M | 13.Bluetooth /WiFi |
| 2.Fingerprint reader | 6.IC reader | 10.ZigBee | 14.GPS/GPRS |
| 3.LF/HF/UHF RFID reader | 7.PSAM | 11.IR Meter reading | 15.2G /3G /4G |
| 4.NFC RFID reade | 8.MSR reader | 12.Temperature Reader | 16.Camera/Video |
……
Question 1: what's your barcode scanner MOQ?
Answer: the MOQ of speedata barcode scanner barcode scanner is 1 pcs.
Question 2: how long is the delivery time?
Answer: The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Answer: Yes, Of course. We can provide 1 sample of barcode scanner PDA for your testing.
Question 4: What's the total price for 1 sample?
Answer: As a manufacturer of barcode scanner terminal PDA.the more you buy,the cheaper it'll be.
the sample price is a little bit higher than the common wholesale price.excluding the freight fee.
Question 5: Are you a manufacturer of barcode scanner PDA?
Answer: Yes, we are a chinese listed company of R&D and producing barcode scanner hardware and software. and also we cooperate with Foxconn for OEM.
Question 6: what kind of services do you support?
Answer:1.We provide you Free SDK and technical support for your barcode scanner.
2.we also provide ODM/OEM customization services according to your needs.
3.We support 13months Warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it costs 0.5% for each per year.
Question 7: what's for payment term and delivery term ?
Answer: 1.It's generally 30%-100% TT in advance for all orders for the payment term.
with supporting via bank card, Paypal or West Union.
2.FOB Shenzhen for Delivery term.
Question 8: who are your customers?
Answer: 1.That's quiet a serious question, but Our products are sold worldwide in South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get great feedback from our customers.
IF you need more information and details, Please Feel free to contact us. Thanks for your attention.
