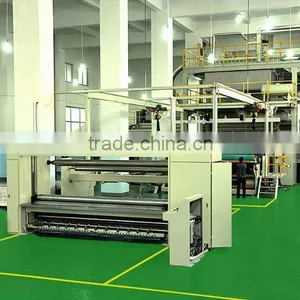

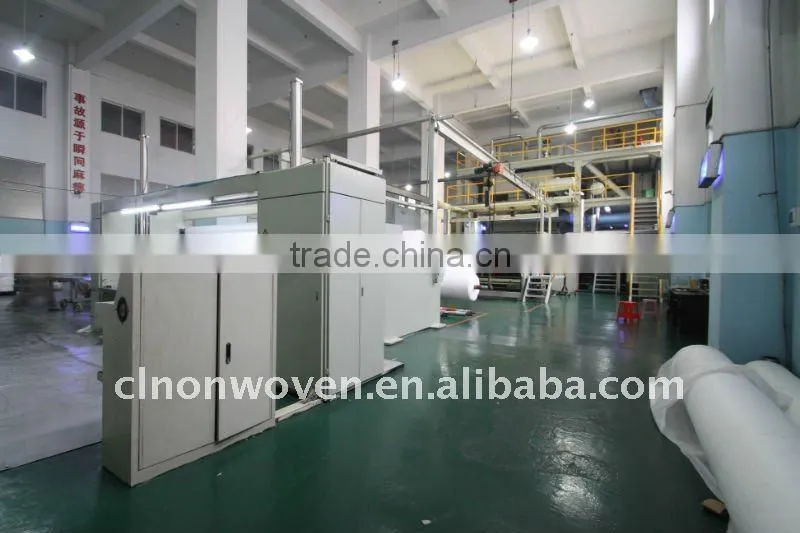

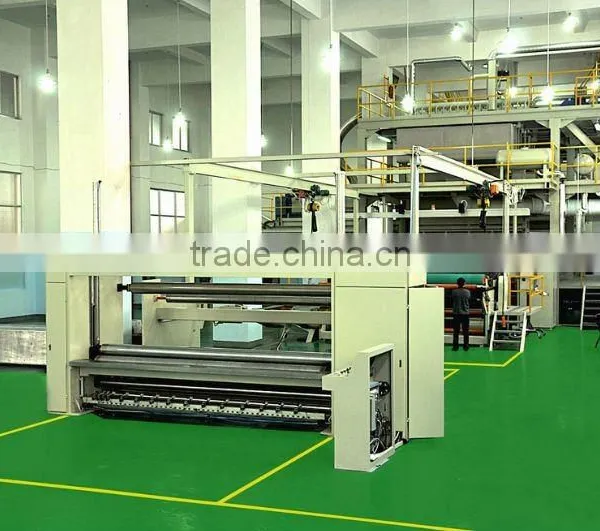

Help Center2200MM PP Spunbond Non Woven Fabric Machine
Related Products
-
2400MM PP Spunbond Nonwoven Fabric Machine Single BeamNegotiableMOQ: 1 Set -
2400MM PP Spunbond Non Woven Fabric Making Machine Single BeamUS$ 1 - 60,000MOQ: 1 Set
-
2400MM PP Spunbond Nonwoven Fabric Making Machine Single Beam ( Brand C.L)NegotiableMOQ: 1 Set
-
2400MM PP Spunbond Nonwoven Fabric Making Machine( Brand C.L)NegotiableMOQ: 1 Set
-
2400MM PP Spunbond Nonwoven Fabric Making Machine Double Beam ( Brand C.L)NegotiableMOQ: 1 Set
Specifications
We designed and manufactured production line and nonwoven are competitive among the similar machines all over the worldDear customer Welcome visit our company alibaba web site .below is my company and parts of sms nonwoven machinery introduce .
C.L. Enterprise combining SMMS, PP nonwoven production line manufacture and R&D, production sales for SMS, PP, PET, PLA post-processing,bicomponent,,nonwovens.
C.L. is a comprehensive joint stock-holding partnership enterprise which also act as vice-president unit of CHINA as one of the limited liability company.
C.L. has great technical strength and pay lots of attention to innovation. Our specially designed and manufactured production line and nonwoven are competitive among the similar machines all over the world
Our company has past ISO-9001-2008 quality certificated system, metrological measurement system and standardization system .
we have exported and installed a lot of machine at home and aboard . we provide whole system of installation,commissioning,training service .By doing all of this for years,we won a good reputation at home and aboard..
PP SPUNBOND NON WOVEN FABRIC MAKING MACHINE
1. Generality
The design conception of this project is as following:
PP chips ---- Blending and Feeding --- Melting in the Extruder --- Prefiltration
Recycled Materials
Colouful PP Particles -- Spinning -- Cooling with the Side Wind -- Air Dragging
Web forming -- Thermalbonding -- Winding -- Cutting -- End Products
From the figure it can be seen that this PP spunbonding line includes the following parts:'
a. Engineering : Electricity supply and distribution, Airconditioner and Cooling system.
b. Spinning : PP chips feeding, Melt and Extruding, Spinning
c. Web: Web forming , Thermalabonding and Winding
d. Cutting : Semi-manufactured goods, Cutting , Packing
e. Working time is calculated with four groups alternative. It is about 333 days, 8000 hours per year.
2. Production ability, products specification and quality standard
a. Ability : 2750 T/Y with the product of 40 g/sq.mtr
b. Products specification : Weight 10-200 g/sq.mtr, width 2.2 meters
c. Quality Standard: According to the international standard of PP spunbonding nonwovens.
3. Specification and consumption of raw material
a. Specification
Item |
Unit |
Index |
MFI |
G/10mm |
20-40 |
Melt Point |
ºC |
165 |
Isotacticity |
% |
>95 |
Ash Content |
PPM |
<200 |
b. Consumption
Sequence |
Type |
Specification |
Consumption per Year |
Remark |
1 |
PP |
2750T |
8T per day |
4. Processing Parameters
a. Spinning
I. Feeding System : Max 800 Kg/h of raw material, Max 10% of the raw material for the colorful PP articles
II. Extruder temperature : (Adjusted according to the different MFI of different material )
Cooling Section: |
Section one: 200-203 ºC |
Section two: 210 - 240ºC |
Section three: 220-250ºC |
Section four: 220-250 ºC |
Section five: 220-250ºC |
Section six : 220-250ºC |
Flange section: 220-250ºC |
Flexible pipe section:220-250ºC |
Extruder rotate speed: 20-80rpm |
|
Extruder diameter:Ø 150mm, L/D = 30:1 |
III. Spinning manifold:
Manifold temperature 220 - 260ºC
Material temperature 200-240ºC
IV Metering Pump:
Specification: one pumps of 250cc/r
Rotate speed: 0-40rpm
b. Web forming
I. Suction : Max suction speed is 15m/s and the total air quantity is 20000 m³/h
II. Air distribution : Uniform at the cross direction, Decreasing from the airjet to the web former at the machine direction.
c. Thermalbonding
Width : 2200 mm Max speed: 150m/min
Roller Type: The up one surface is fluting and the down one surface is smooth.
Roller diameter: 420mm Max temperature:260ºC
Bonding area: 19.01% Pressure: 50-100N/mm
d. Winding
Max width: 2200mm Max diameter: 1200mm
Max machinery speed:150m/min Max prodn.speed:150m/min
e. Cutting
Max machinery speed: 300m/min Effective width: 2200mm
Max rewinding diameter:800mm
f. Module cleaning
Cleaning oven with max temperature 450ºC processing temperature
420-450º and four hours heating time.
If you need more information about the machine please contact us ,we have professional sales manager will contact to you ,send you more detail information about sms spunbond non-woven machine
