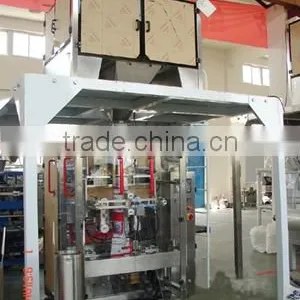

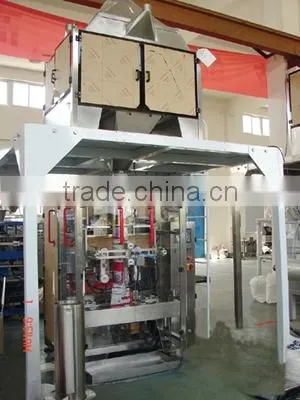

(VFS7300) Rice, Seeds & Nuts Automatic Packaging Machine Line

(VFS7300) Rice, Seeds & Nuts Automatic Packaging Machine Line thumbnail-1
(VFS7300) Rice, Seeds & Nuts Automatic Packaging Machine Line photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Bags, Film, Foil, Pouch
Contact Supplier Request Quote Chat Now
Anhui Zengran Packaging Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Chemical, Food, Medical
Packaging Type Bags, Film, Foil, Pouch
Packaging Material Metal, Paper, Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage AC220V/50Hz, 1phase or Per customer specification
Power 5KW
Place of Origin Anhui, China
Brand Name zengran
Model Number VFS7300
Weight 1200KG
Certification CE, ISO9001
After-sales Service Provided Engineers available to service machinery overseas



(VFS7300) Rice, Seeds & Nuts Automatic packaging machine line(VFS7300) Rice, Seeds & Nuts Automatic packaging machine line(VFS7300) Rice, Seeds & Nuts Automatic packaging machine line

Application:

   The unit of packaging machine is ideally suited for automatic weighting filling and packaging granules, dry pieces products: Such as rice, Dried Foods, Tea & Coffee, Pet Foods, Nuts & Pulses, Seeds and some heavy density powder like Detergent etc



Advantage:

  • Machine fully controlled by Siemens or Omron PLC & Touch-Screen
  • Manual  or automatic operation( Four weighting hopper working)
  • Minute capacity can automaticlly display on Touch screen
  • Precision load cell weighing mechanism with mechanical overload protection
  • Film transport system and horizontal Jaw motion both drived by Panasonic
  • Sturdy weigh bucket with servo motor operated door with sensor control
  • Safe quick change of tube and collar by just pull out the braket
  • Outlet chute with optional extension to suit application
  • Optoelectronics detect film position on collar to correct film excursion
  • Product hopper with adjustable height
  • Electrical photo sensor inducting color code to contol bag length
  • Encapsulated vibratory feeders
  • Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
  • Materail main feedng and fine feeding together working keep a good accuracy
  • independent temperature adjustment& code printing
  • Instructional machine manual including electrical wiring drawing
  • Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.
  • Reliable, accurate and easy to clean
  • The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt
  • Can euqiped with hole punching system to puch hole on the bag for handling .





Technical Specification:

Bag type

Pillow type bag;Gusseted bag (Option)

Maximum Capacity

up to 5 kilograms

Minimum Capacity

depend on product characteristics but nominally 25 grams

Weighing accuracy

±0.2% dependant on products characteristics

Speed

14 to 50 bags/min

Bag Length

50 to 460mm (1.9to 18in)

Bag Width

80 to 350mm (3.1 to 13.8in)

Reel Film Width

≤730mm (28.7in)

Film thickness

0.04-0.12mm (40-120mic.)

Reel Outer Dia.

500mm (19.7in)

Reel Inner Dia.

75mm (2.9in)

Voltage

AC220V/50Hz, 1phase or Per customer specification
