Specifications
1, Can be equipped with weighing & filling system2, Pillow type or gusseted bag
3, Adopt film automatic correction device

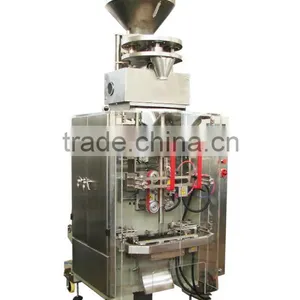

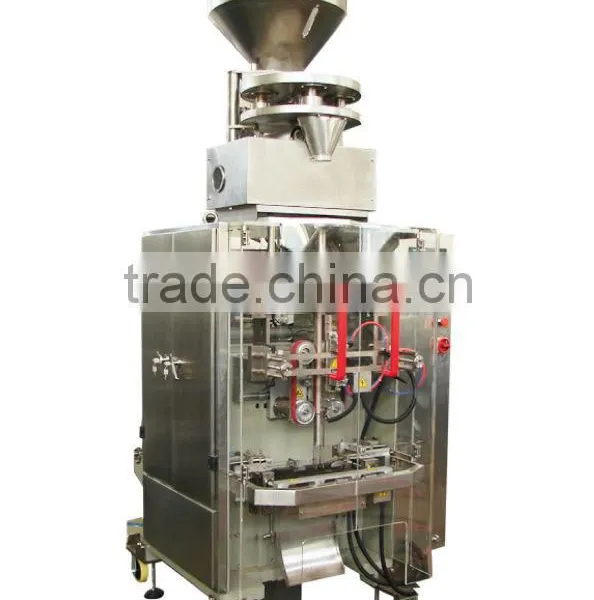

This unit of machine is newly especially developed for salt packaging. It can independently complete the weighing, bag making, filling (air filing or exhausting), sealing, hole ponching, code printing, and bag counting etc. It including cup filling system, packaging machine and elevator. It adopt automatic correction device.
Bag Type: |
Pillow Type Bag; Gusseted bag |
Capacity: |
100-500g |
Speed: |
50-80BPM |
Weighing Accuracy: |
±0.1 depending on products characteristics |
Bag Size: |
50 to 2800mm (L); 80 to 180mm (W) |
Reel Film Size: |
≤420mm |
Reel Outer Dia.: |
400mm |
Reel Inner Dia.: |
75mm |
Power Consumption: |
6KW |
Compressed Air Requirement: |
0.6MPa 0.36m3/min |
Advantage:
- Machine fully controlled by Siemens or Omron PLC & Touch-Screen.
- Minute capacity can automaticlly display on Touch screen.
- Film transport system and horizontal Jaw motion both drived by servo motor.
- Optoelectronics detect film position on collar to correct film excursion.
- Electrical photo sensor inducting color code to contol bag length.
- Independent temperature adjustment& code printing system.
- Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.
- Can euqiped with hole punching system to puch hole on the bag for handling
