4V Series Pneumatic Directional 3 Position 5 Port Single Control Solenoid Valve
US$ 10 - 200
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pilot
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VDF Series Water Solenoid ValveUS$ 20 - 200MOQ: 10 Pieces -
Lead Wiring Type Pneumatic ValveUS$ 10 - 200MOQ: 10 Pieces
-
Solenoid Valve, 2 Ways Solenoid ValveUS$ 10 - 200MOQ: 5 Pieces
-
2SP Series Plastic Solenoid Valve, Small Orifice Plastic Solenoid Valve, 2PS Series 2 Position 2 Port Direction Solenoid ValveUS$ 10 - 100MOQ: 10 Pieces
-
SMC Type VF Series 5 Ports Solenoid ValvesUS$ 2 - 13.41MOQ: 50 Pieces
Standard or Nonstandard
Standard
Structure
Pilot
Pressure
Medium Pressure
Power
Solenoid
Material
Brass
Temperature of Media
Medium Temperature
Media
Water
Port Size
M5 M6 1/8" 3/16" 1/4" 5/16" 3/8" 1/2" 3/4" 1" 2"
Place of Origin
Zhejiang, China
Model Number
4V
Brand Name
VPC or OEM brand
Specifications
Solenoid Valve1.Acting Type:direct acting
2.Coil Type:DIN type/Flyling lead
3.Protective Class:IP65(DIN40050)
4.100% test

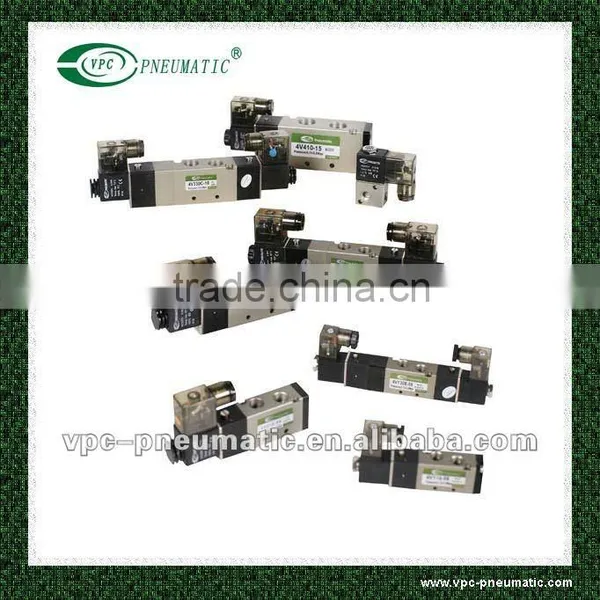

4V series directional solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2", while 5/2 types have single solenoid type and double solenoid type, Single solenlid valves is repositioned by the spring, and the double solenoid vavle is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position.

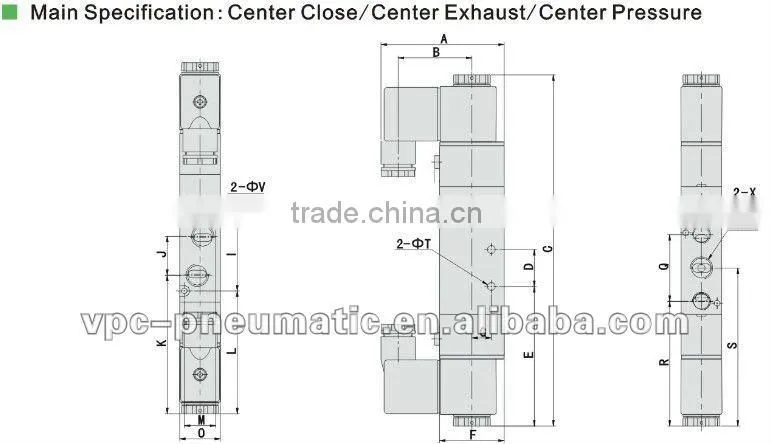

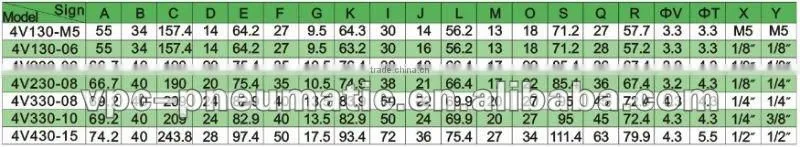

Specificaitons of 4v Series Solenoid Valve (3 Position 5 port center pressure)
| Model | 4V130P-M5 | 4V130P-06 | 4V230P-06 | 4V230P-08 | 4V330P-08 | 4V330P-10 | 4V430P-15 |
| Working Medium | Clean Air (40 Micrometer Filteration) | ||||||
| Ways | 3 Position 5 Port | ||||||
| Acting Type | Direct Acting | ||||||
| Joint Size | Import=M5 Export=M5 Exhaust=M5 |
Import=1/8 Export=1/8 Exhaust=1/8 |
Import=1/4 Export=1/4 Exhaust=1/8 |
Import=1/4 Export=1/4 Exhaust=1/4 |
Import=3/8 Export=3/8 Exhaust=1/4 |
Import=1/2 Export=1/2 Exhaust=1/2 |
|
| Sectional Area | 5mm2(CV=0.28) | 9mm2(CV=0.5) | 12mm2(CV=0.67) | 12mm2(CV=0.67) | 18mm2(CV=1.0) | 18mm2(CV=1.0) | 30mm2(CV=1.67) |
| Working Pressure | 0.15~0.9Mpa | ||||||
| Guarantee Pressure | 1.2Mpa | ||||||
| Working Temperature | -5~60°C | ||||||
| Voltage Range | -15%~10% | ||||||
| Heat Resistant Grade | B | ||||||
| Protective Class | IP65(DIN40050) | ||||||
| Coil Type | DIN Type,Flying Leads | ||||||
| Max Acting Frequency | 3 Times/s | 3 Times/s | 3 Times/s | ||||
