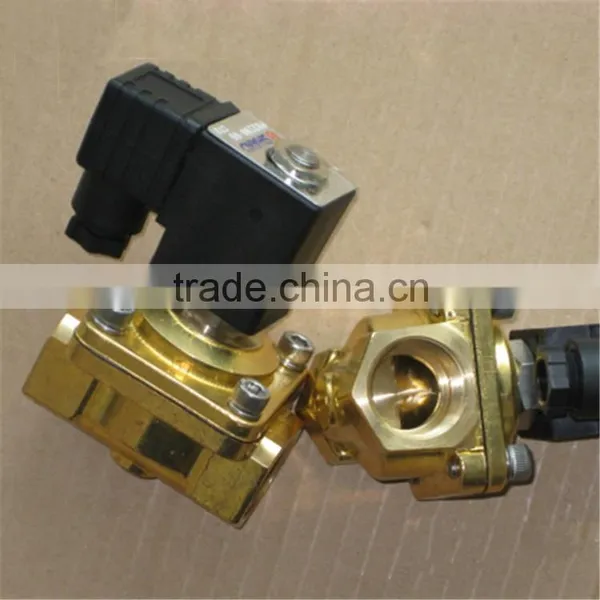

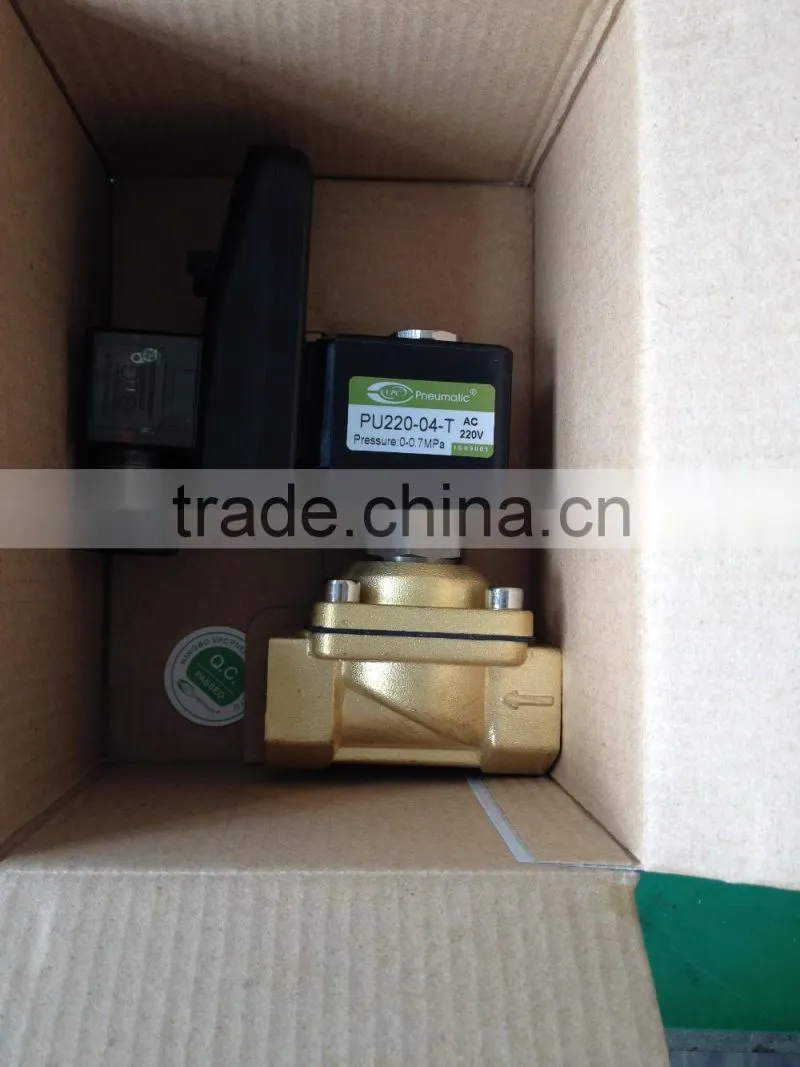

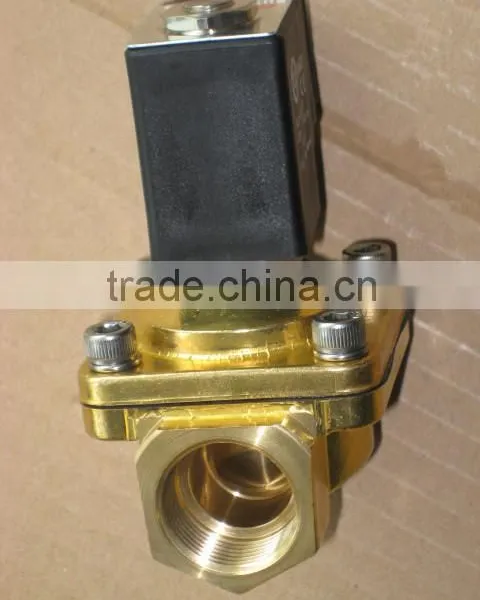

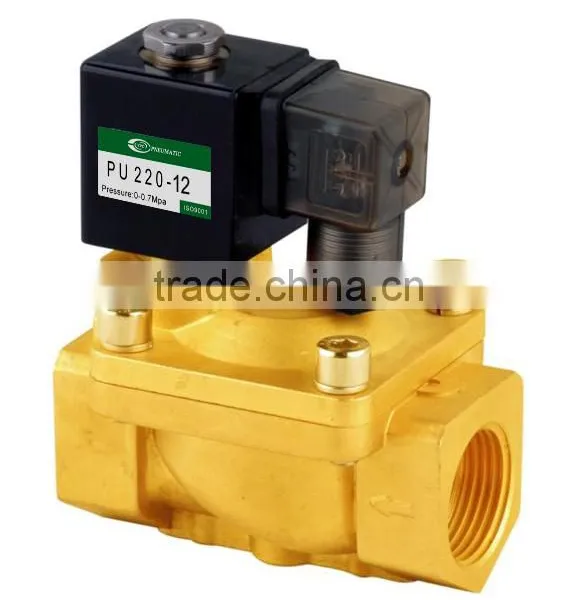

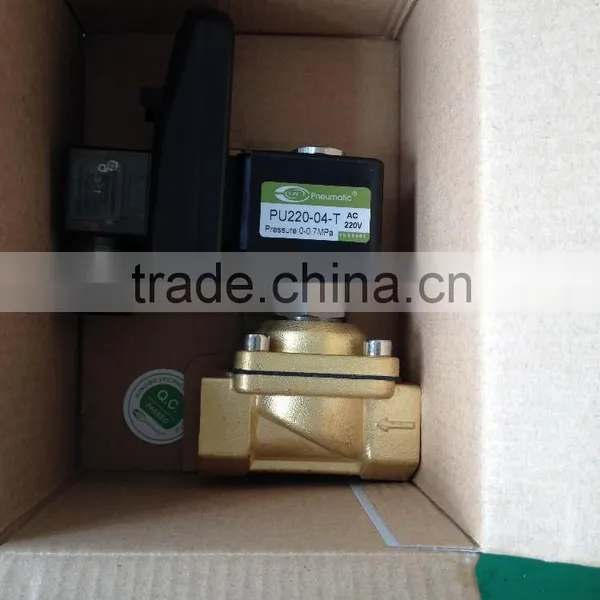

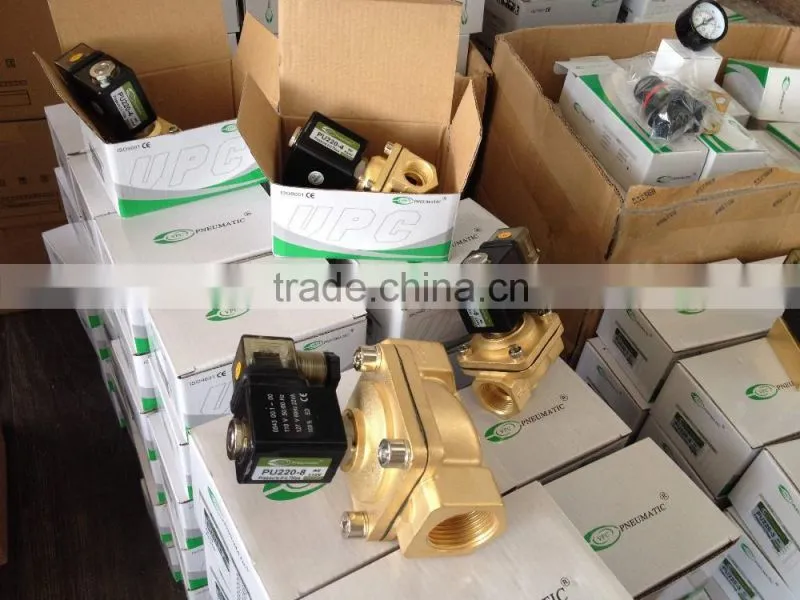

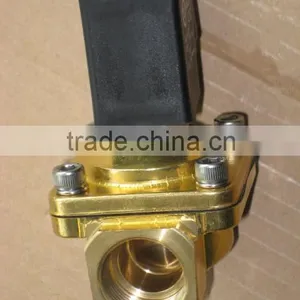

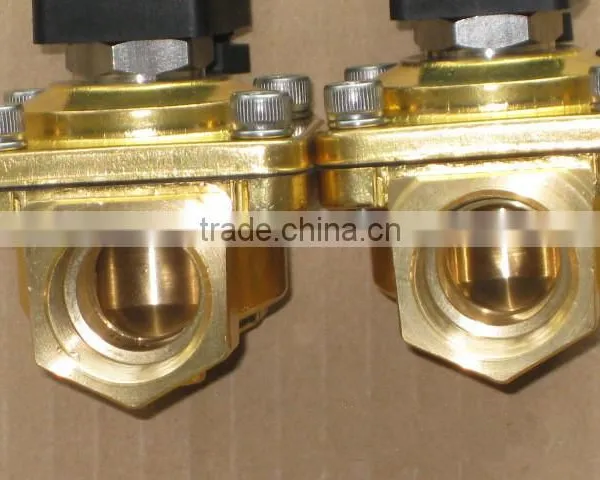

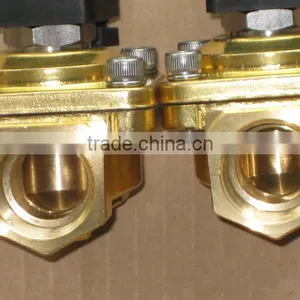

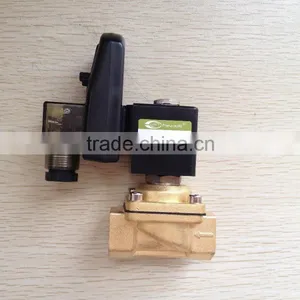

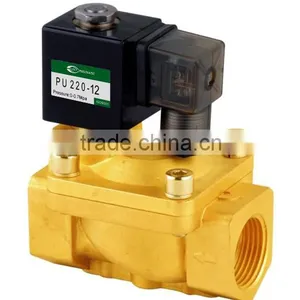

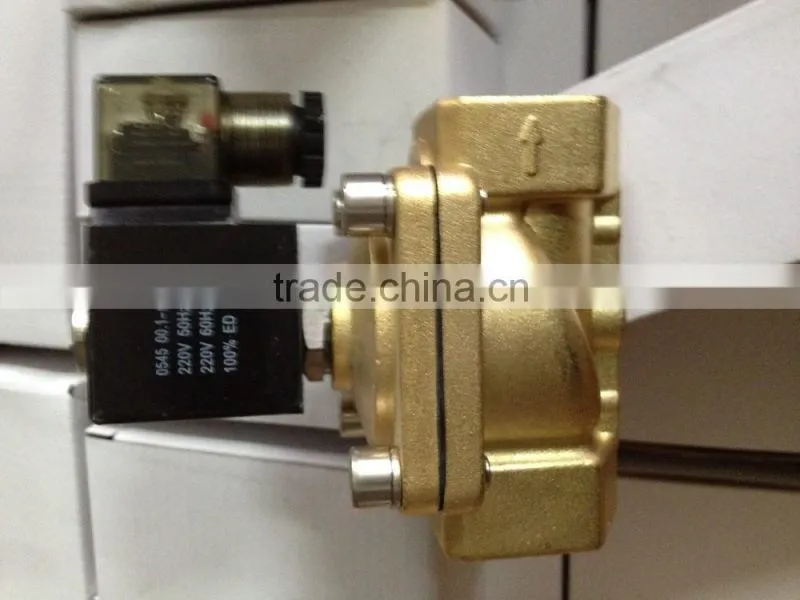

PU220-04 AC220V 2/2 Way Water Solenoid Valve
US$ 11.8 - 11.8
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 Position 5 Port 4M Series Numur Solenoid Valve 4M210-08US$ 4.5 - 4.5MOQ: 100 Pieces -
Y-type Plastic Angle-Seat ValveUS$ 26.5 - 26.5MOQ: 10 Pieces
-
2 Way Full Stainless Steel Angle Seat Valve With Pneumatic ActuatorUS$ 48.5 - 48.5MOQ: 10 Pieces
-
15mm Micro Solenoid Valve for Sock Knitting MachineUS$ 2 - 10MOQ: 50 Pieces
-
Manifold Base for 15mm NC Solenoid ValveUS$ 0.8 - 20MOQ: 50 Pieces
Standard or Nonstandard
Standard
Structure
Diaphragm
Pressure
Medium Pressure
Power
Solenoid
Material
Brass
Temperature of Media
Medium Temperature
Media
Water
Port Size
1/8" 1/4" 3/8" 1/2"
Place of Origin
Zhejiang, China
Model Number
PU220-04 2 Way Water Solenoid Valve
Brand Name
VPC 2 Way Water Solenoid Valve
Application
General
Summary:
2/2 Way Water Solenoid Valve
Direct acting for fast on / off
Durable stainless Armature
Ex-proof coil are avaiable
Good for low pressure operation
Compact and good appearance.
Directacting,diaphragm structure,can work at zero pressure.
Coil made from H class wire,thermosetting plastic encapsulatin,reach IP65 protection class with plug.
Specifications:
| Model | PU220-01 | PU220-02 | PU220-03 | PU220-04 | PU220-06 | PU220-08 |
| Working Medium | Air,Water,Oil | |||||
| Motion Pattern | Guide Type | |||||
| Type | Normal Close Type | |||||
| Material | Brass | |||||
| Diaphragm type | NBR, VITON EPDM | |||||
| Joint Pipe | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" |
| Orifice(mm) | 1.5 | 2.3 | 8.0 | 13.0 | 20.0 | 25.0 |
| CV Value(m3/h) | 0.10 | 0.18 | 1.00 | 4.00 | 8.60 | 11.00 |
| Operation Fluid Viscosity | 50CST | |||||
| Working-pressure | 0~0.7MPa | |||||
| Max.Pressure Resistance | 1.05MPa | |||||
| Operating Temperature Range | -5~+150°C | |||||
