Help CenterInfrared Beams Fence Detector
Related Products
Name

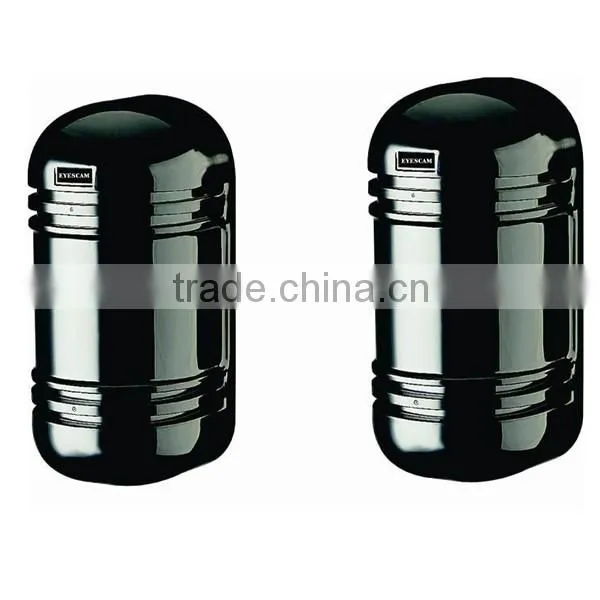

Infrared beams fence detector
Features
Twin synchronized pulsed beams desgned for greater stability
Design durability
Frost and new prodetion
High grage aspherical lens
99.5% beam blocking stability
Adjustable beam interruption period
Quick optical and voltage alignment to speed up positioning
A.G.C (automatic gain control) circuit
Spercifications:

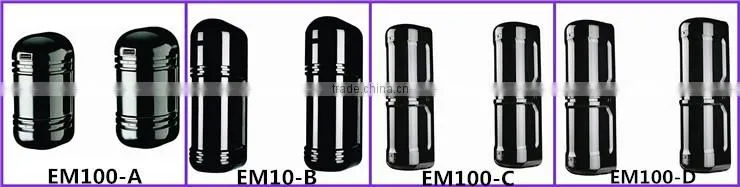

Model |
EM100-A30 | EM100-A60 | EM100-A80 | EM100-A100 |
| Detection method | Infrared phtoelectric | |||
| Range outdoor | 30m | 60m | 80m | 100m |
| Range indoor | 90m | 180m | 240m | 300m |
| Beam characteristics | pulsed infrared dual beams | |||
| Interruption period | 50~700msec( select-able) | |||
| Power input | dc12~24/ac11~18v | |||
| Current consumption | 40mA max | 55mA max | 65mA max | 65mA max |
| Alarm period | 2sec(±1) nominal | |||
| Alarm output | form c relay( ac/dc30v 0.5a max) | |||
| Tamper switch | nc openswhen cover is removed | |||
| Operating temperature | -25℃to+55℃ | |||
| Environment humidity | 95%max | |||
| Alignment angle | ±10. vertical, ±90.horizontal | |||
| Mounting | wall or pole | |||
| Weight | 650g( both transmitter and receiver) | |||
| Appearance | pc resin( black) | |||
| IP Rating | IP65 | |||
