Specifications
heat detector with CEOEM available
4 wire 12V for GSM alarm system
low power consumption
Delivery on time
Product description
Name
Heat detector
CE approved 4 wire 12V fire alarm Fixed conventional heat detector for GSM alarm system
Features
1.Moden Stylish design
2.Low Power consumption 1.Moden Stylish design
3.Remoted LED indicator output(2 wire)
4.Non-polar input power supply
5.Extended warranty
6.Easy Installation and maintenance
Characteristic
Dual LEDs for 360-degree visibility
Twist-off mounting for fast installation
Technical Data
| Model | H64-2 | H64-4 |
| Operating Voltage | DC9~35V | |
| Standby Current | 55uA | 12mA(NC), 500uA(NO) |
| Alarm Current | 35mA@DC12V, 83mA@DC24V | 3mA(NC), 19mA(NO) |
| Alarm Output | Conventional alarm output & LED flash | Relay output and LED flash |
| Smoke Alarm Density | 2.06%/ft | |
| Installation Method | Ceiling Mounted | |
| Operating Temperature | -10°C ~ +55°C | |
| Operating Humidity | 95%RH(max) | |
| Dimensions | 100mm(Dia)x48mm(H) | |
Ordering Information
| Model | Detail |
| H64-2-FH | 2 wire Fixed Temperature(57 °C ,135F)heat detector |
| H64-2-RH | 2 wire Rate of Rise (8-15 °C /min)heat detector |
| H64-2-FRH | 2 wire Fixed Temperature (57 °C ,135F) & Rate of Rise (8-15 °C /min)heat detector |
| H64-4-FH | 4 wire Fixed Temperature(57 °C ,135F)heat detector |
| H64-4-RH | 4 wire Rate of Rise (8-15 °C /min)heat detector |
| H64-4-FRH | 4 wire Fixed Temperature (57 °C ,135F) & Rate of Rise (8-15 °C /min)heat detector |

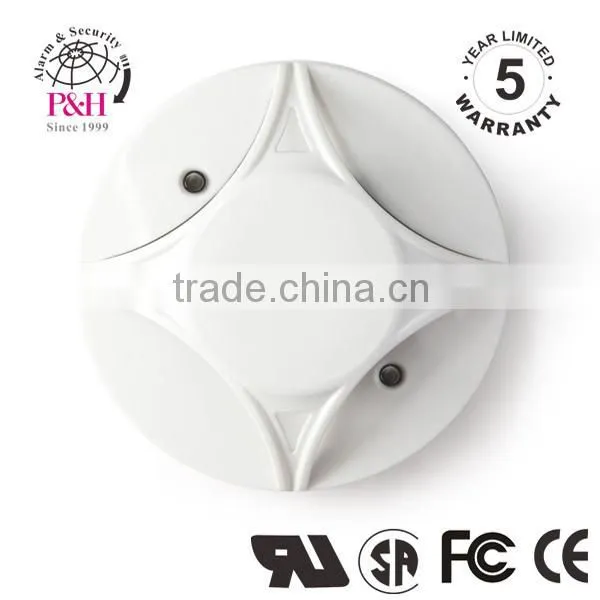

Product view
