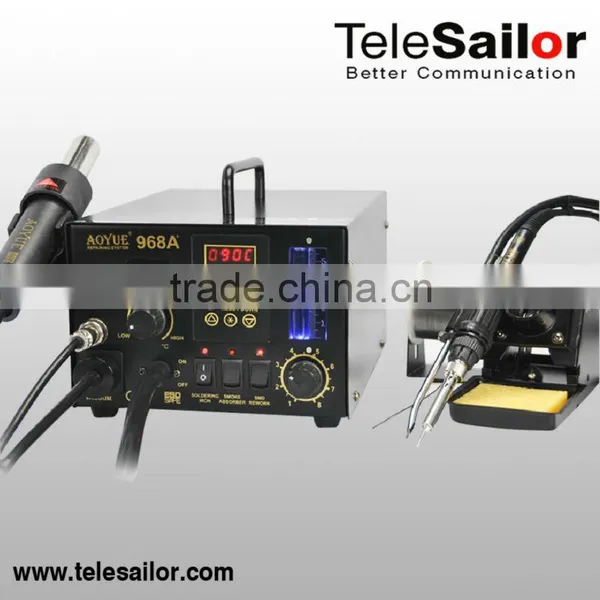

968A+ Multi-function Repairing System
1) Micro-processor-controlled electro-static discharge (ESD) safe unit.
2)Easy-to-use touch type panel controls with digital display.
3) Environment-friendly repairing system that integrates hot air gun, soldering iron, and smoke absorber in one package.
4) Built-in smoke extractor that absorbs fumes created at the source.
5) Knob type soldering iron temperature control for simple yet efficient working temperature selection.
6) Digital control and display of soldering iron temperature.
7) Sleep mode for soldering iron. Soldering iron to go into sleep mode based on user defined duration.
8) Solder iron digital calibration, soldering iron tips can be calibrated + or -50 degrees. Easily adjust temperature offset with a few simple adjustments.
9) Intelligent error-reporting mechanism. Detects and informs the personnel for problems with the sensor and heating element.
10) Auto-cooling functionality. Blows air to cool down the system to a safe temperature before turning OFF.

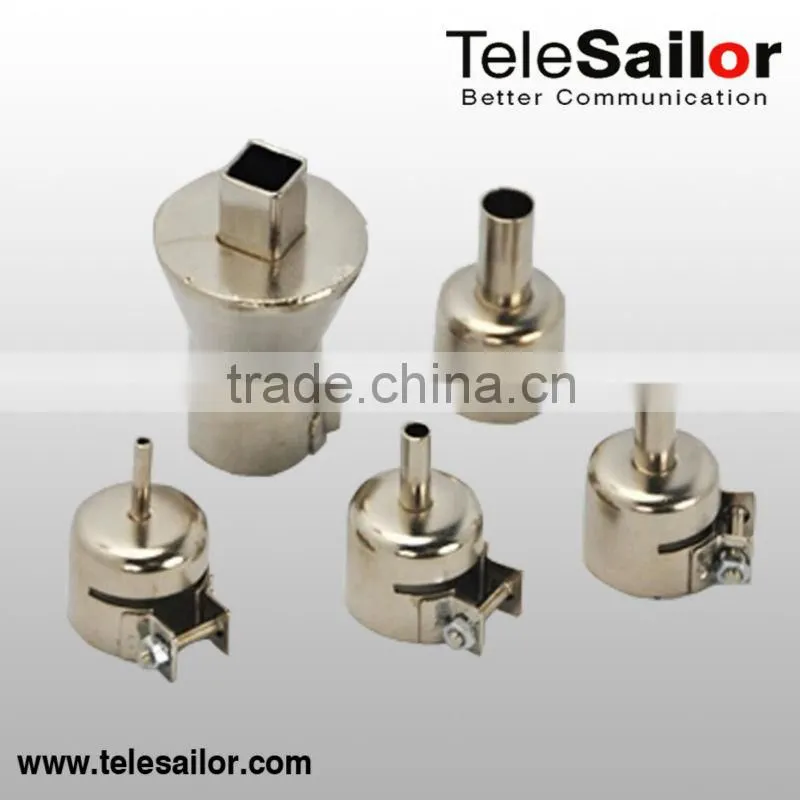

11) Compatibility with various types of air nozzles.
12) Compatibility with different kinds of soldering tips.
Power Input : |
available in 110V & 220V |
Main Station Dimensions: |
188(w) x 126(h) x 250(d) mm |
Weight: |
5.25Kg |
|

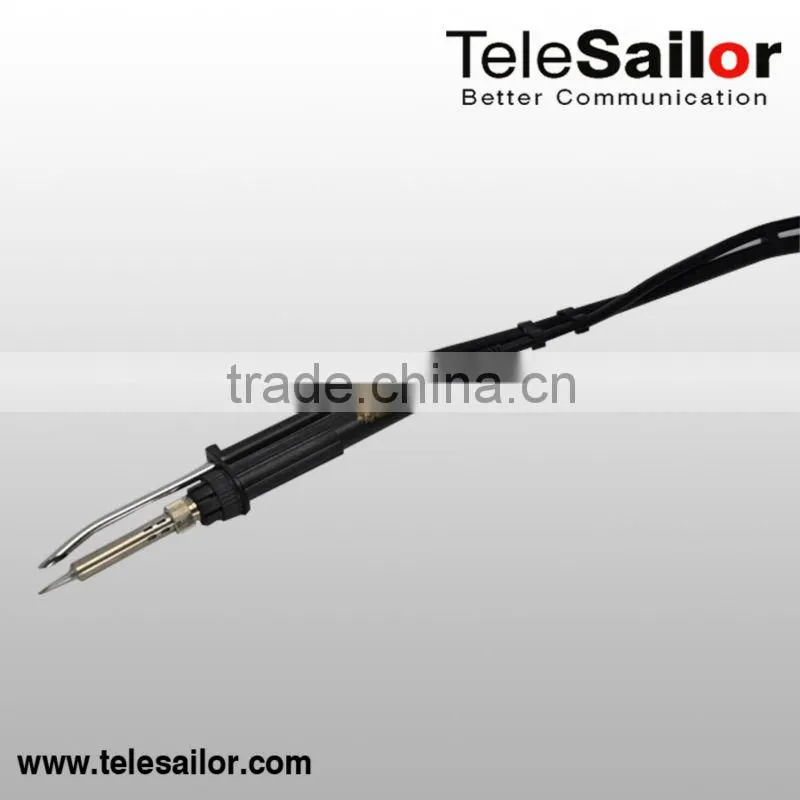

SOLDERING IRON |
|
Power Consumption: |
70W |
Temperature Range: |
200°C - 480°C |
Heating Element with Tip: |
Ceramic Heater |
Output Voltage: |
24V |
Tip to Ground Resistance: |
Below 2 Ω |
Tip to Ground Potential: |
Below 2mV |
|
HOT AIR |
|
Power Consumption: |
550W |
Temperature Range: |
100°C - 480°C |

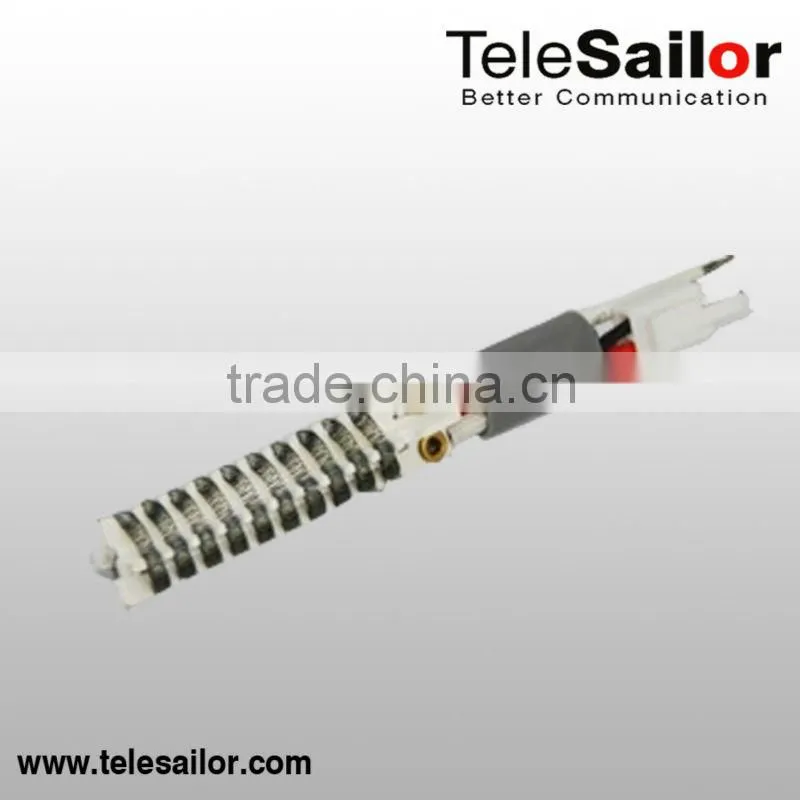

Heating Element |
Metal Heating Core |
Nozzle to Ground Resistance: |
Below 2 Ω |
Pump/Motor Type: |
Diaphragm Pump |
Air Capacity: |
23 l /min (max) |
