Specifications
1)dual digital system with digital control V4.0.2)temperature controlled,
3)control the heat and volume of air produced.

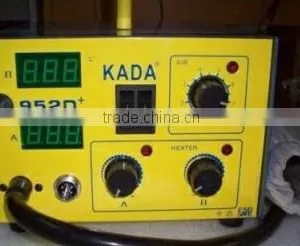

110V Dual Digital System v4.0 KADA952D+SMD/SMT Hot Air&Iron 2 in1 Soldering Station
Description:
Thia dual digital system KADA952D+ is with digital control V4.0.
Here is the features of the dual digital system v4.0 KADA952D+:
This is a new item, model dual digital system 952D+ soldering/rework station from Kada, an entry level desoldering/soldering rework station for surface or hole mount components.
With this dual digital system 952D+ , you get a temperature controlled rework station in a compact and convenient setup for the Air and heater knobs to control the heat and volume of air produced.
With the hot air output of this unit, you can perform surface mount rework in seconds, without damage to either components or PC boards. Just attach a nozzle onto the hot air tool, place the nozzle over the QFP, SOP, PLCC or SOJ to be desoldered, apply hot air to melt the solder without ever touching the component or PC board, and gently lift the component from the board.
Soldering of the replacement SMD is just as easy. Other applications include thermal testing of electronic components, shrink-wrapping protective packaging, and welding thermoplastics.
The dual digital system KADA 952D+ allows soldering of QFPs and SOPs with its wide range of adjustment of the air volume and temperature settings. For greater efficiency the same nozzle can be used for both soldering and desoldering.
It also features automatic cooling to protect the heating element and handle when the power switch is turned off. This rework station is ESD-Safe and it is made of metal and coated with a static-dissipative paint and allows for Soldering and desoldering QFPs and SOPs.
Below are the details for the dual digital system KADA952D+:
*. Capacity: 24L/min (Max.)
*. Power Voltage: 110V AC (220V AC)
*. Power Consumption: 270W (Max.)
*. Pump: Diaphragm Pump
*. Leakage Voltage of Iron Tip: <0.5mV
*. Standard Iron Tip: AT-900M
*. Hot Air Temperature: 100 to 480C
*. Tip of Iron Temperature: 200 to 480C
*. Outer Dimensions: 187(W)×150(H)×245(D)mm
What is the dual digital system KADA952D+ including
*Rework station with Air Output
*Hot Air Wand Type A (Pump)
*Soldering Iron Holder
*Soldering Iron
*Soldering Iron Foam
*3 Single Nozzles
What you may need when you doing reballing?
1. Solder Flux
2. Soldering wire/desoldering wick
3. Solder ball
4. Bga Stencils
5. Bga reballing station
6. And other bga rework accessories
