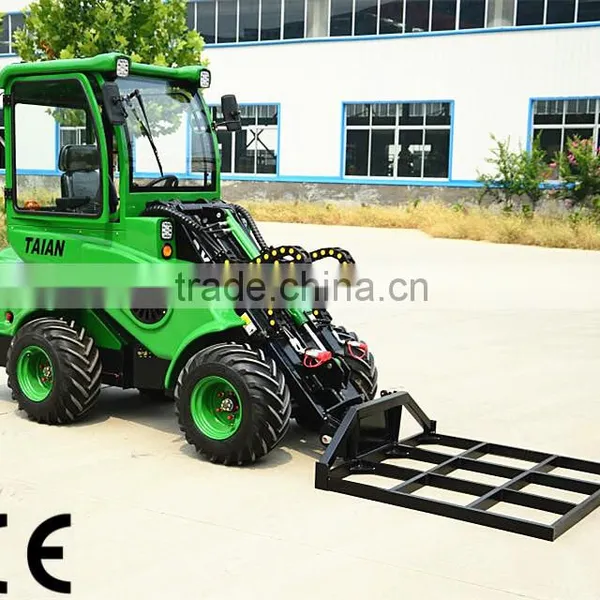

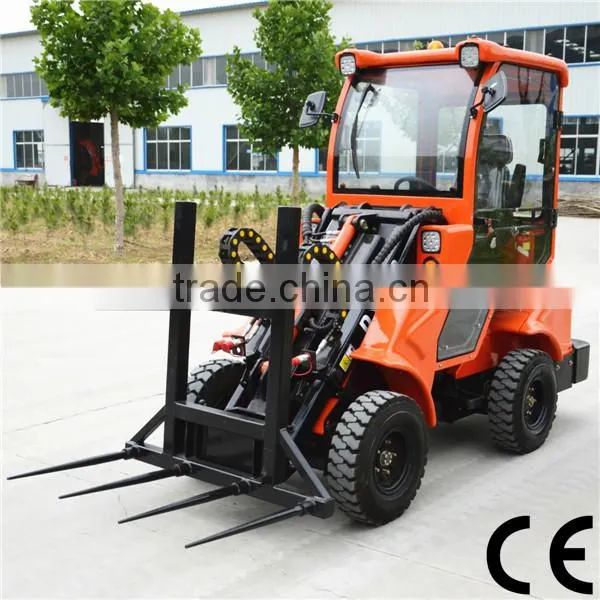

agricultural machine/agricultural equipment 1 TON wheel loader DY840
wheel loader
1.All models have separately four hydraulic wheel motor, they are real four wheel drive hydrostatic dive.
2.All machines adopts world famous Kubota/Perkins which guarantees the quality and meanwhile more powerful.
3.All the actions of the machine can be achieved by only joystick/levels, buttons and switches, reasonable arrangements of all the controls makes the operating biggest comfortable.
4.Thanks to the quick coupling system, you can change into different attachments in just one minute, which is very simple and convenient.
5.We always take customers’ any possible needs into consideration, there’s cigar-lights on each machine.
6.We equipped window hook for the closed cabin so that the window can be opened a bit and offer better ventilation
wheel loader

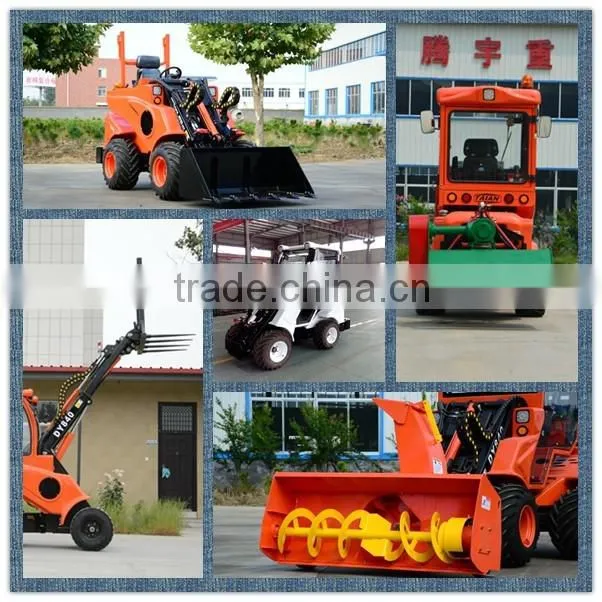

Front and optional rear hydraulic output together with the quick coupling system makes it the transformers of machinery. Our loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.

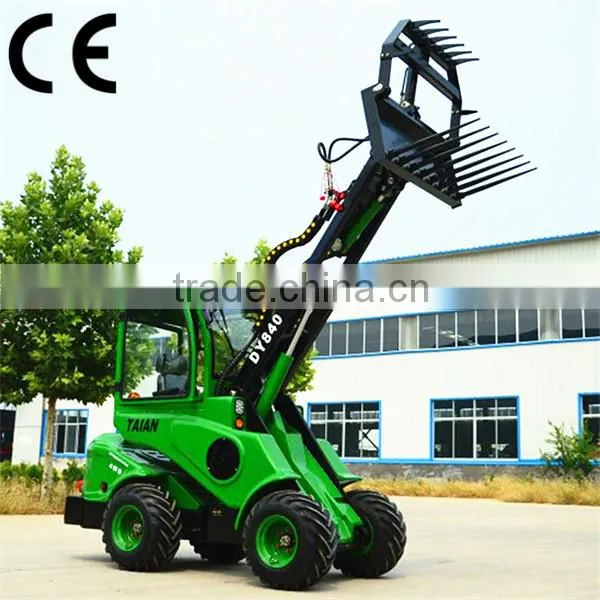

DY840 wheel loader:
All cab options available:Closed cab with door, Collapsible Roll Bar, and Steel Proof Canopy.
Closed cab is an excellent and economical choice when the operator wants to have protection against rain, wind and snowfall. It improves operator comfort and working conditions considerably. The cab mounts on the standard ROPS/FOPS frame, which means safety is guaranteed. It consists of windscreen (equipped with wiper & washer), right side window and rear window.
Model |
DY840 |
Dimension (LxWxH) |
2600 X1240 X 2230mm |
Max. reach(boom extended) |
3000mm |
Max. reach(boom retracted) |
2480mm |
Bucket capacity |
450L |
Rated loading capacity |
850kg |
Tipping load |
1300kg |
Min. turning radius |
2065mm |
Turning angle |
450 |
Speed |
0-12 km/h |
Weight |
1600 kg |
Standard tire |
26X12-12 |
Tire pressure |
2.8 bar |
Oil tank capacity |
40L |
Pressure |
190bar |
Working oil flow |
33.5L/minx2 |
Tracking oil flow |
78L/min |
Oil model(mineral oil) |
L-HL46 |
Engine brand |
Kubota V1505-E3B |
Engine type |
4 cylinder, water cooling |
Rated power/speed |
24.5 Kw/2800 r/min |
Fuel tank capacity |
23L |
Battery |
60Ah, 12V |
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in our machine, Please contact with: Steven N.
