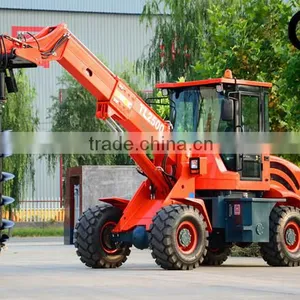

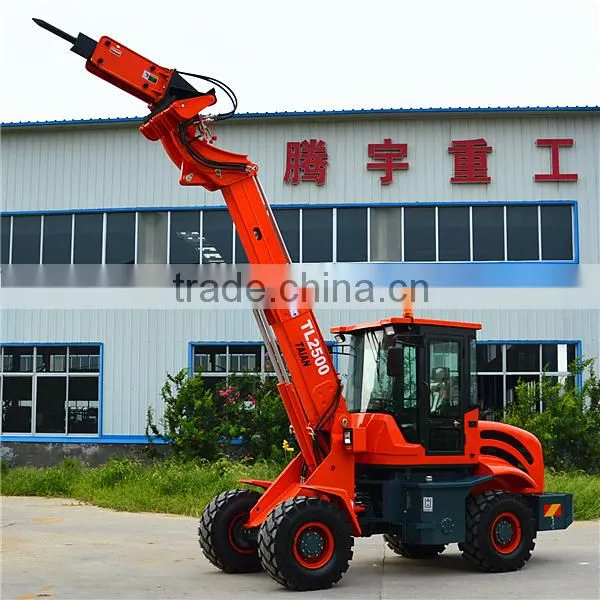

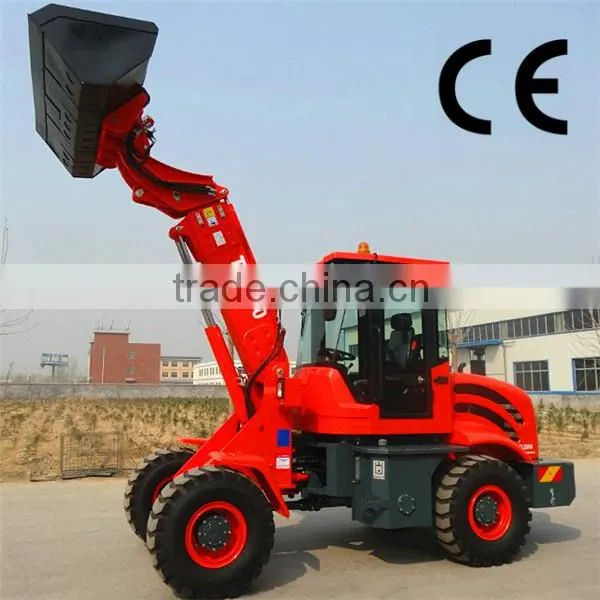

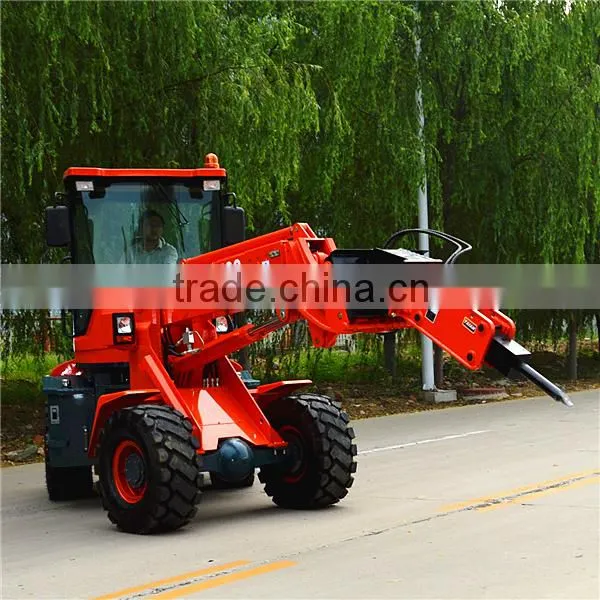

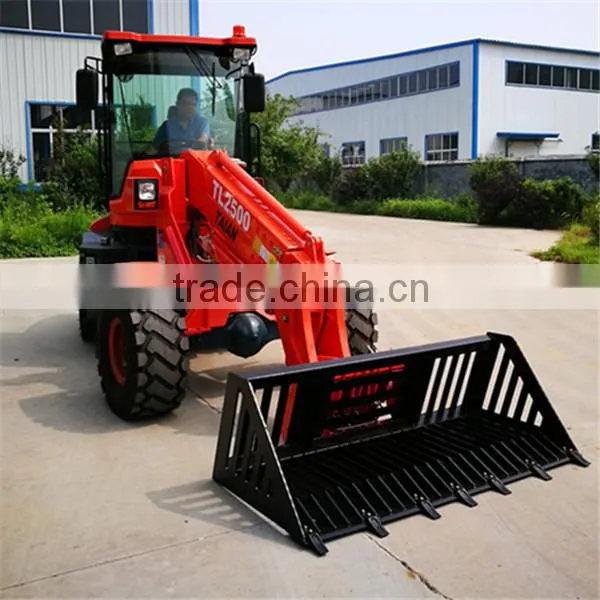

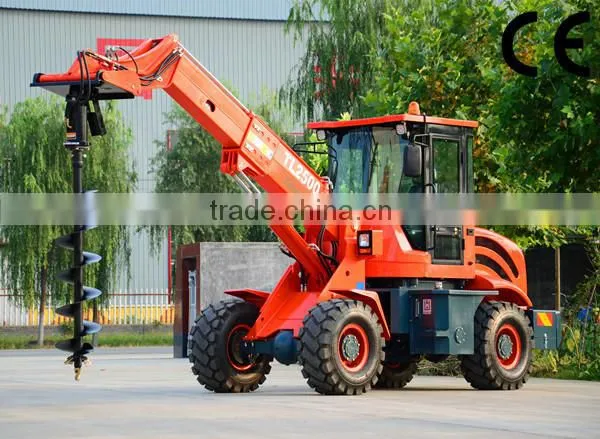

Small telescopic wheel loader, 2.5 ton telescopic handler for sale
1.ROPS Cabin or canopy can protect the driver in any case if there’s a tilt danger.
2.Top rotating warning light give an eye-catching signals to people around.
3.Warning signals for maintenance and operating protect the machine from over-use.
4.Reversing beeper and lights, traffic lights, rear and front working lights well protects people around and also the operator.
5.Cylinder protection can prevent any possible damage caused by the boom falling down.
1.Different engines available, chinese or oversea brands.
2.Standard quick hitch system
3.Wide view cabin with interior, modern control board and suspension seat makes the operation comfortable and enjoyable
4.Low vibration and noise
5.Different type of transmission system available
6.Rear hydraulic output optional

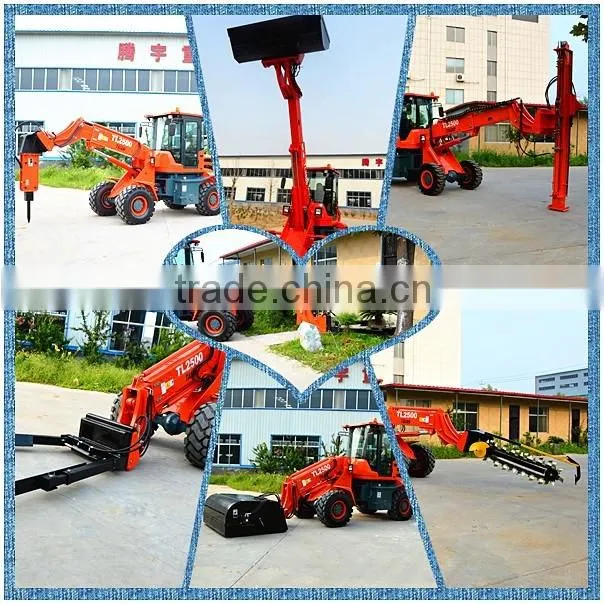

A big variety of different models
TL1500 TL2500 offers you machines featuring different equipment types. Depending on your current task the engine, the driver's cab and the tyre equipment can be set up according to your individual needs. Additionally, we offer a huge range of mounting equipment so as to make sure that your machine is perfectly geared to your individual demands.
Comfortable workplace
At TL1500 TL2500 operator convenience begins long before you even start your loader. Via the low climb you can safely and comfortably access your workplace from both sides. The driver's cab meets all requirements of an ergonomically designed workplace. The steering wheel can be adjusted individually and the comfortable seat can be adapted to your body size and weight.
Good stability
Because of their lower centre of gravity our loaders are secure and always have a good standing even under difficult conditions. This means that even when working on inclined or uneven territory you will always be firmly in touch with the ground and able to operate reliably.

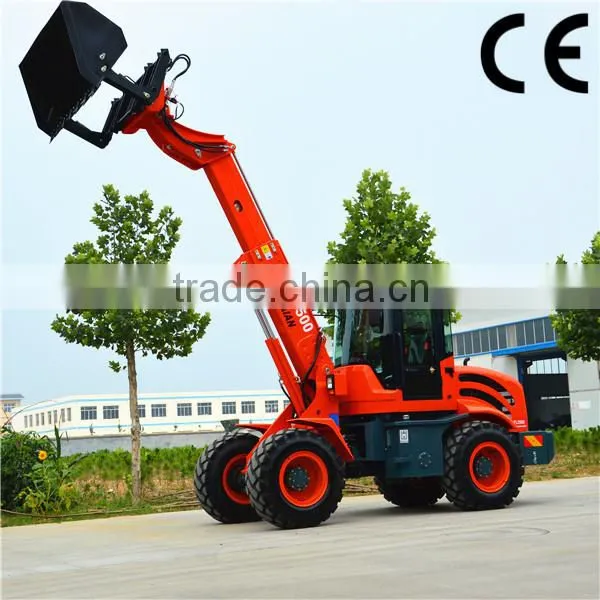

Amazing lifting heights
Even though our loaders have a compact and low-level design they can reach enormous lift heights. Even transport vehicles with high loading sills can be loaded without problems. The bended lifting arm and the heavy duty telescopic arm are buckling resistant and ensure precise operation even when working with heavy loads. You are always provided with an excellent view of the working tool even when the swingarm is raised and the telescopic arm is extended.
Robust kinematics for swingarm and telehandler
With the amply dimensioned cylinders the loader features a dump function with an enormous breaking load. The entire kinematics system has been designed in such a way to facilitate the quick loading and unloading of your cargo. As a result your working cycles will be shorter and you will be able to complete your tasks more effectively.
Model |
TL2500 small telescopic wheel loader |
|
Engine Details |
Engine model |
YUNNEI 4102GB |
Engine power |
58KW (78.88H.P.) |
|
Rated Speed |
2400 r/p.min |
|
Engine cooling way |
Water cooling |
|
Fuel Consumption ratio |
180g/kw.h (standard working condition) |
|
Engine type |
In-line arrangement,4 cycle diesel Engine |
|
Bucket |
Bucket Capacity |
1.2 m3 |
Bucket width |
1800mm |
|
Bucket type |
Heavy-duty bolt on teeth |
|
Overall Dimensions |
Overall Length |
4500mm |
Overall Height: |
2720mm |
|
Overall Width |
1870mm |
|
Tyre |
Model |
20.5-16, 12ply |
Width |
307mm |
|
Diameter |
831mm |
|
Brake System |
Service Brake |
Four Wheel disk brake |
Parking Brake |
Hand operated |
|
Braking Type |
Air braking |
|
Axle |
With hub reducer |
|
Max. lifting Height |
4500mm |
|
Rated Load |
2500kg including attachment |
|
Transmission System |
Hydraulic converter + drive shaft + axles |
|
Wheelbase |
2430mm |
|
Min Turning Radius |
5600mm |
|
Track |
1470mm |
|
Weight |
4900kg(without bucket) |
|
System Pressure |
20Mpa |
|
Hydraulic output: |
96L/min |
|
Max. Height to the Pin |
4200 mm |
|
1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.
