Specifications
XQ89/3YE hydraulic power tong2.Type:XQ89/3YE
3.Low speed
4.can prevent the conglutination of thread

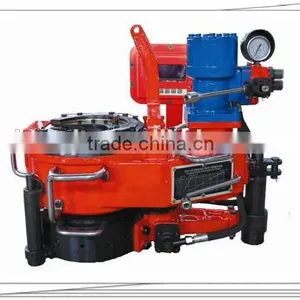

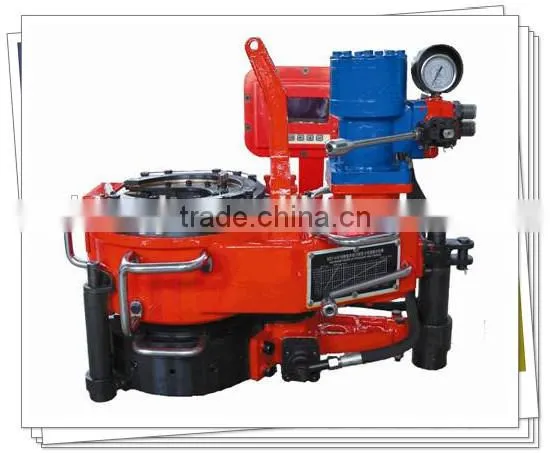

XQ89/3YE hydraulic power tong
Detailed description
XQ89/3YE hydraulic power tong is used for quick make-up/break-out in well service operariions.The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. The related informations are as follows.
Model |
XQ89/3YE |
Pipe size range of master tong |
φ73-89 27/8”-31/2” |
Pipe size range of backup tong |
φ89-114 31/2”-41/2 |
High gear rated torque |
3000 N.m 2213ft-lbs |
Low gear rated torque | |
Hige gear rated speed |
28r/min |
Low gear rated speed | |
Rated operation pressure |
10Mpa 1450psi |
Max. Flow |
90L/min 24gpm |
Dimension:L×W×H |
740×430×800 29.1” ×16.9” ×31.5” |
Weight(including backup tong) |
182kg 401 lbs |
features | |
1.clamp the tubing use corresponding dies, jaw set or die seat. | |
2.torque control valve may be equiped according to customer’s request. | |
3.choose and buy lengthening guide pole assembly, the backup tong can clamp the tubing body | |
4.torque control system may be equiped according to customer’s request. | |
5.Low speed | |
6.can reduce distortion of tubing coupling to prevent conglutination of thread | |
