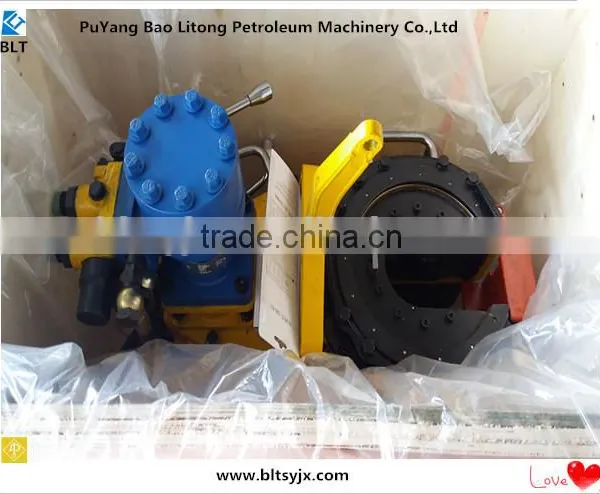

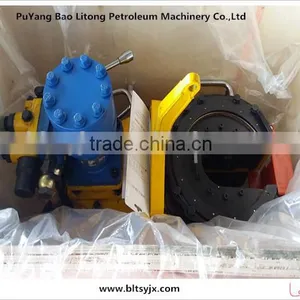

China factory XQ89/3YC hydraulic tubing power tong for 2 3/8 to 3 1/2 tubing
Specification
1. Tubing hydraulic power tong XQ89/3YC 3J
2.well-servicing process
3.For tubing
4.API Standard
5.Size:for 2 3/8"-3 1/2" tubing
Detailed description
XQ89/3YC Type inner curved cam clamp is used for quick make-up/break-out in well service operariions.The tong is equipped with hydraulic backup tong and use inner curved cam to clamp. Please look at the tabulation and you'll know more about the product
Technical parameters
Model |
XQ89/3YC, 3YB |
Pipe size range of master tong |
Φ60-89 23/8”-31/2” |
Pipe size range of backup tong |
Φ60-114 23/8”-41/2 |
High gear rated torque |
1100 N.m 811ft-lbs |
Low gear rated torque |
3000 N.m 2213 ft-lbs |
Hige gear rated speed |
90 r/min |
Low gear rated speed |
30 r/min |
Rated operation pressure |
10Mpa 1450psi |
Max. Flow |
80L/min 21gpm |
Dimension:L×W×H |
650×430×550 25.6” ×16.9” ×21.7” |
Weight(including backup tong) |
158kg 348 lbs |
features | |
1.clamp the tubing use corresponding dies, jaw set or die seat. | |
2.torque control valve may be equiped according to customer’s request. | |
3.choose and buy lengthening guide pole assembly, the backup tong can clamp the tubing body | |
4.torque control system may be equiped according to customer’s request. | |
