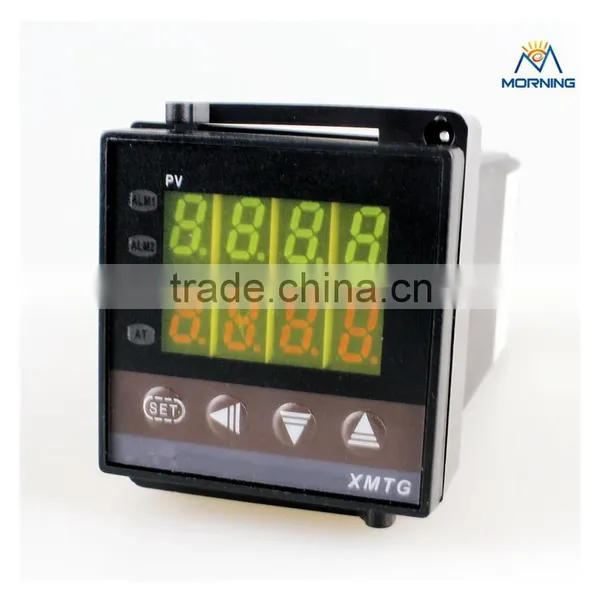

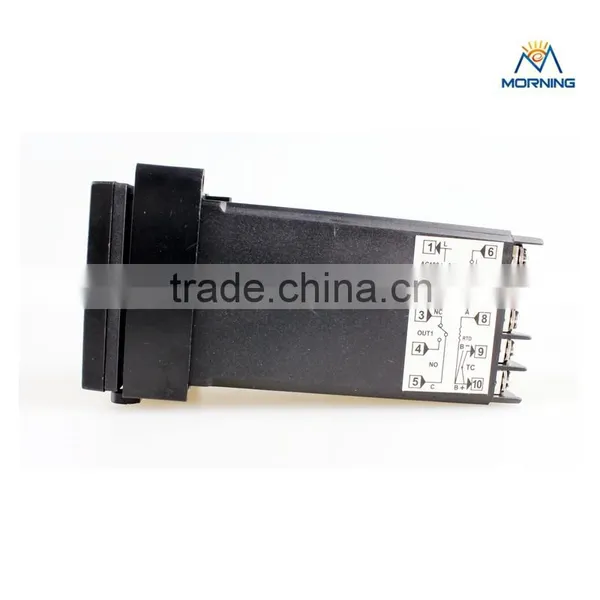

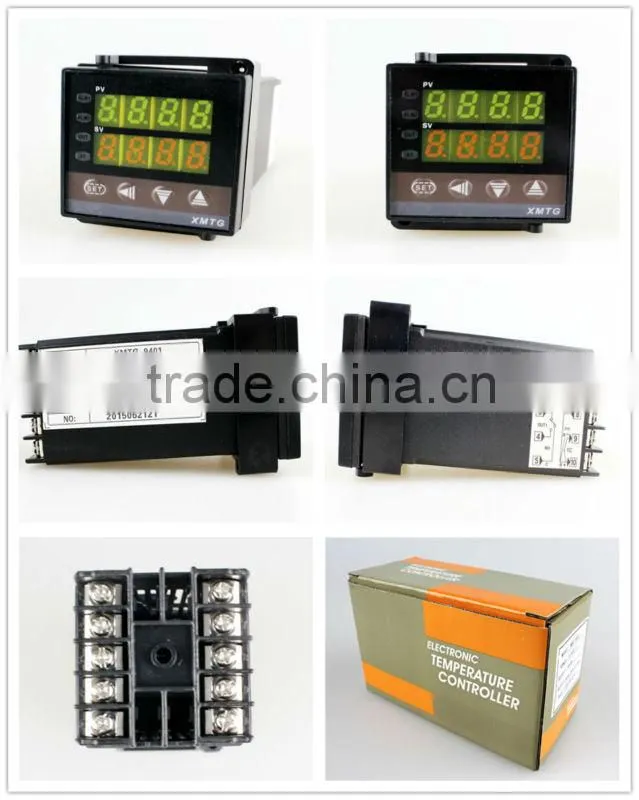

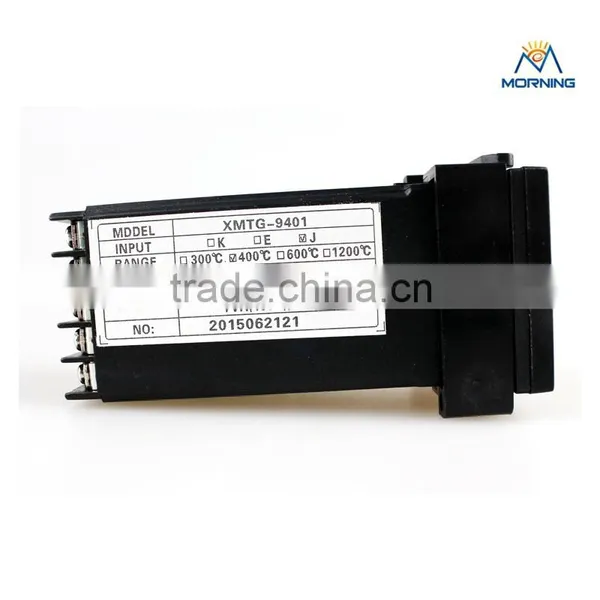

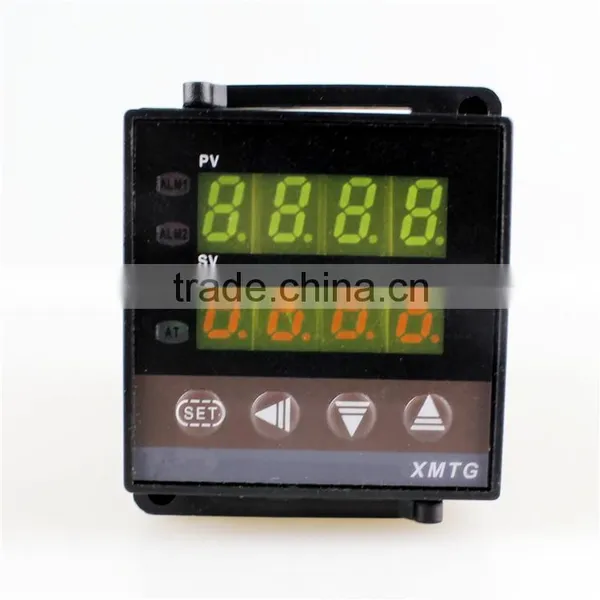

Help CenterXMTG9411 Panel Size 48*48 Digital PID Control Xmtg Temperature Controller
Related Products
-
Ssr-40DA 40A Ssr Single Phase Solid State RelayUS$ 2.12 - 3.4MOQ: 1 Piece -
Single Phase Ac Solid State Relay Ssr Solid State RelayUS$ 2.12 - 3.4MOQ: 1 Piece
-
XMT Industrial High Quality and High Efficiency Temperature ControllerUS$ 11.232 - 18.4MOQ: 1 Piece
-
Rex-c900 Digital Automatic Thermostat Heating Rex-c900 Temperature ControllerUS$ 5.976 - 10.6MOQ: 1 Piece
-
ST828 Hot Runner Temperature Controllers PIDUS$ 21.024 - 44.4MOQ: 1 Piece
Brief introduction | |
|
XMT -7000P intelligent program controllers are the multi-functional regulators adopting the micro processing units. As also adopting advanced design and production technology, it is small and has great performance. The special self-conditioning and intelligent controlling functions bring good efforts through simple operating.
| |
Main technologies indicates | |
1. Input | |
|
Any kind of TC, RTD's standard signal of current and voltage (see the kinds sheet of input) | |
2. Accuracy | |
Measure accuracy |
±0.5%FS |
Cold-end Compensation deviation |
in the range of ±2℃(0~502℃ can be amended by the software) |
Resolving power |
1℃,0.1℃ |
Sampling cycle |
0.5 Sec |

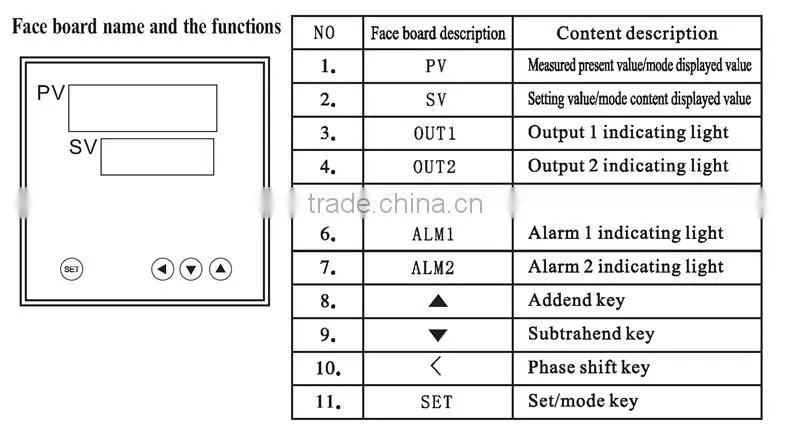

3. Display | |
PV,SV |
-1999 ~ +1999 |
Indicatesof output,alarm,self-conditioning |
LED |
4. Control mode | |
PID control( including ON/OFF, position type PID and continuous PID) | |
Self-conditioning control | |

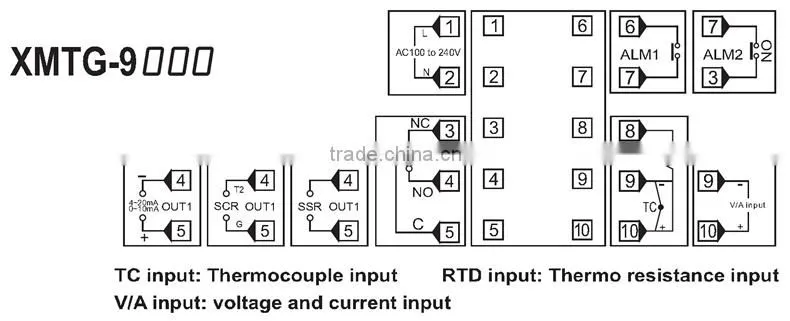

5. Controlling output | |
Current output |
DC 0~10 mA, 4~20 mA (RL< 500Ω) |
Voltage output |
DC 0~5 V, 1~5 V (RL>10K) |
Relay output |
contact capacity 250VAC 3A(resistance load) |
Voltage pulse output |
0~12V, (suitable for the solid relay SSR) |
Controlled Silicone SCR output |
over zero trigger or phase trigger(resistant load) |
Alarm function output |
2 groups output at most, 6 modes. |
Capacity of the output contact |
250V AC 3A (resistant load) |
6. Setting range | |
Setting value (SV) |
Whole Measured Range |
7. Others | |
Insulation resistance |
>500 M (500DC) |
Insulation strength |
1500VAC/1min |
Power consumption |
<10VA |
Using environment |
0~50℃, 30~85% RH no corrosive atmospheres environment |
Weight |
about 0.5kg |
