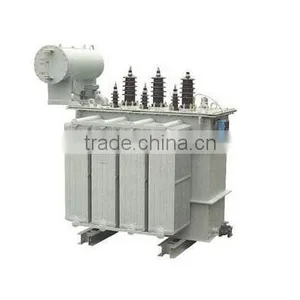

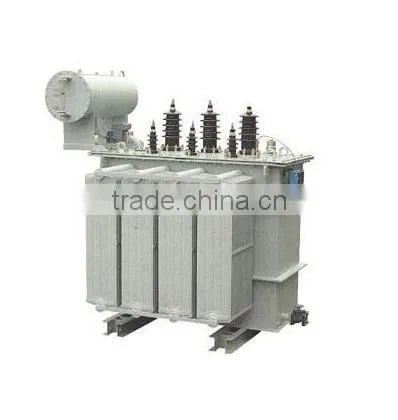

S9 Series 10 KV Low-loss Oil Immersed Distribution Transformer

S9 Series 10 KV Low-loss Oil Immersed Distribution Transformer thumbnail-1
S9 Series 10 KV Low-loss Oil Immersed Distribution Transformer photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
JOYHOOD
Model Number:
10KV S(B)H15 oil immersed distribution transformer
Usage:
Power
Contact Supplier Request Quote Chat Now
Liuzhou Joyhood Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fangcheng Port Guangzhou Port Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JOYHOOD
Model Number 10KV S(B)H15 oil immersed distribution transformer
Usage Power
Phase Three
Coil Structure Toroidal
Coil Number Other, 2

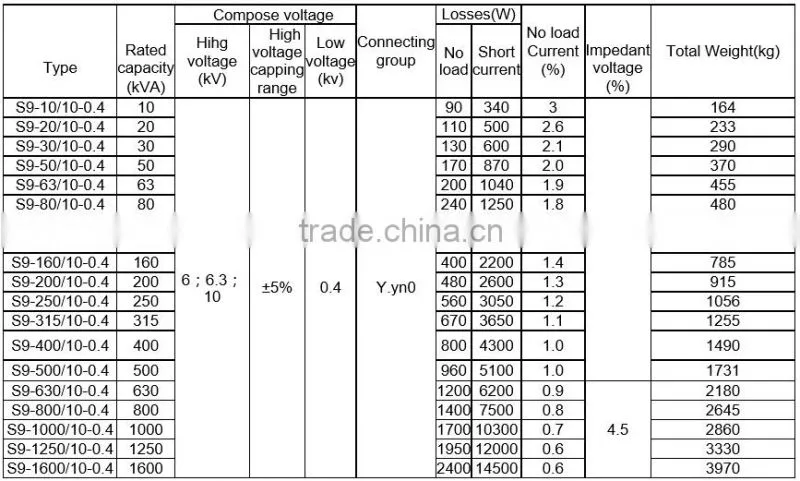

S9 Series 10 KV low-loss oil immersed distribution transformer



S9 Series 10 KV low-loss oil immersed distribution transformer

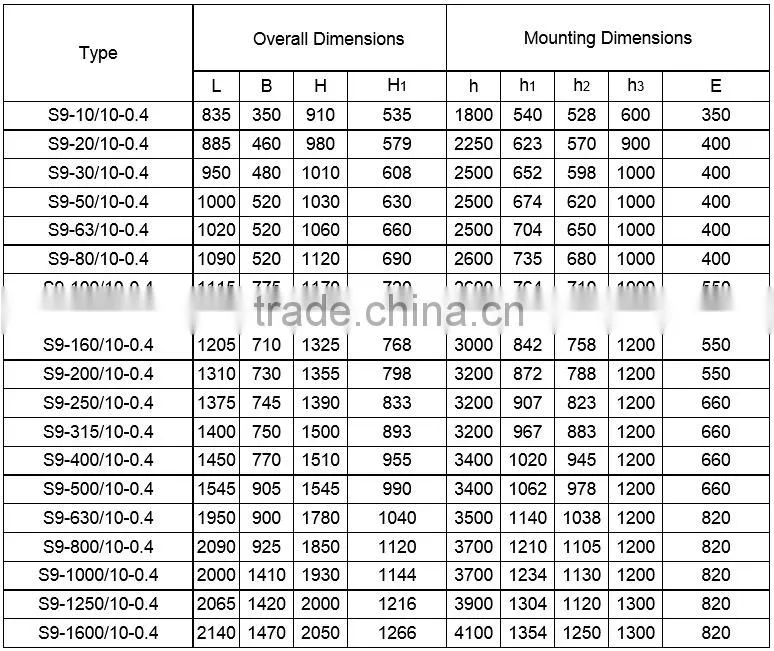

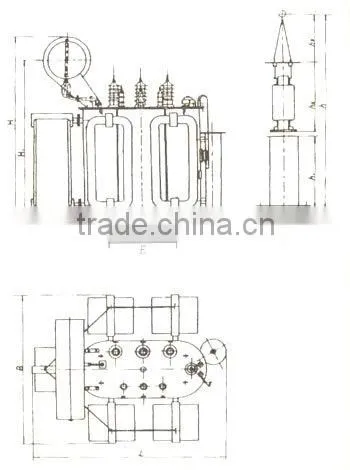

MOUTING AND OVERALL DIMENSIONS

S9 Series 10 KV low-loss oil immersed distribution transformer

S9 Series 10 KV low-loss oil immersed distribution transformer















S9 Series 10 KV low-loss oil immersed distribution transformer





This series product is A-class insulated,oil-immersed and self-cooled with a tubulat oil-tank to be
installed outdoors.Its iron core is made of high-quality oriented electrical steel, 45°obliquely jointed
without punching and bound with nonparallel glass tape.The stucture of the winding is well able to meet
requirements of installation,heat dissipation,mechanical strength and safe running transrormers are
corrugated tank structure which powers are 800kVA below,and those transformers which are 1000kVA and
above have tubular tanks.







S9 Series 10 KV low-loss oil immersed distribution transformer





1. We will offer site technical service according user’s requirements. Guide the user installation,

    commissioning and trial operation accordance with technical information and drawings.

2. We will offer the training of equipment installation, commissioning and maintenance technology

    for user according to the contract.

3. Replacement of spare parts, wearing parts for free during guarantee period.

4. Actively cooperate with the user to examination of hanging the core, installation, commissioning

    and trial operation. Make sure to put product into operation.

5. We offer 24 hrs customer consulting service.

6. For customer on-site service application, we will give answer within 24hrs, and try our best to

    arrange the technical worker get to the site as soon as possible.
