Specifications
H beam Overturning Rack
1.Overturn degree:90-180 degree
2.Suitable workpiece length: 5T
The tool is used in heavy steel production line. The frame is for transmitting and horizontal moving the parts of steel structure.
It can turn the horizontal H beam to a 45° Angle and then support it in position. In this way, the frame
can assist the heavy steel cantilever welding machine to do boat shape welding process.
Normally, a unit includes several turnover frames.
The distributing and collecting valve will control synchronic turnover. The unit works smooth and safe.
Suitable workpiece length |
≤5T |
| Flip the workpiece cross section size | 800x1500mm |
| Travel motor power | 0.2KW |
| Speed of travel | 2.1m/min |
| Rail central distance | 670mm |
| Maximum pressure of hydraulic system | 16Mpa |
| Overturn degree | 45° |
1.steel conveyor

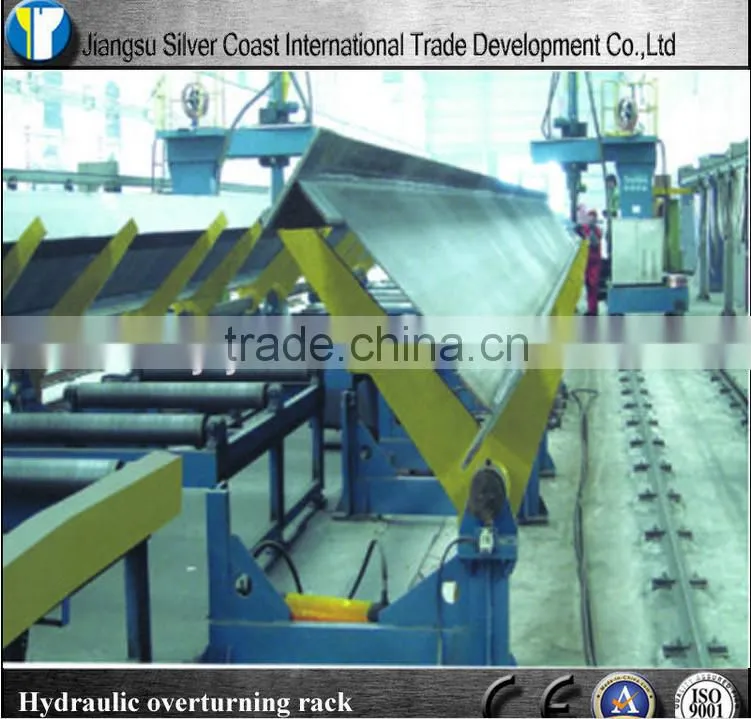

2.hydraulic overturning rack

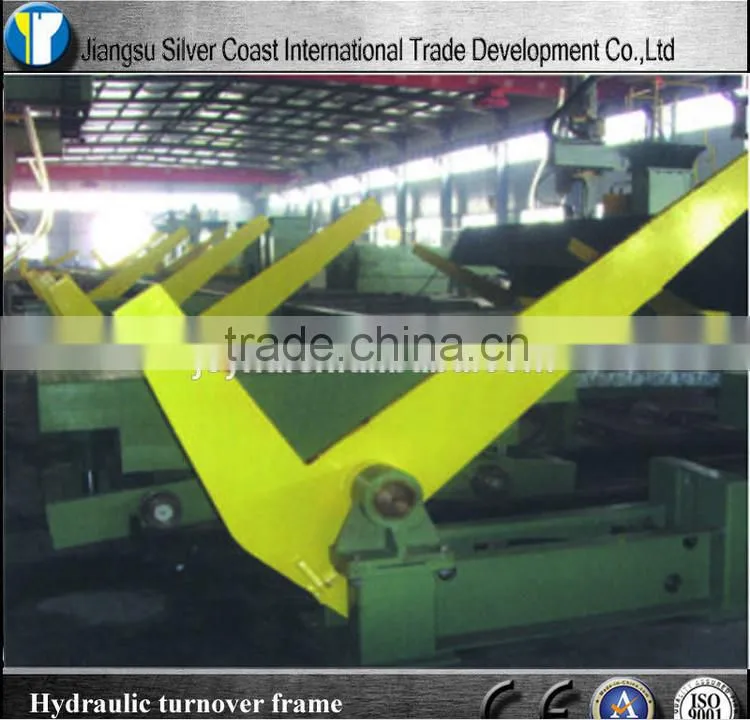

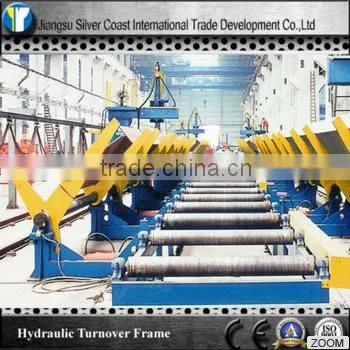

3. 45°hydraulic turnover frame
equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.
Our services:
1.Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where you are.
2.Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here, this will help you easyly to understanding.
3.English Manual:
We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.
4.Face to face to teacing:
Through internet video face to face for machine teaching,because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.
If you are interested in this product,please send E-mail to me or contact me directly!
