High Efficiency HY-JS500 concrete mixer From HuaYuan Manufacturer
1.JS750 concrete mixer instruction:
JS750 concrete mixer can mix the plastic and half-dry hard concrete,fluid concrete and light aggregate concrete. It is applicable to the common construction working site, road, bridge and each kind of precast product factory. It can work independently or be used as facility concrete plant, which is applied with correspond batching machine. JS750 has manul or Hydraulic pressure discharge mode. It has reasonable instructure,high production efficiency,drive, reposefully and low noise .The electrical system adopts import component, which is good performance and reliability.
2. concrete mixer Technology Parameters:
| Type | JS500 |
| Capacity of material --IN(L) | 800 |
| Capacity of material --OUT(L) | 500 |
| Productivity(m3/h) | ≥25 |
| Maximum diameter of / Cobble | 80 |
| Bone material (mm) /Crushed stones | 60 |
| Mixing fan / Turning speed(r/min) | 35 |
| / Quantity | 2*7 |
| Mixing engine / Type | Y180M-4 |
| / Power(kw) | 18.5 |
| Mixing engine /Type | YEZ132S-4-B5 |
| / Power(kw) | 5.5 |
| Pump / Type | 50DWB20-8A |
| / Power(kw) | 0.75 |
| Hosting speed of material holder | 18 |
| Outside size(mm) / Transport state | 3050*2300*2680mm |
| / Working state | 4461*3050*5225mm |
| Weight (kg) | 4000 |
3.Type & usage:
This machine is a concrete mixer,suitable for medium and small factories and industrial or civil engineering like brick making ,highway ,water conservancy,wharf etc.It could mix hard concrete,plastic concrete,floating concrete,light bone material and cobble.It could work independently or equeipped with PL1200 material combing machine to organize a simple mixing station .It's also the main machine of HZS50 mixing station.
4.More information for JS 750 concret mixer :
1).The concrete mixer is the advanced, ideal type at home and abroad. Good mixing quality, high automation and efficiency, low energy consumption and noise as well as easy operation are the advantages of it.
2).Besides, it also has the strengths of high speed of discharging, long service life of liner and blades and easy maintenance.
3)Applies for the mix of plastic concrete, dry concrete, light weight aggregate concrete and different mortars.
4).Mtorized discharge port is applied in the machine, which makes it could be matched with dump car.
5).So it is the ideal machine for construction site and prefabrication.

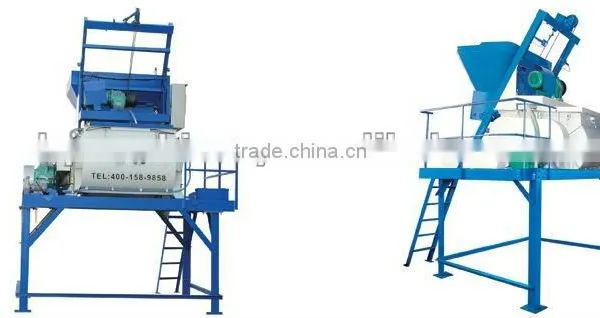

5.Product shows:
6.Recommend products:
