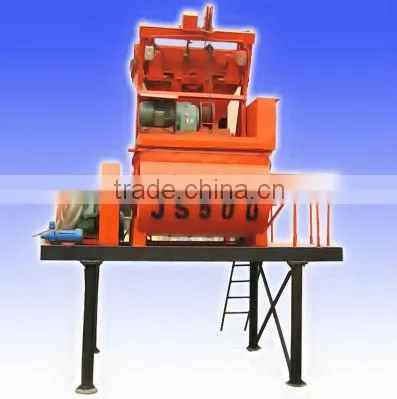

Huayuan JS500 Min self loading concrete mixer
1.Technology Parameters of concrete mixer JS500
| Type | JS500 |
| Capacity of material --IN(L) | 800 |
| Capacity of material --OUT(L) | 500 |
| Productivity(m3/h) | ≥25 |
| Maximum diameter of / Cobble | 80 |
| Bone material (mm) /Crushed stones | 60 |
| Mixing fan / Turning speed(r/min) | 35 |
| / Quantity | 2*7 |
| Mixing engine / Type | Y180M-4 |
| / Power(kw) | 18.5 |
| Mixing engine /Type | YEZ132S-4-B5 |
| / Power(kw) | 5.5 |
| Pump / Type | 50DWB20-8A |
| / Power(kw) | 0.75 |
| Hosting speed of material holder | 18 |
| Outside size(mm) / Transport state | 3050*2300*2680mm |
| / Working state | 4461*3050*5225mm |
| Weight (kg) | 4000 |
JS500 concrete mixeris applicable to the common construction working site, road, bridge and each kind of precast product factory. It can work independently or be used as facility concrete plant, which is applied with correspond batching machine. JS500 concrete mixerhas reposefully and low noise .The electrical system adopts import component, which is good performance and reliability.
2.JS500 concrete mixerFeature & Advantages:
A. Equipped with multiple shaft sealing and flotation sealing protective device, effectively preventing shaft end mortar leakage;
B. Unique monitoring system of mixer can working condition of monitor reduction box, discharge pump and electrical lubricating pump;
C. Firm and rigid pneumatic and electric discharging door device effectively improves the service and sealing property of the discharging door.
D. Multi pipes & ways water injecting system can make sure that the water can be injected uniformly;
E. Heavy design and stable running.
