Specifications
1. Automatic Water Slot Milling Machine(3-spindle) in PVC windows fabrication2.CE, ISO9001-2008;
3.since 1991

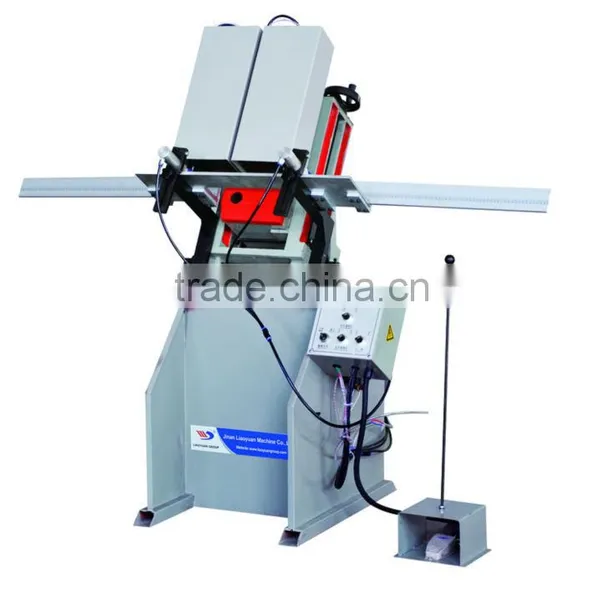

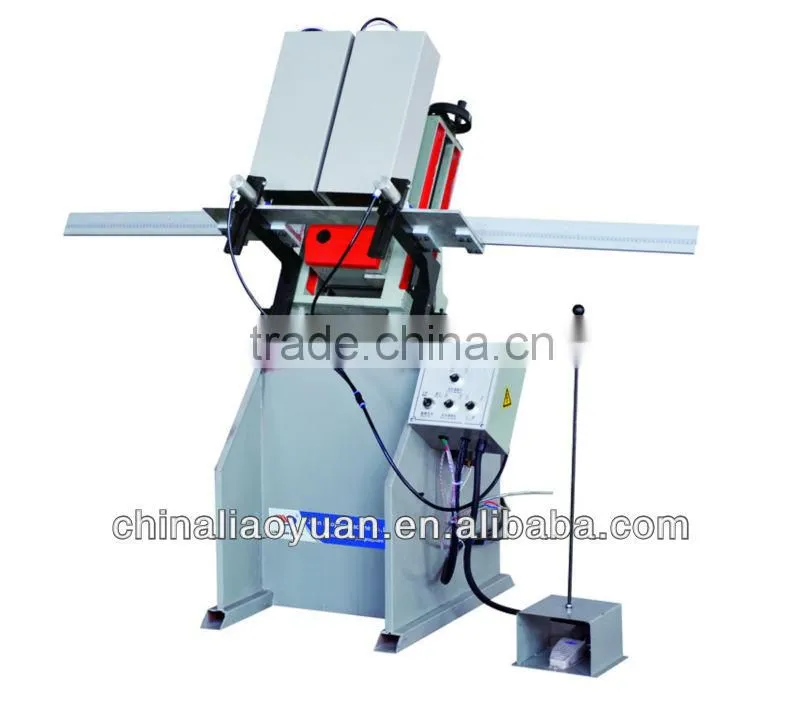

Water Slot Milling Machine for pvc window (3-spindle)SCX02-3(Automatic )
1.Automatic Water Slot Milling Machine(3-spindle)
2.CE, ISO9001-2008;
3.20 years industry experience.
Equipment Features:
1. Milling all kinds of water slots and air pressure balance grooves.
2. The upper two milling heads can work together with the lower one or the horizontal one to meet various processing requirement.
3. The length of milling water slot within 60mm is adjustable and its usage range is wide.
4. Improved the milling feeding system and changed the milling cutter horizontal feeding way to machine head horizontal feeing, effectively avoiding the Comma Phenomenon.
5. Milling head’s angle and the position if its operating table, which is adjustable, can meet different profiles and positions processing requirements.
6. Apply to high-grade and mass windows production.
Main specification and Technical parameter:
Input voltage 220V/50Hz
Input power: 1.14kw
Air pressure: 0.5-0.8Mpa
Air consumption: 20L/min
Main-shaft revolution: 25000r/min
Cutter diameter: Φ5Φ4mm
Slot depth: 30mm
Slot length: 30-60mm
Overall dimension: 1925*750*1600mm
Weight: 300kg
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE(12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
