Specifications
1.Factory built in 1991py routing machine for pvc window and doors
3.ISO9001:2008,CE,SGS
PVC Doors Windows Machine Copy Routing Machine For Sale
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Product Details:
| Name | PVC Doors Windows Machine Copy Routing Machine For Sale |
| Model | LXF-290X90 |
| Brand | SOLTERRA |
| Certificates | ISO9001:2008,SGS |
| Warranty | The Warranty time is one year, Engineers available to the service |
| Package details | High quality Plywood case |
| Delivery time | Within 7-10 working days after receiving the down payments |
| Payment terms | L/C,T/T,Western union |
Super quality! Lowest price!! Best service!!!
Features and functions:
1.Used for copy-routing processing various kinds of holes,grooves and water-slots.
2.It has features of compact struture and small volume, the air pressuer drives the clamping.
3.Simple model adjustment and replacement, wide adaptation, high efficiency.
4.It can achieve continuous copy-routing milling, easy operation and safety.
Technical parameter:
Voltage |
380V50HZ |
Air pressure |
0.5-0.8Mpa |
Air consumption |
30L/min |
Input power |
0.75KW |
Copy routing range |
290×100mm |
Diameter of the milling cutters |
Φ5,Φ8 |
Main shaft rotary speed |
12000r/min |
Processing deviation from straightness |
±0.1mm |
Cutting profile surface roughness |
Ra12.5μm |
Overall dimension |
870mm×700mm×1500mm |
Weight |
225kg |

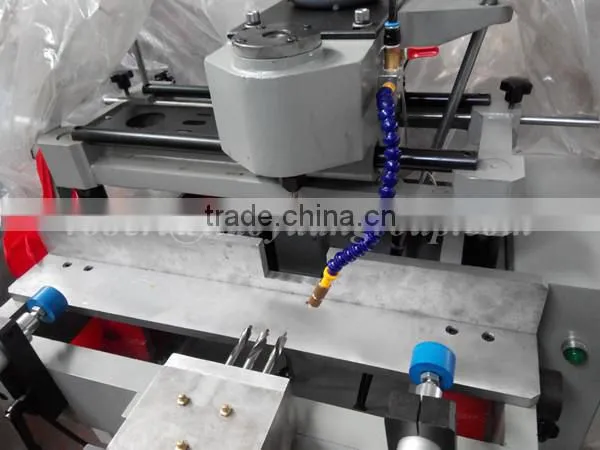

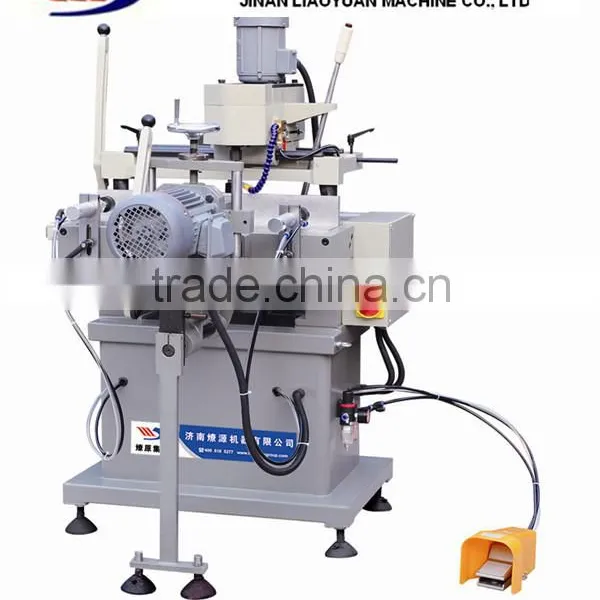

Machine Images
Package and shipping
Company Profile
Jinan Liaoyuan Machine Co., Ltd, as one of earliest enterprises, With more than 20 years’ development, has developed into a integrated High-tech enterprises. And we are dedicated to produce window and door equipment.. The profile can be PVC, uPVC and aluminum.
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
After-sale service
