RGBW RGBWW 60mm DC24V led cabochon light
1-iPixel LED principally refers to rides makers that ask complete solutions starting from professional
advice to wiring , Powering , Control. so we designed this cabochon style LED bulb which has a radial star
effect with central luminous lens which could expand the lighting
2-Front cap size approx 60mm, base diameter same as our 45mm pixel , it's 19mm, you should punch the
hole size 19.1--35mm
3-each bulb included a plastic screw for installation
4-there is a pair of 5Pin Jst SM connector in each bulb, it's non-waterproof
5-The system is based on the use of RGBW LEDs, can use RGBW controller to realize different effects
| 60mm RGBW(WW) led pixel | 60mm full color led pixel | |
| LED Chip | Epistar 5050RGBW(WW) | Epistar 5050RGB with a IC chip |
| LED Qty | 18leds/pcs(front 12leds, back 6leds) | 18leds/pcs(front 12leds, back 6leds) |
| IC Chip | NO | UCS2903 |
| Voltage | DC24V | DC24V |
| Power(W/pcs) | 4±0.5W | 3.6±0.5W |
| Beam angle | 360 view angle | 360 view angle |
| Size (mm) | H83*W60mm | H83*W60mm |
| Cover | Transparent spiral cover | Transparent mushroom cover |
| Cable length | 10cm usually, also can be customized | 10cm usually, also can be customized |
| Certification | CE, RoHS | CE, RoHS |
| IP rate | IP20 | IP20/IP65/IP67 |
| Connector | 5pin JST female and male connector | 3pin JST female and male connector/3pin waterproof connector |
| Controller | RGBW controller | SPI/Andruio/DMX controller system |
| Brand | iPixel LED | iPixel LED |

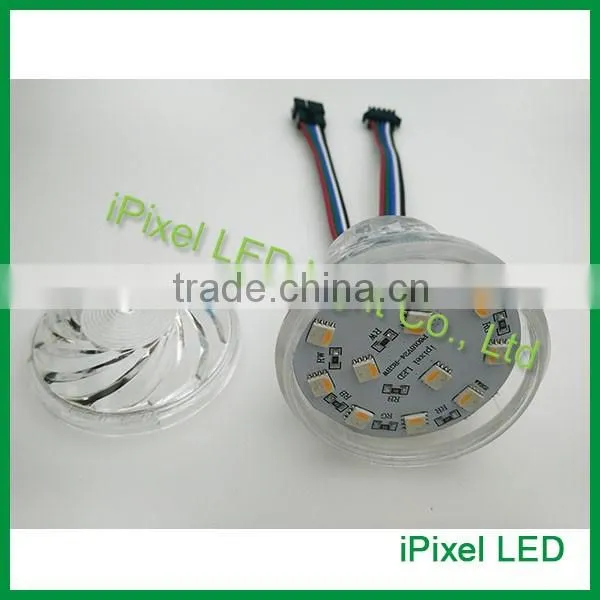

You can see from below picture, this 60mm 18leds/pcs led pixel with double PCB, the front is 12leds, the back side is 6leds, both side all with LED, make the pixel with 360 viewing angle.

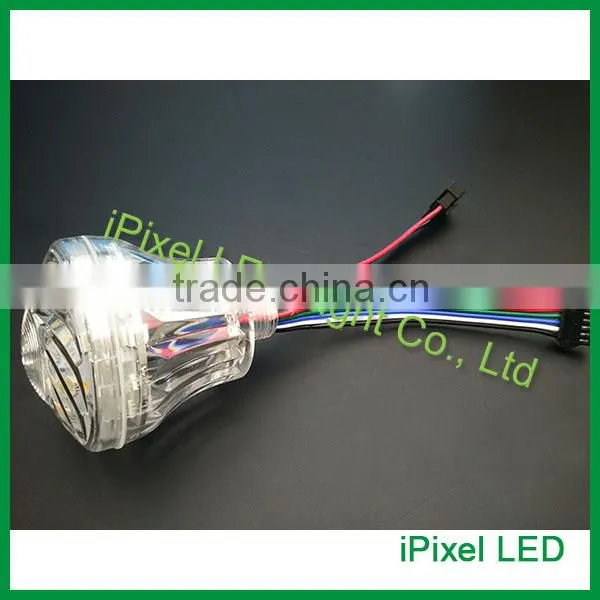

and it 's dc24v type, transparent spiral cover.

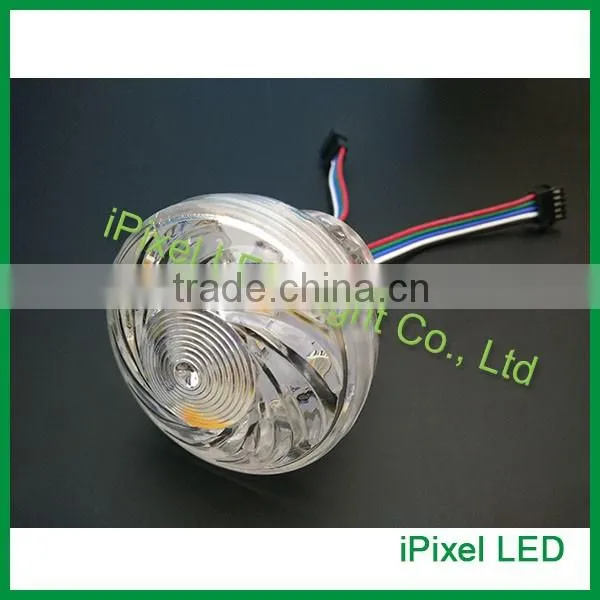

You can see, it with a very beautiful cover, and the base with a plastic screw for installation.

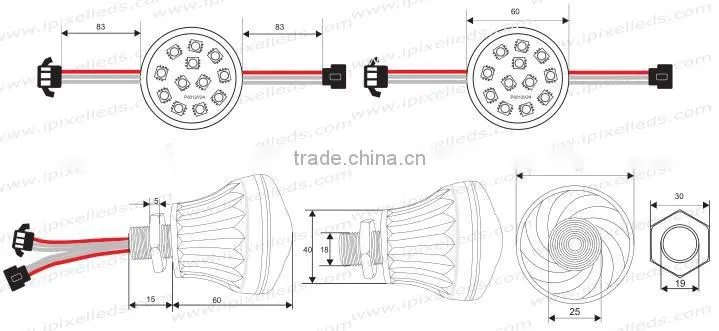

and you should punch the hole size with 19.1--35mm when use, and the base with 15mm length

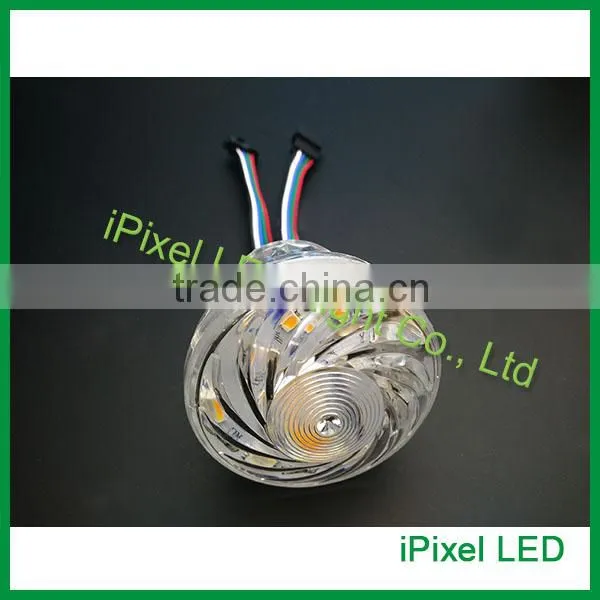

You can see the pixel's cap very clearly from this picture, it's transparet color , and with a cobochon shape.

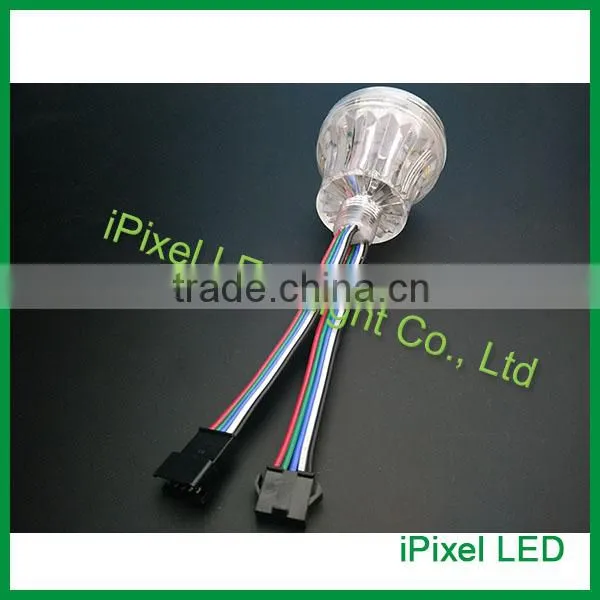

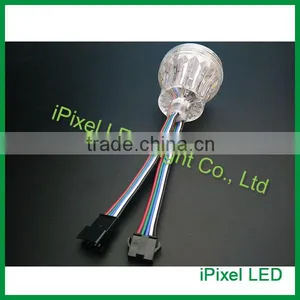

use 5pin JST female and male connectors

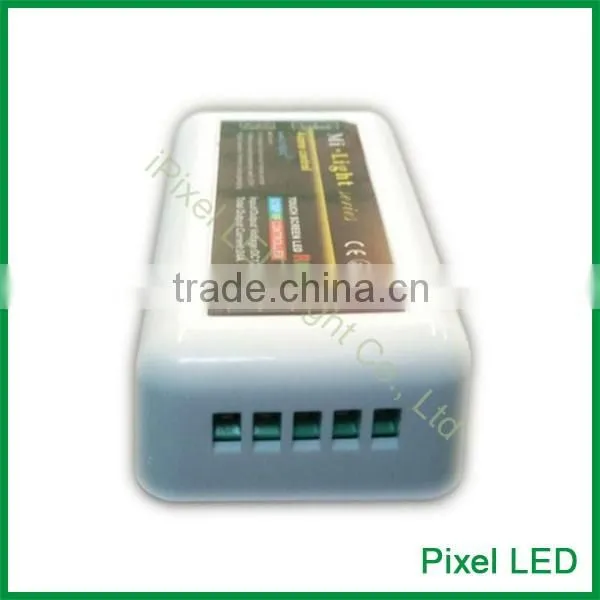

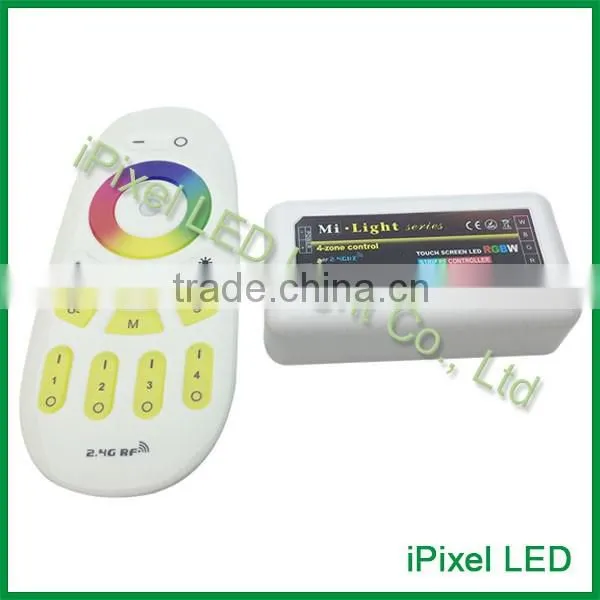

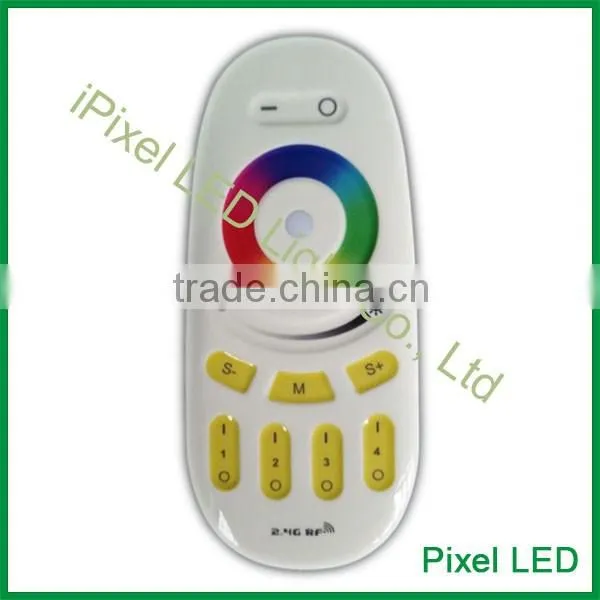

Controller: you just need to RGBW controller, then can realized some different effects as your needs
