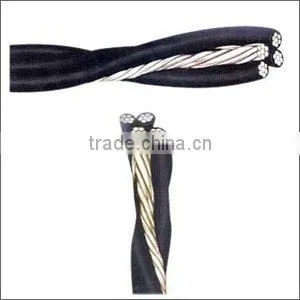

TRIPLEX--ABC Cable Insulated Overhead Cable
US$ 0.11 - 99.98
MOQ: 10 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
taifa
Model Number:
ABC cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminium Bundled Cable_ABC Duplex Overhead CableUS$ 0.11 - 99.98MOQ: 5000 Meters -
ABC Cable With ACSR AAC AAAC Core Aerial Bundled CableUS$ 0.11 - 99.98MOQ: 5000 Meters
-
Aerial Bundled Cable/ABC Cable(overhead Cable)US$ 0.11 - 99.98MOQ: 20 Kilometers
-
0.6/1KV Al/XLPE+ACSR Overhead Insulated ABC CableUS$ 0.11 - 99.98MOQ: 5000 Meters
-
ABC Aerial Bundle Cable (Service Drop Cable)US$ 0.11 - 99.98MOQ: 10 Kilometers
Place of Origin
Henan, China
Brand Name
taifa
Model Number
ABC cable
Insulation Material
XLPE
Type
Low Voltage
Application
Overhead
Conductor Material
Aluminum
Jacket
Other
Specification
Description
Conductor:AAC,AAAC,ACSR
Insulation: XLPE,PE, PVC
- It is a very novel concept for overhead power distribution when compared to the conventional bare conductor overhead distribution system.
- It is being desigined and manufactured & tested conforming to intiernational standard
- It is a fashional type aerial cable
Feature
1.higher safety and reliability
2.lower power losses and ultimate syetem economy by reducing installment, maintenance and operative cost
3.with fexibility for rerouting as changing demands
Application
- used for transmitting electric power overhad
- extensively used in rebuilding of urban and forest region electrified wire ntting
- it is ideal for rural distribution and specially attrative for difficult terrains such as hilly aeas, coastal areas
- best choice for power distribution in urban areas with narrow lances and by lanes.
Tips:
long -term operating temperature not exceed 70°c for polyethylene (PVC) insulated conductor and 90°c for cross-linked polyethylene (XLPE) insulated conductor
Technical data Based on Standard NF C 33-209
| ABC Cable With AAAC Messenger Core | |||||||
| SPEC. mm2 |
Conductor Structure | Insulation Material |
Insulation Thickness (mm) |
Approx. Overall Diameter (mm) |
Approx. Weight (kg/km) |
Packing Meters per Drum |
|
| Phase (Compacted AL) |
Neutral(Alloy) | ||||||
| (No./mm) | Aluminum (No./mm) |
||||||
| 1x16+1x16 | 7/1.72 | 7x1.72 | XLPE (HDPE) |
1.2 | 12.5 | 110.1 | 250-4000m |
| 1x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | 250-4000m | |
| 1x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229.0 | 250-3500m | |
| 1x50+1x50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | 250-3000m | |
| 1x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | 250-3000m | |
| 1x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | 250-3000m | |
| 2x16+1x16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | 250-4000m | |
| 2x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | 250-3500m | |
| 2x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | 250-3500m | |
| 2x50+1x50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | 250-3000m | |
| 2x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | 250-3000m | |
| 3x16+1x16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | 250-3500m | |
| 3x25+1x25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | 250-3500m | |
| 3x35+1x35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | 250-3000m | |
| 3x50+1x50 | 7/2.92 | 7/2.94 | 1.4 | 25.7 | 644.1 | 250-3000m | |
| 3x70+1x70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | 250-3000m | |
| 3x95+1x95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | 250-3000m | |
Note
Maximum operating temperature 90 degree
Maximum short-circuit temperature 250 degree.
Package & Delivery
wooden drums seaworthy or according to your requirements
delivery within 15 working days
